Instrument Cluster Schematics

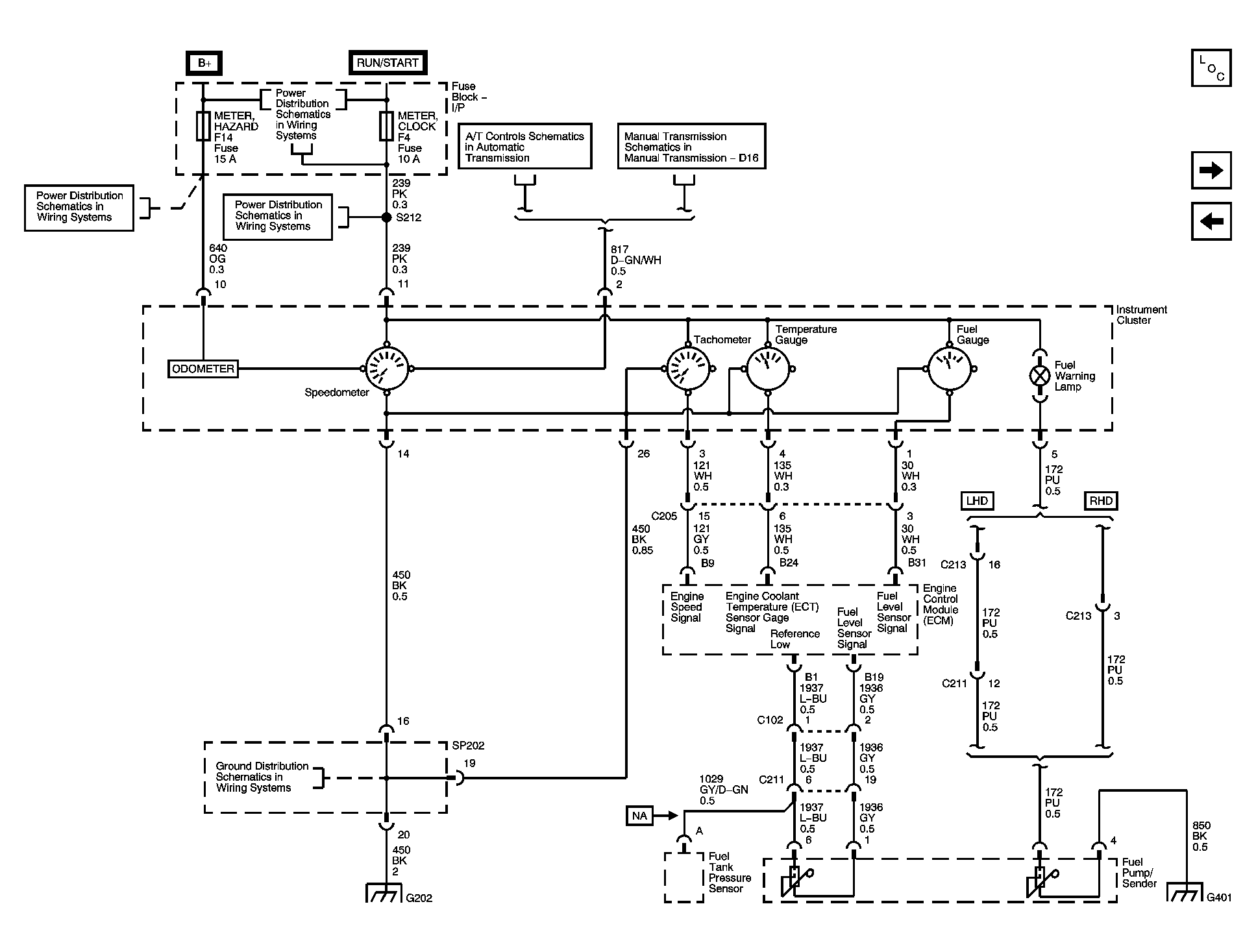

Fig 1: Instrument Panel Gages (1.2L) Schematic

Courtesy of GENERAL MOTORS CORP.

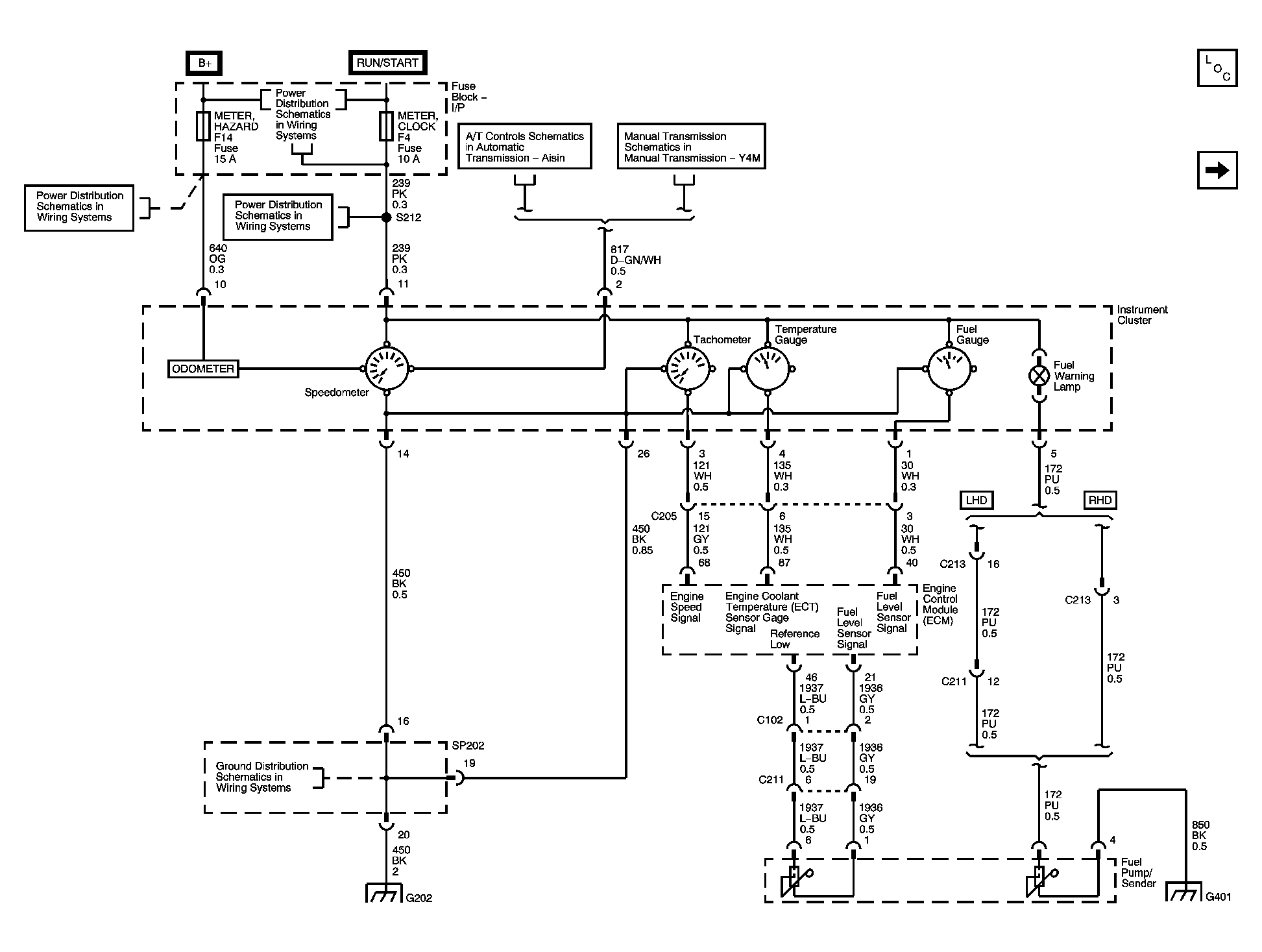

Fig 2: Instrument Panel Gages (1.4L/1.6L) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Panel Gages (1.5L) Schematic

Courtesy of GENERAL MOTORS CORP.

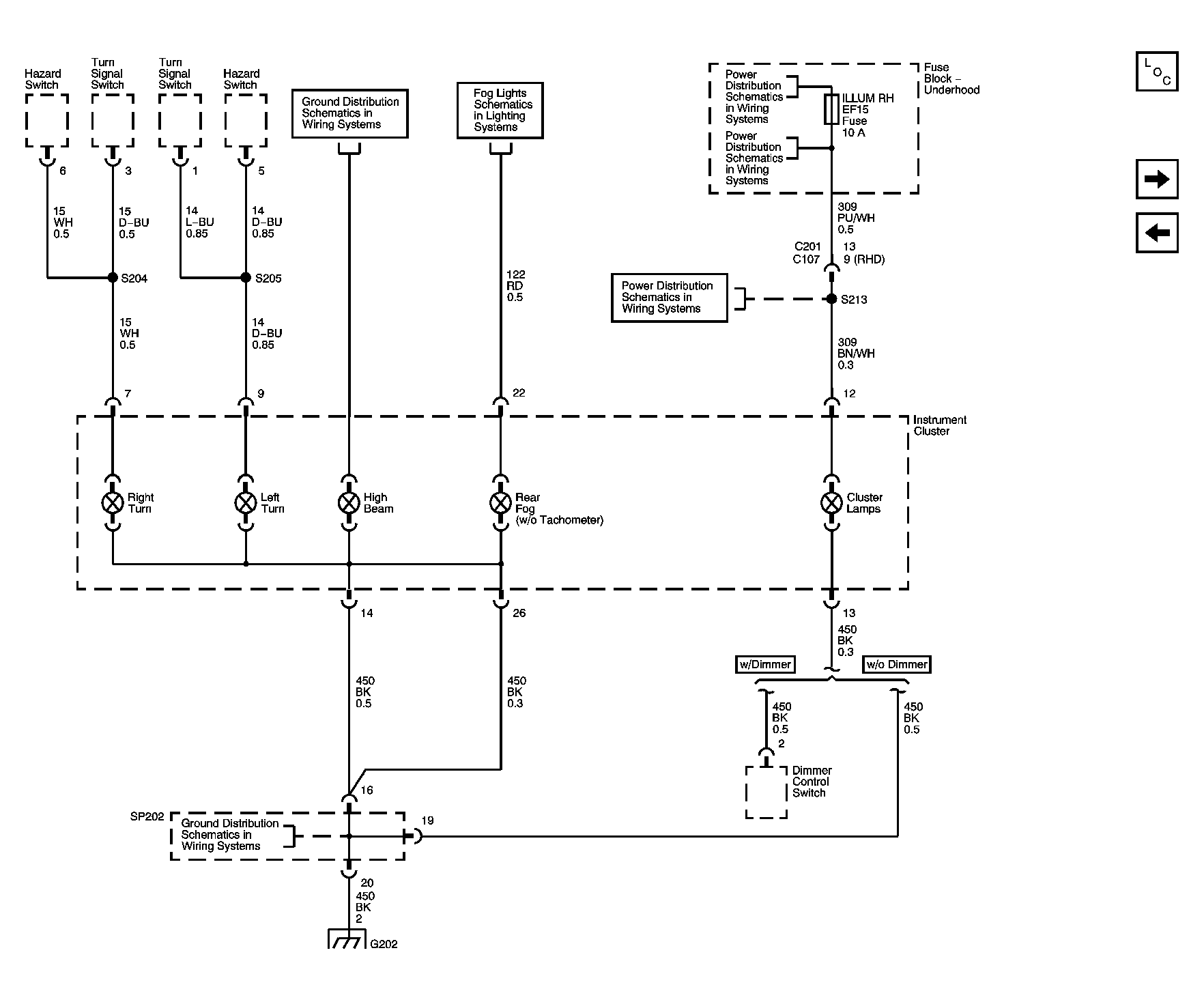

Fig 4: Indicator Lamps and Illumination Schematic

Courtesy of GENERAL MOTORS CORP.

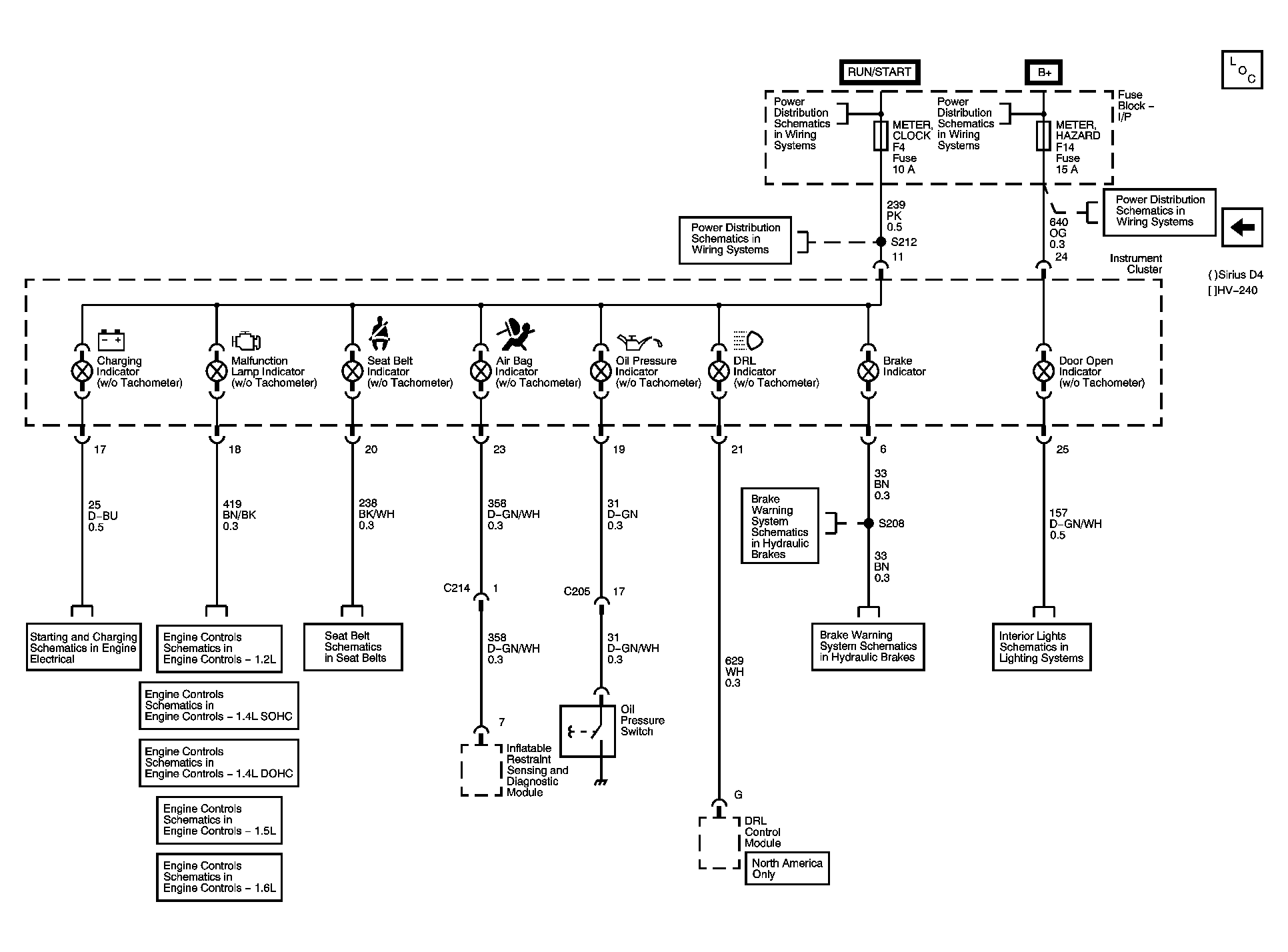

Fig 5: Warning Indicators W/O Tachometer Schematic

Courtesy of GENERAL MOTORS CORP.
