Driver Information System Schematics

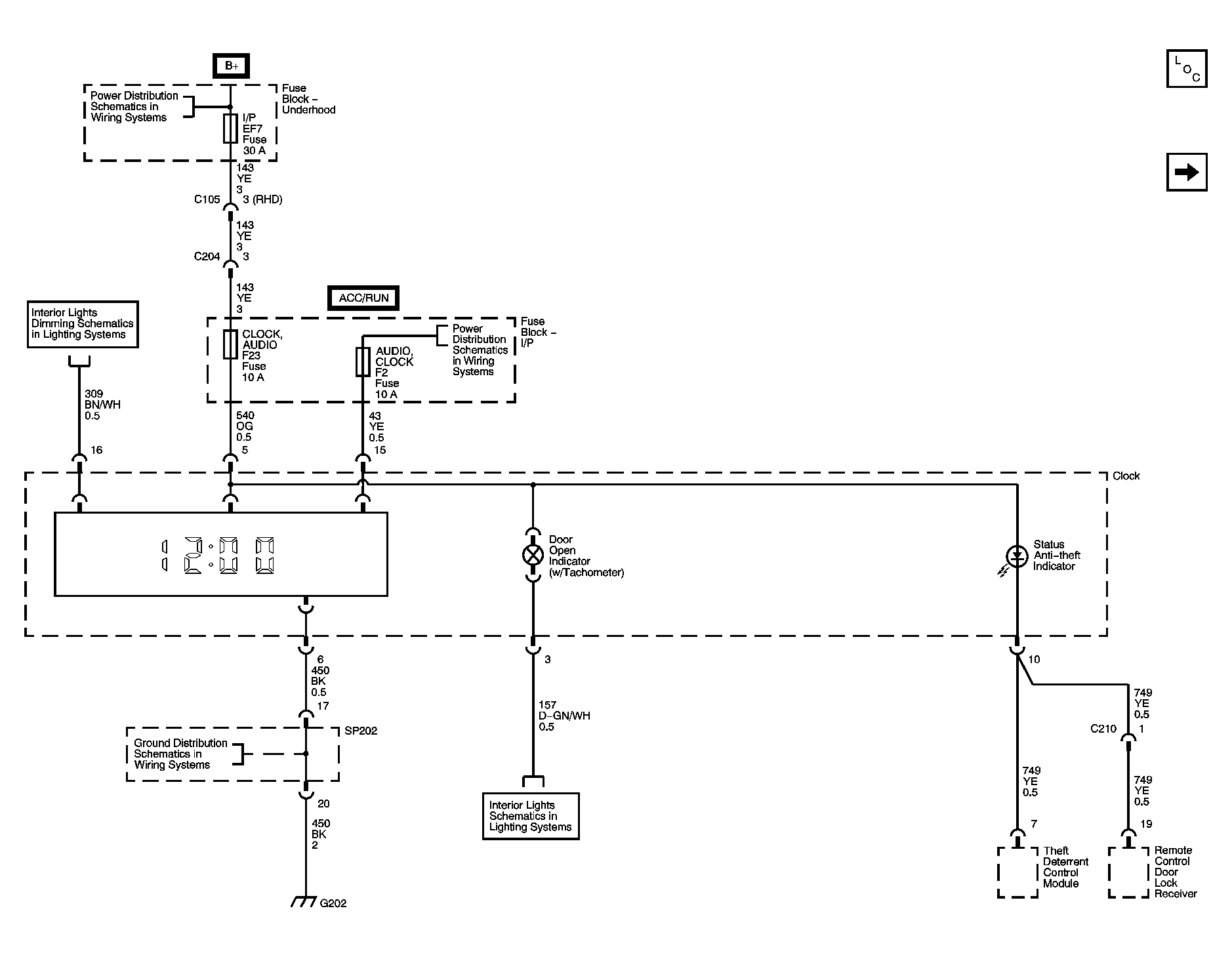

Fig 1: Power, Grounds and Indicators Schematic
GM1257919Courtesy of GENERAL MOTORS CORP.

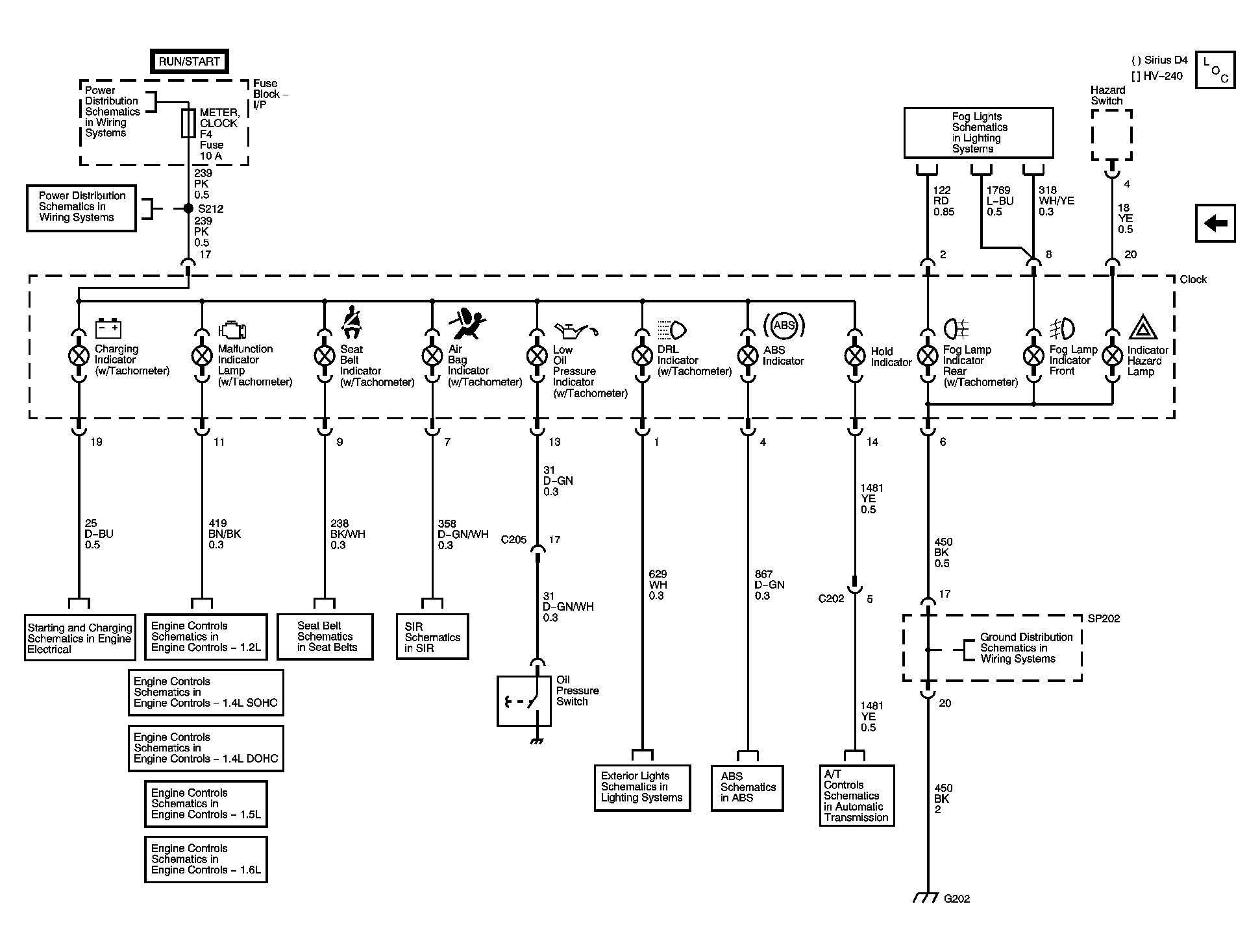

Fig 2: Warning Indicators with Tachometer Schematic
GM1257918Courtesy of GENERAL MOTORS CORP.
