Audible Warnings Schematics

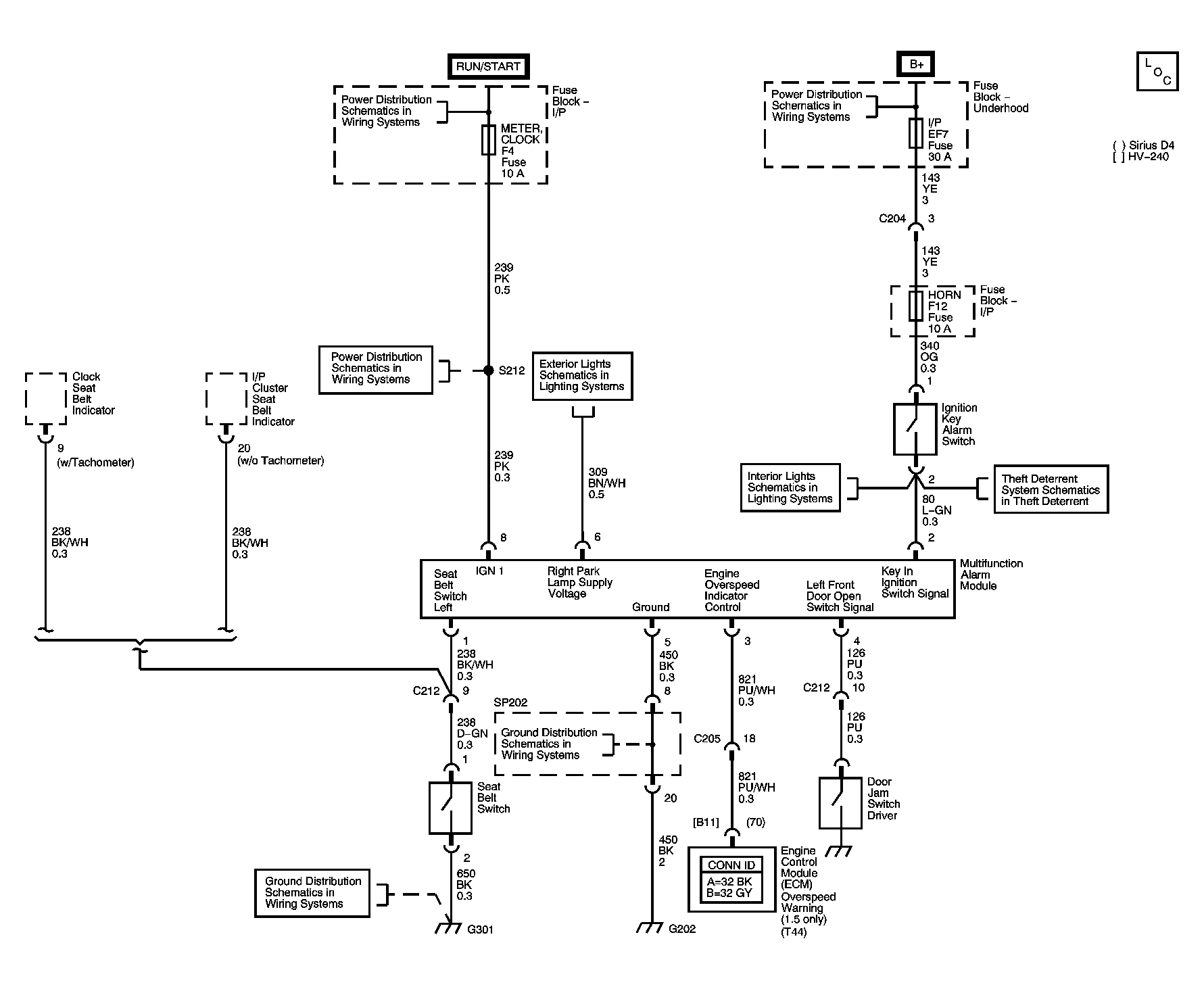

Fig 1: Multifunction Alarm Module Schematic
Courtesy of GENERAL MOTORS CORP.
