UNDERHOOD Fuse Block
NOTE:

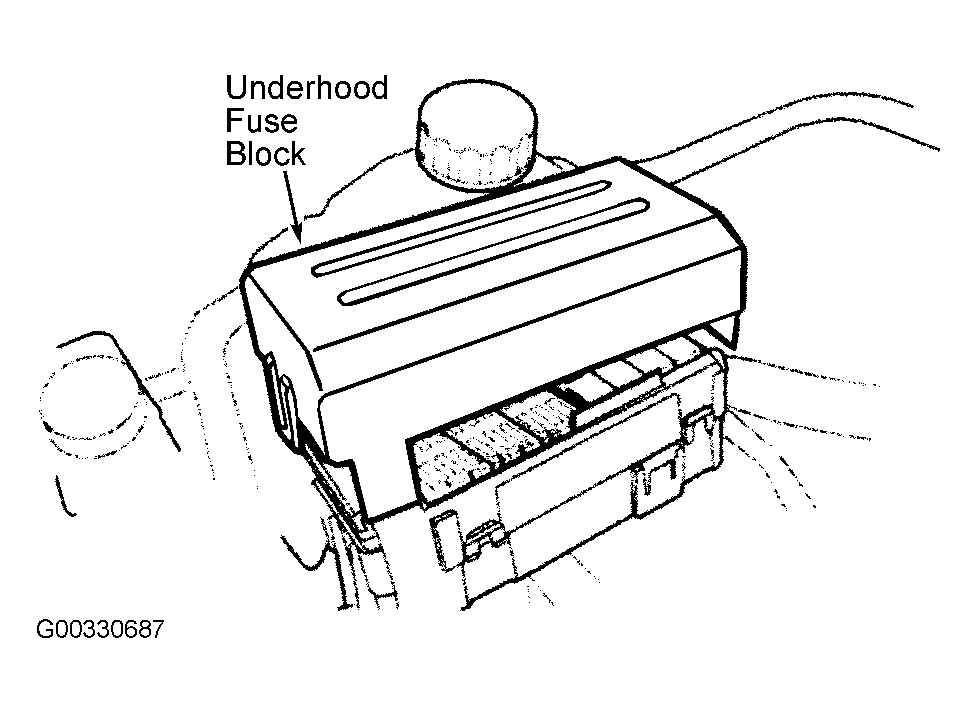

Underhood fuse block is located in the left front of the engine compartment, near the battery. See Fig 1.

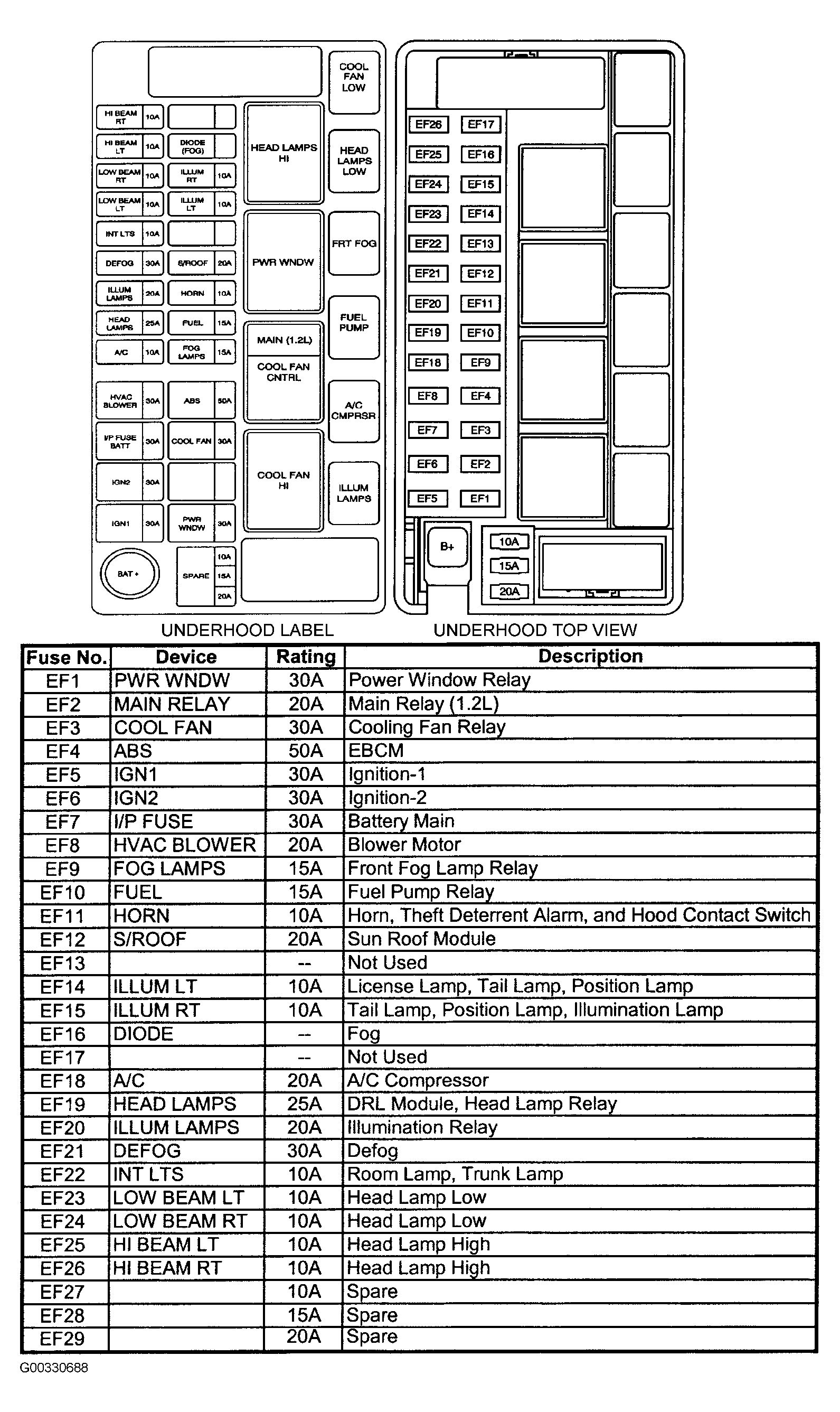

UNDERHOOD FUSE BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Cooling Fan Relay |
| Head Lamps High Relay |
| Head Lamps Low Relay |
| Power Window Relay |
| Front Fog Relay |
| Fuel Pump Relay |
| Cooling Fan Control Relay |
| A/C Compressor Relay |
| Cooling Fan High Relay |
| Illumination Lamps Relay |
