Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on the driver side of the I/P, in the door opening. See Fig 1.

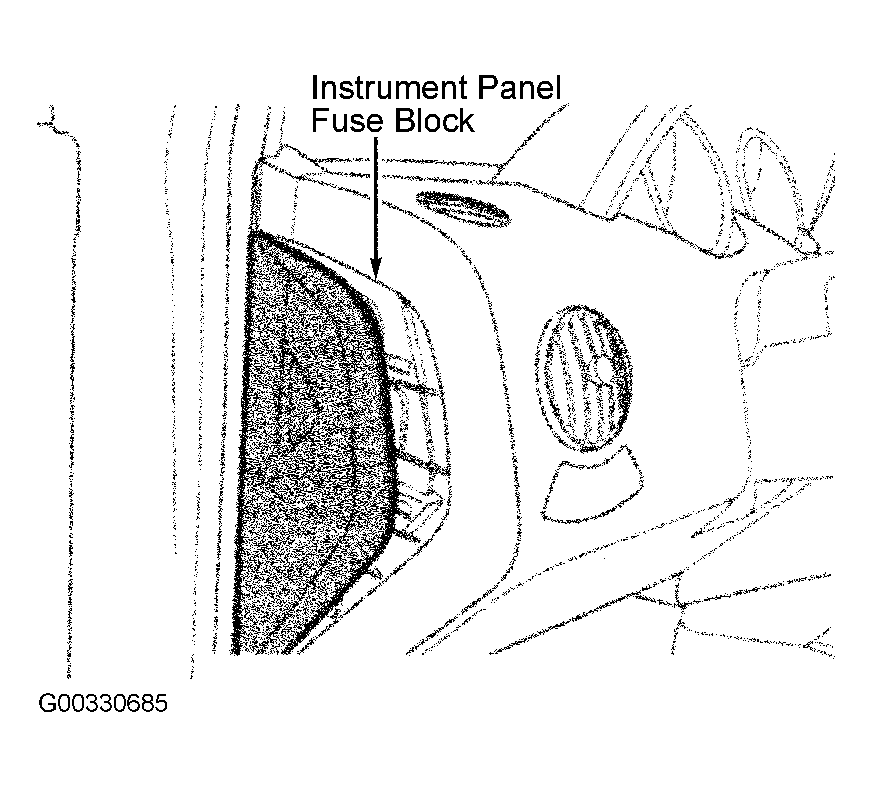

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

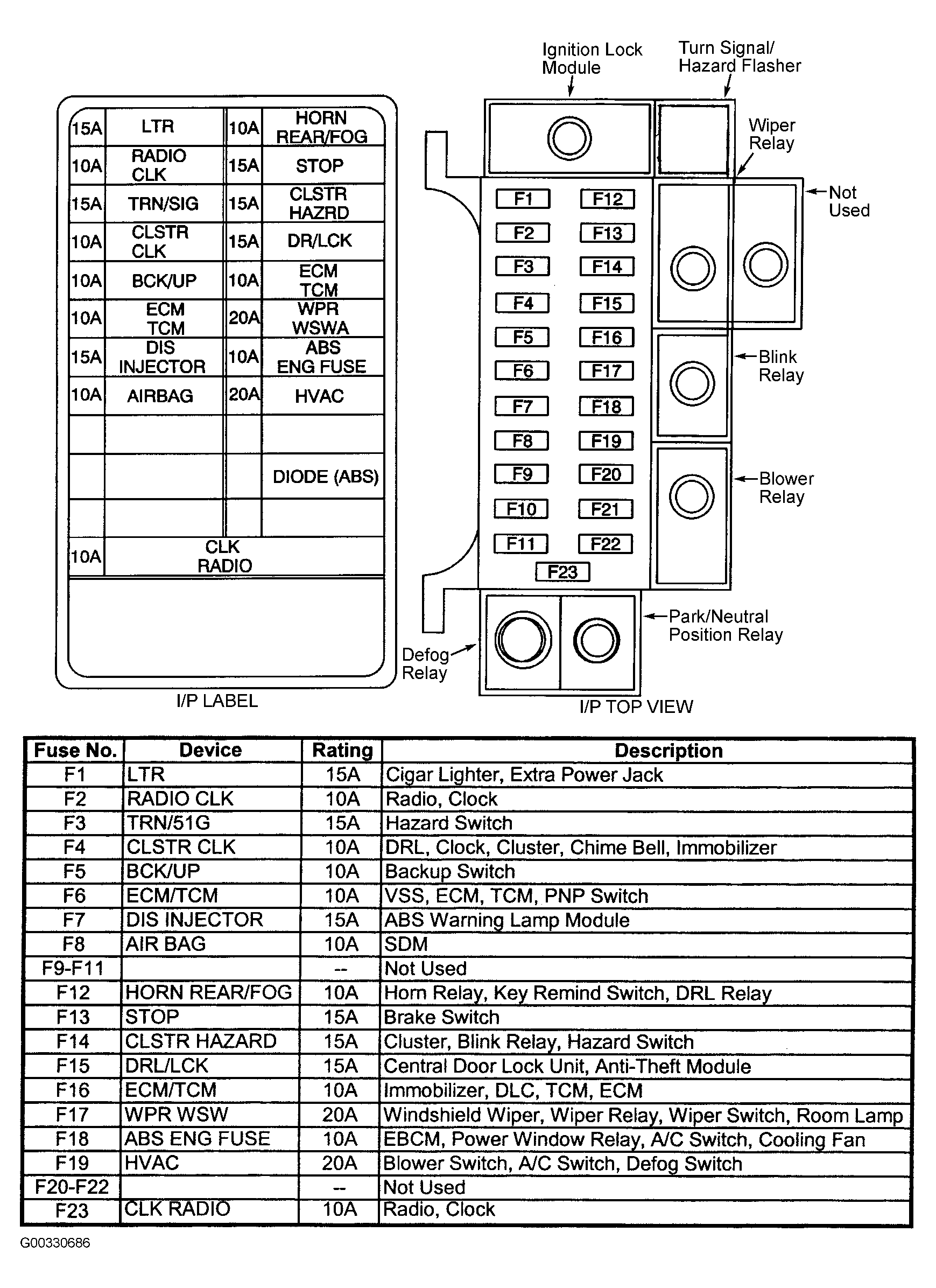

Fig 2: Identifying Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

INSTRUMENT PANEL FUSE BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal / Hazard Flasher Relay
Wiper Relay
Blink Relay
Blower Relay
Park/Neutral Position Relay
Defog Relay
