Fusible Links

For information on fusible links and repairing them, refer to illustration. See Fig 1.

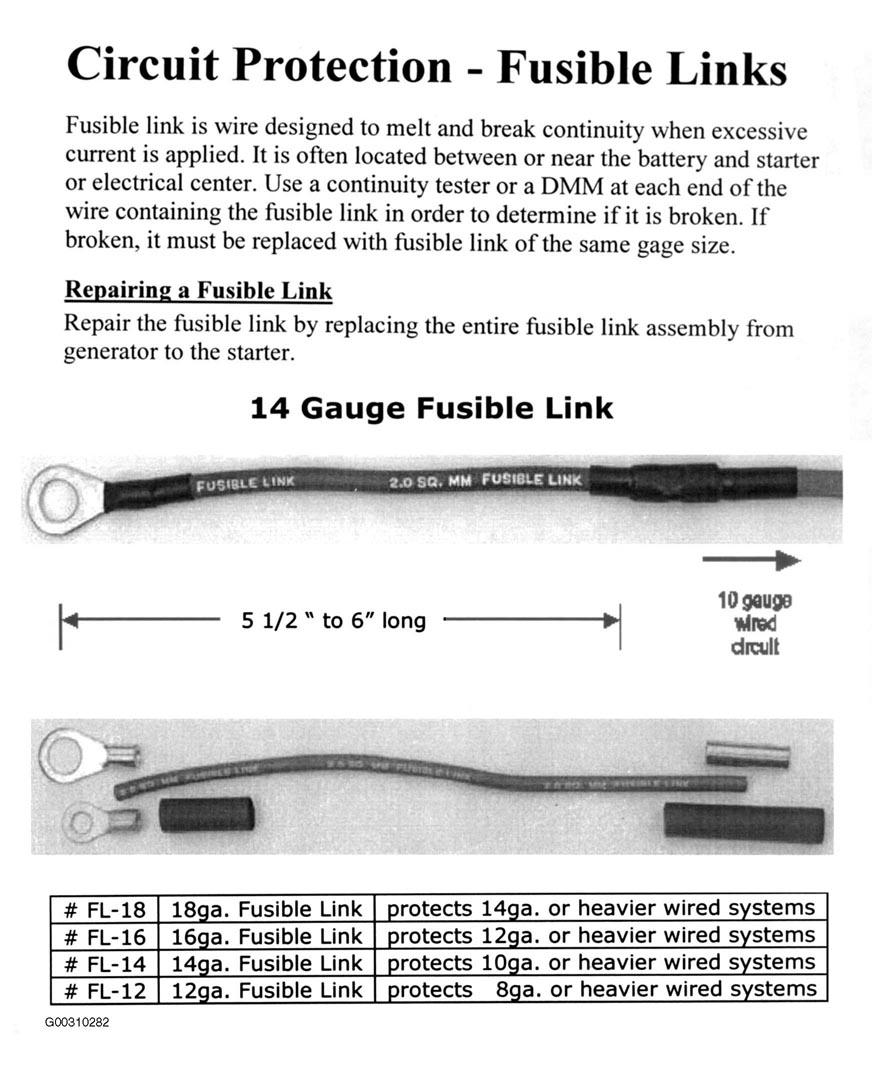

Fig 1: Repairing Fusible Links
G00310282Courtesy of GENERAL MOTORS CORP.
