Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Schematic and Routing Diagrams
>>
ABS Schematics (DBC7)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ABS Schematics (DBC7)

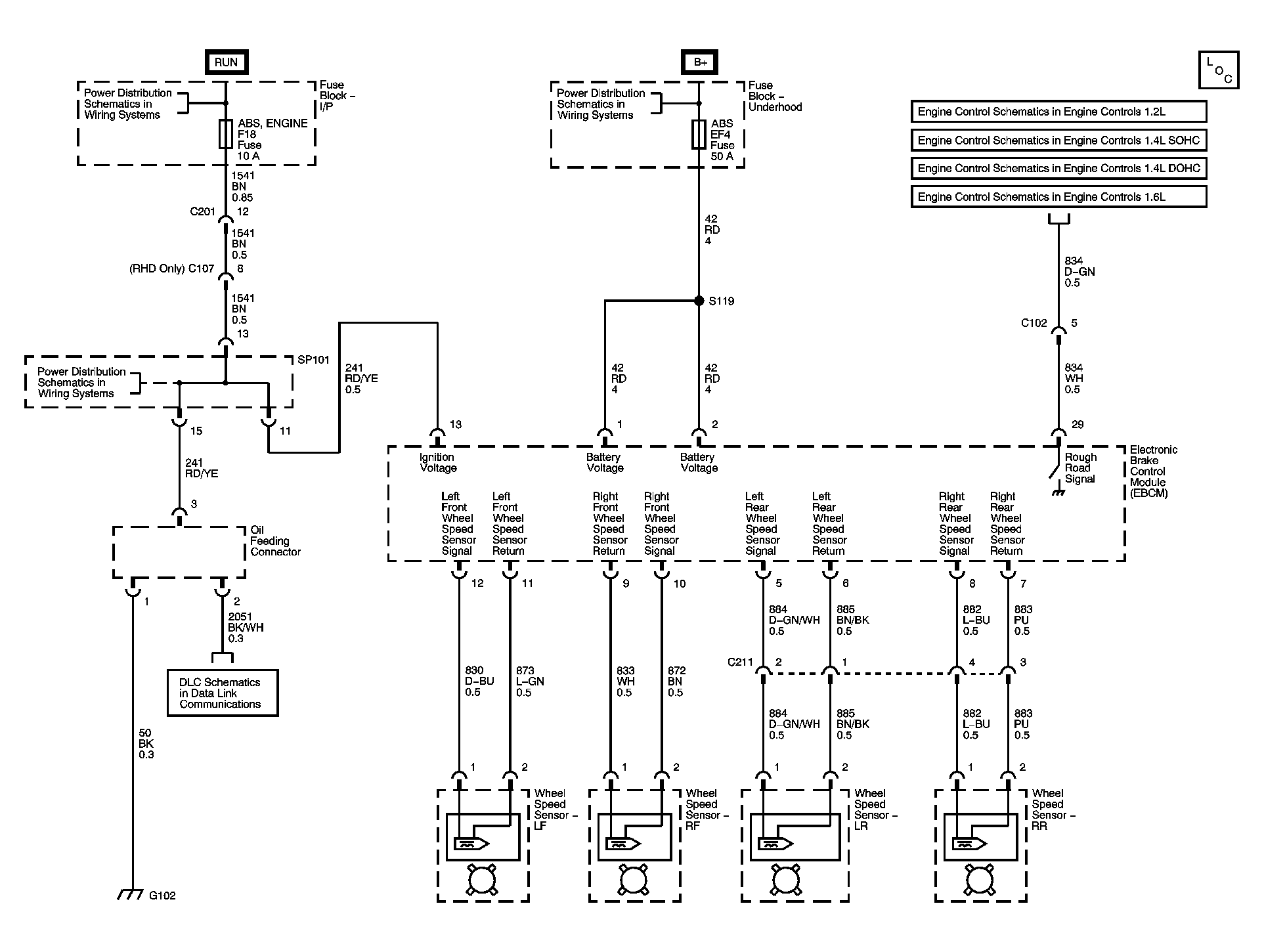

Fig 1: ABS Schematic (DBC7)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
