Outside Mirror Schematics

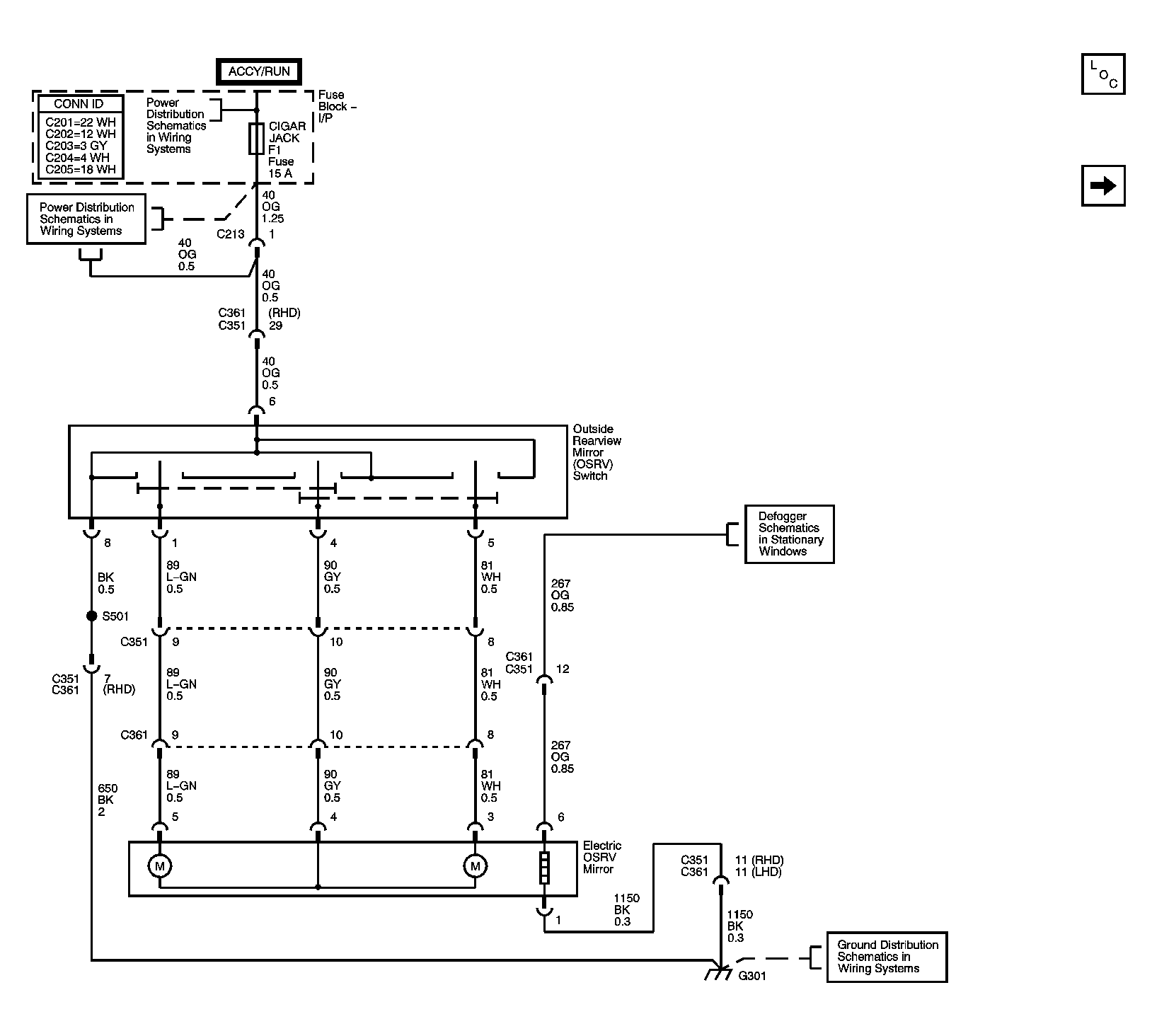

Fig 1: Power Mirrors - Passenger Only DBK Schematics
GM1257922Courtesy of GENERAL MOTORS CORP.

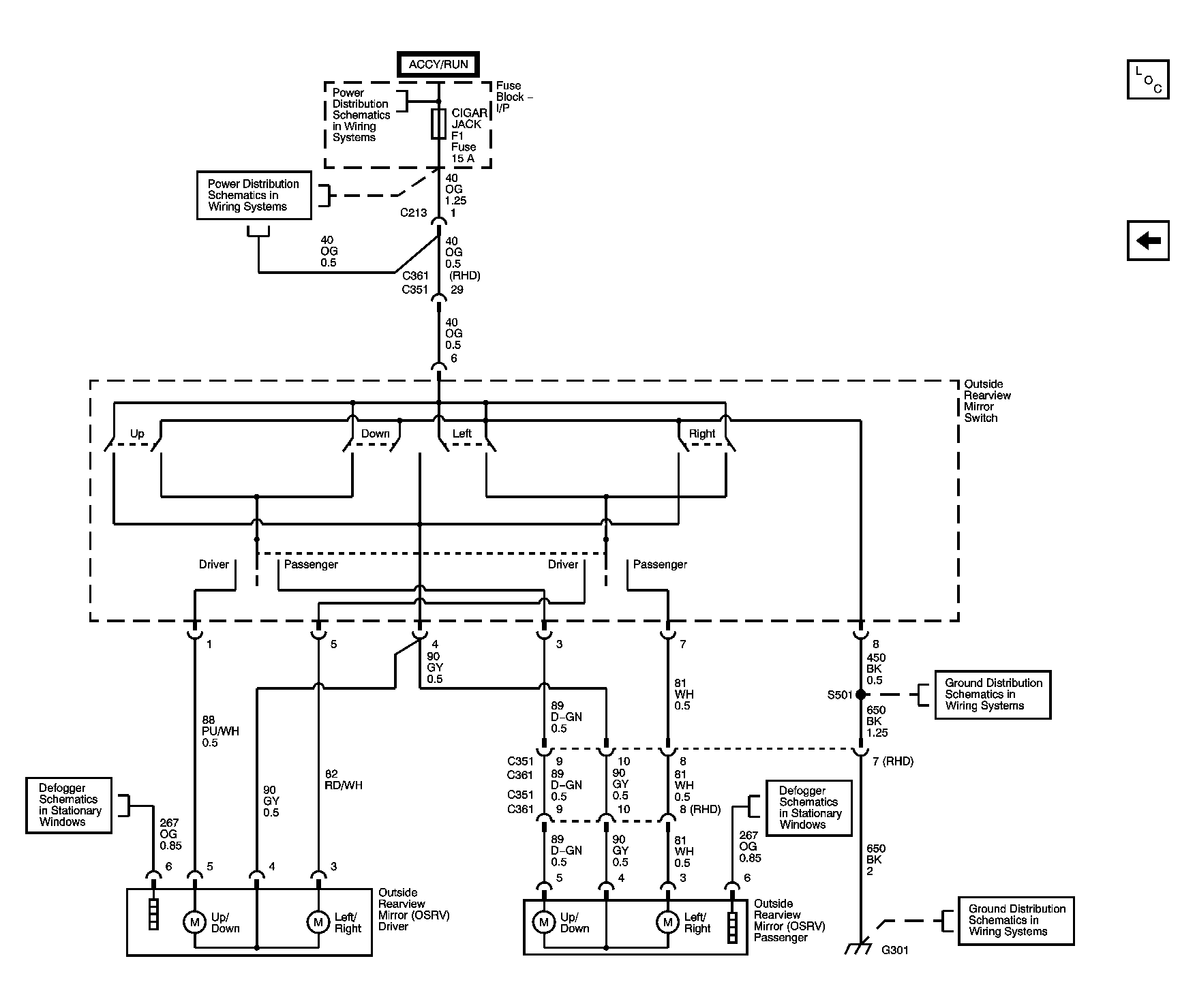

Fig 2: Power Mirrors - Dual Schematics
GM1376493Courtesy of GENERAL MOTORS CORP.
