Removal Procedure

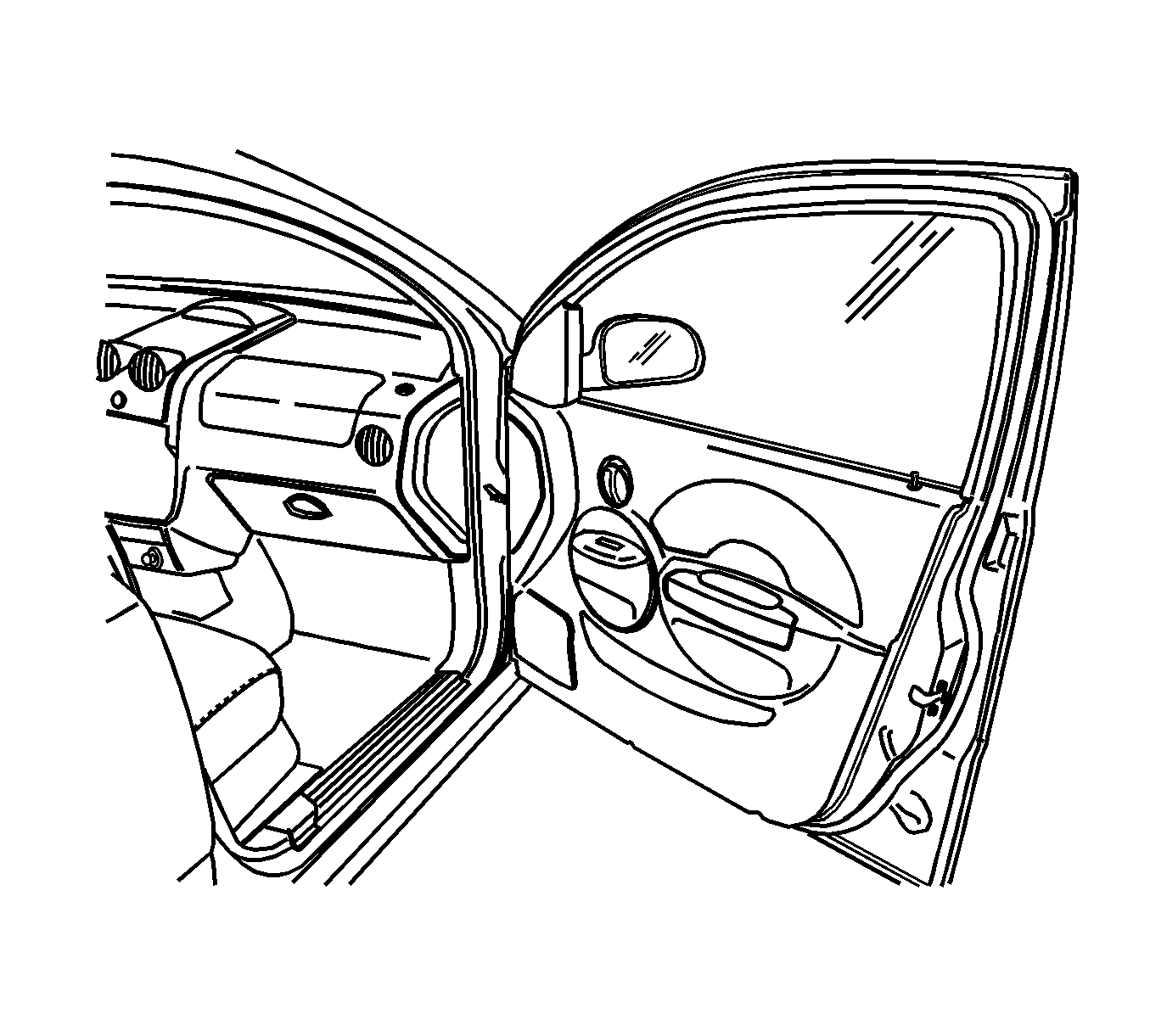

    Fig 1: View of Front Door Weatherstrip
    GM1248278Courtesy of GENERAL MOTORS CORP.
  1. Remove the door hold open link-to-body bolt.
  2. Remove the door weatherstrip.
