Removal Procedure

Fig 1: View of Rear Door

GM1248284

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Remove the door seal trim. Refer to Water Deflector Replacement - Door .
Disconnect the inside door handle and the lock rods.

Fig 2: View of Door Handle and Lock Rods

GM1248282

Courtesy of GENERAL MOTORS CORP.

Disconnect the outside door handle and the lock rods.

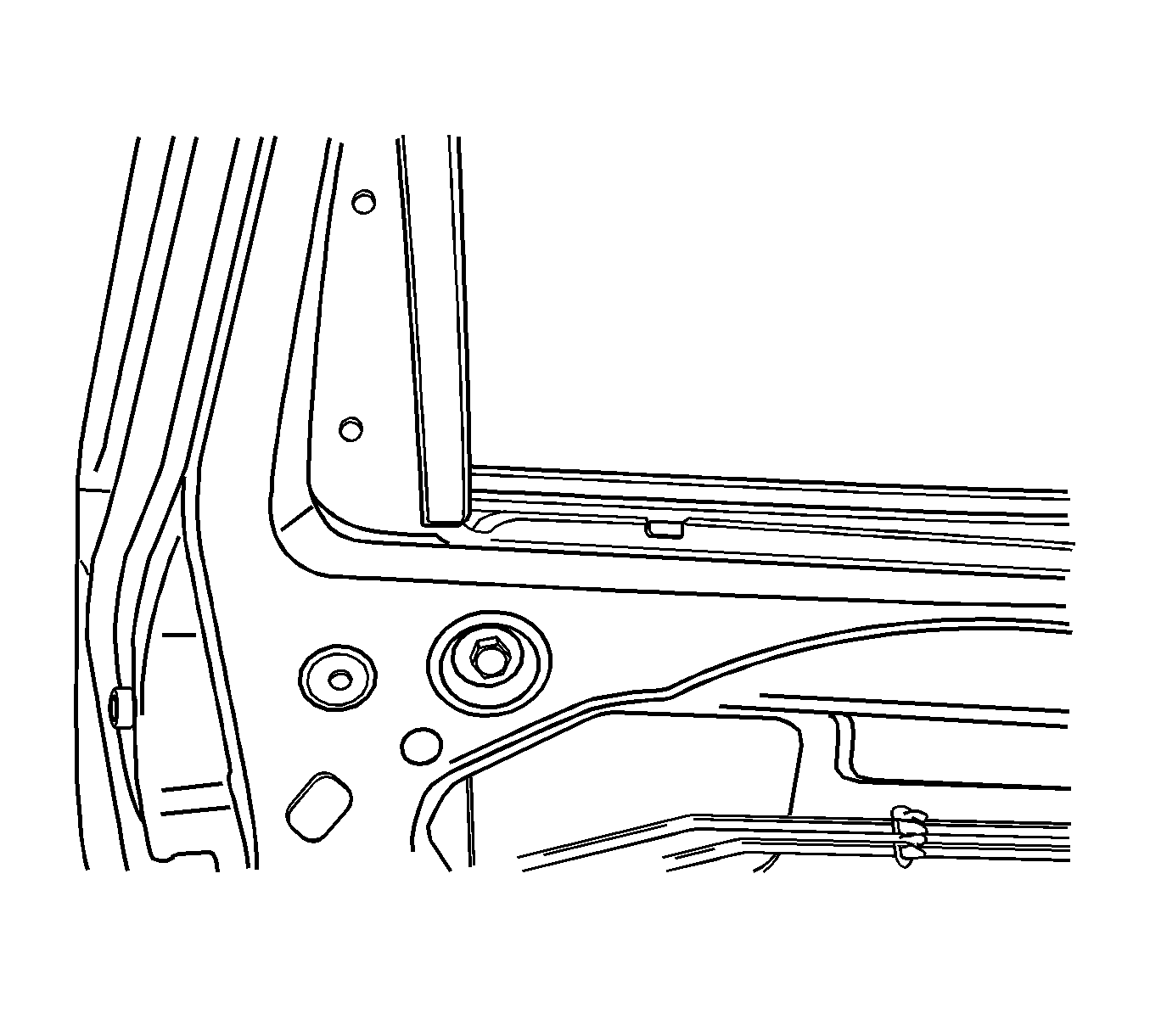

Fig 3: View of Bolts and Guide Rail

GM1248285

Courtesy of GENERAL MOTORS CORP.

Remove the bolts and the guide rail.

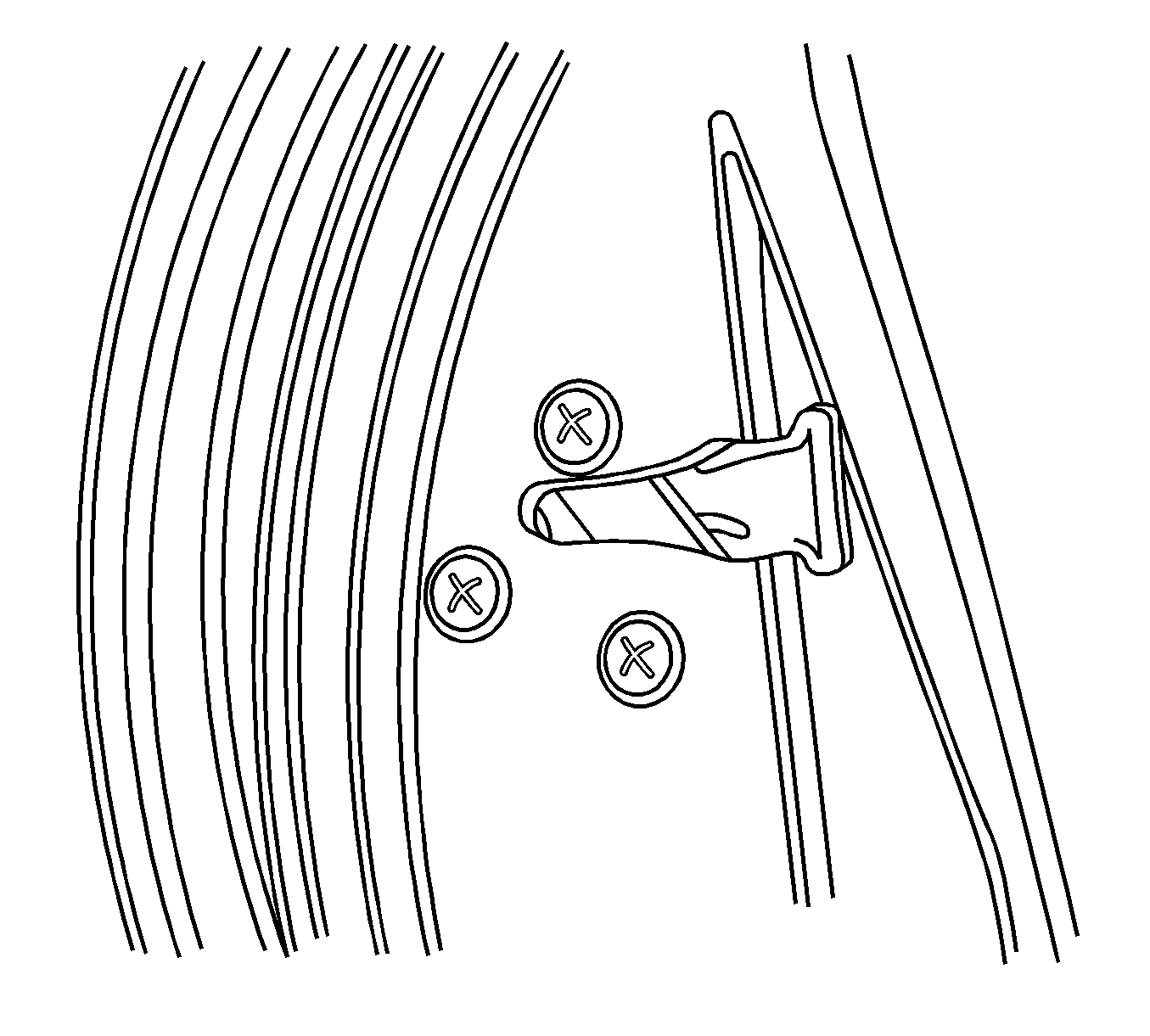

Fig 4: View of Screws and Lock

GM1248286

Courtesy of GENERAL MOTORS CORP.

Remove the screws and the lock.
Disconnect the electrical connector.
Disconnect the lock rods at the lock.
