Removal Procedure

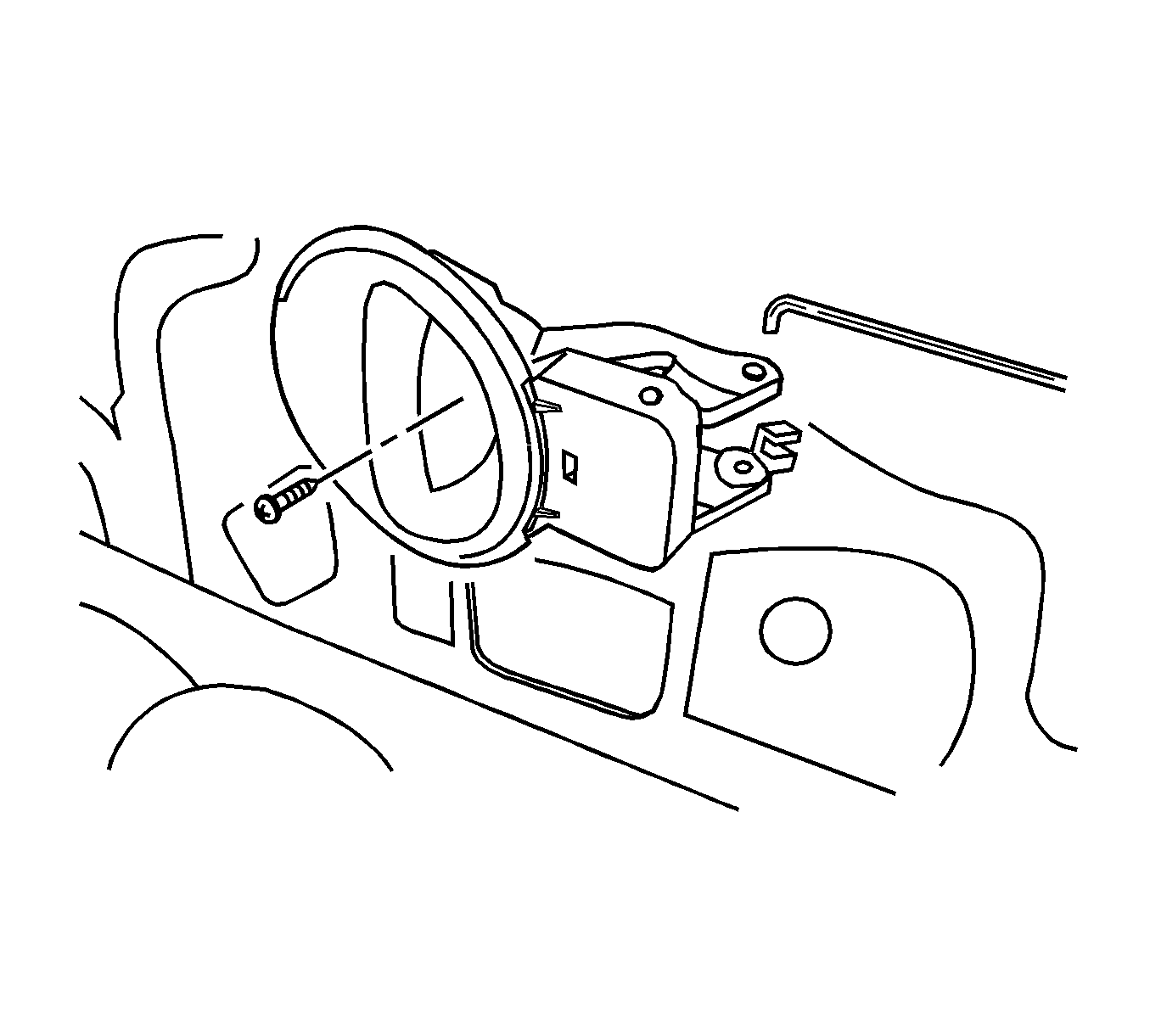

    Fig 1: View of Inside Door Handle and Lock Rods
    GM1248287Courtesy of GENERAL MOTORS CORP.
  1. Remove the door seal trim. Refer to Water Deflector Replacement - Door .
  2. Remove the screw securing the door handle to the door.
  3. Disconnect the inside door handle and the lock rods.
