Measurements - Underbody (Notchback)

Fig 1: Measuring Underbody (Notchback) Dimensions - 1 of 4

GM1251606

Courtesy of GENERAL MOTORS CORP.

Measurements - Underbody (Notchback, 1 of 4)

Points	Dimensions (mm)	Dimensions (in)
A	374 mm	14.72 in
B	292.1 mm	11.5 in
C	2,480 mm	97.63 in
D	313.1 mm	12.32 in
E	786.2 mm	30.95 in
F	411.4 mm	16.19 in
G	474.8 mm	18.69 in
H	1,128.8 mm	44.44 in
I	490 mm	19.29 in
J	432.6 mm	17.03 in
K	218 mm	8.6 in

Fig 2: Measuring Underbody (Notchback) Dimensions - 2 of 4

GM1251607

Courtesy of GENERAL MOTORS CORP.

Measurements - Underbody (Notchback, 2 of 4)

Points	Dimensions (mm)	Dimensions (in)
A	20 mm	0.78 in
B	12 mm	0.47 in
C	11 mm	0.43 in
D	16 mm	0.62 in
E	10 mm	0.39 in
F	14 mm	0.55 in

Fig 3: Measuring Underbody (Notchback) Dimensions - 3 of 4

GM1308750

Courtesy of GENERAL MOTORS CORP.

Measurements - Underbody (Notchback, 3 of 4)

Points	Dimensions (mm)	Dimensions (in)
A	744.4	29.31
B	909	35.79
C	1,062.6	41.81
D	657	25.87
E	1,147.6	45.16
F	1,128	44.41
G	1,152	45.35
H	1,186.7	46.69
I	1,199.5	47.20
J	1,240	48.82
K	1,458.2	57.40
L	1,271.9	50.04
M	654	25.75
N	270	10.63
O	1,113.8	43.82
P	1,015.2	39.96
Q	935.4	36.81
R	595	23.43

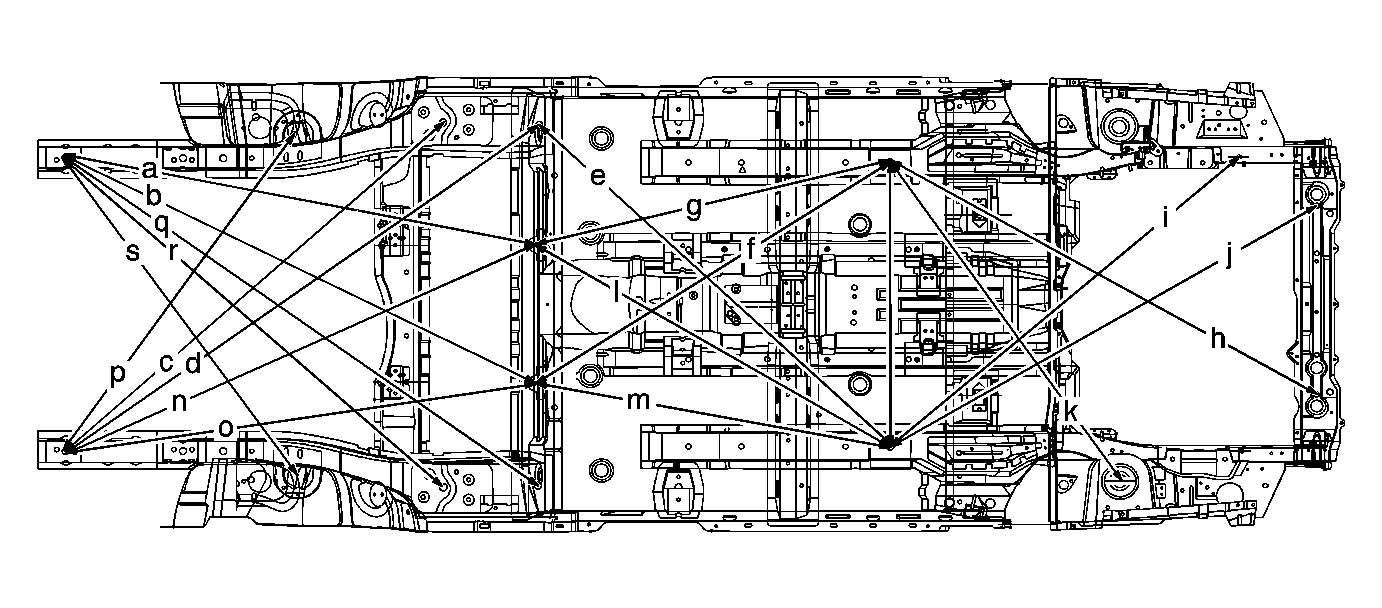

Fig 4: Measuring Underbody (Notchback) Dimensions - 4 of 4

GM1251611

Courtesy of GENERAL MOTORS CORP.

Measurements - Underbody (Notchback, 4 of 4)

Points	Dimensions (mm)	Dimensions (in)
A	1,373 mm	54.05 in
B	1,519 mm	59.8 in
C	1,491 mm	58.7 in
D	1,699 mm	66.88 in
E	1,458.2 mm	57.4 in
F	1,271.9 mm	50.07 in
G	1,199.5 mm	47.22 in
H	1,479 mm	58.22 in
I	1,421.2 mm	56 in
J	1,491.5 mm	58.72 in
K	1,364.8 mm	53.73 in
L	1,240 mm	48.81 in
M	1,186.7 mm	46.72 in
N	1,487 mm	58.54 in
O	1,361 mm	53.58 in
P	1,182 mm	46.53 in
Q	1,706 mm	67.16 in
R	1,498 mm	59 in
S	1,191 mm	46.88 in
