1 of 2

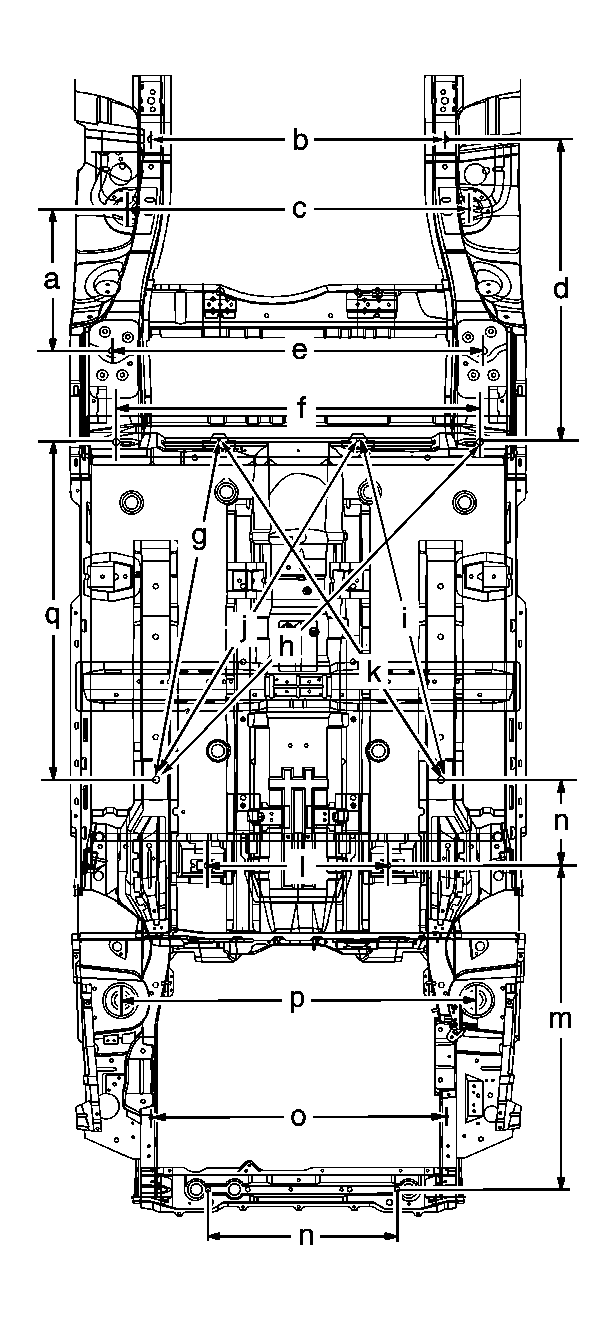

Fig 1: Measuring Underbody (Hatchback) Dimensions - 1 of 5

GM1308752

Courtesy of GENERAL MOTORS CORP.

Measurements - Underbody (Hatchback, 1 of 5)

Points	Dimensions (mm)	Dimensions (in)
A	744.4	29.31
B	909	35.79
C	1,062.6	41.81
D	1,016	39.96
E	1,147.6	45.16
F	1,128	44.41
G	1,186.7	46.69
H	1,199.5	47.20
I	1,458.2	57.40
J	1,240	48.82
K	1,271.9	50.04
L	654	25.75
M	1,015.2	36.96
N	595	23.43
O	935.4	36.81
P	1,113.8	43.82
Q	1,152	45.35
