Windshield and Rear Glass (Hatch Back)

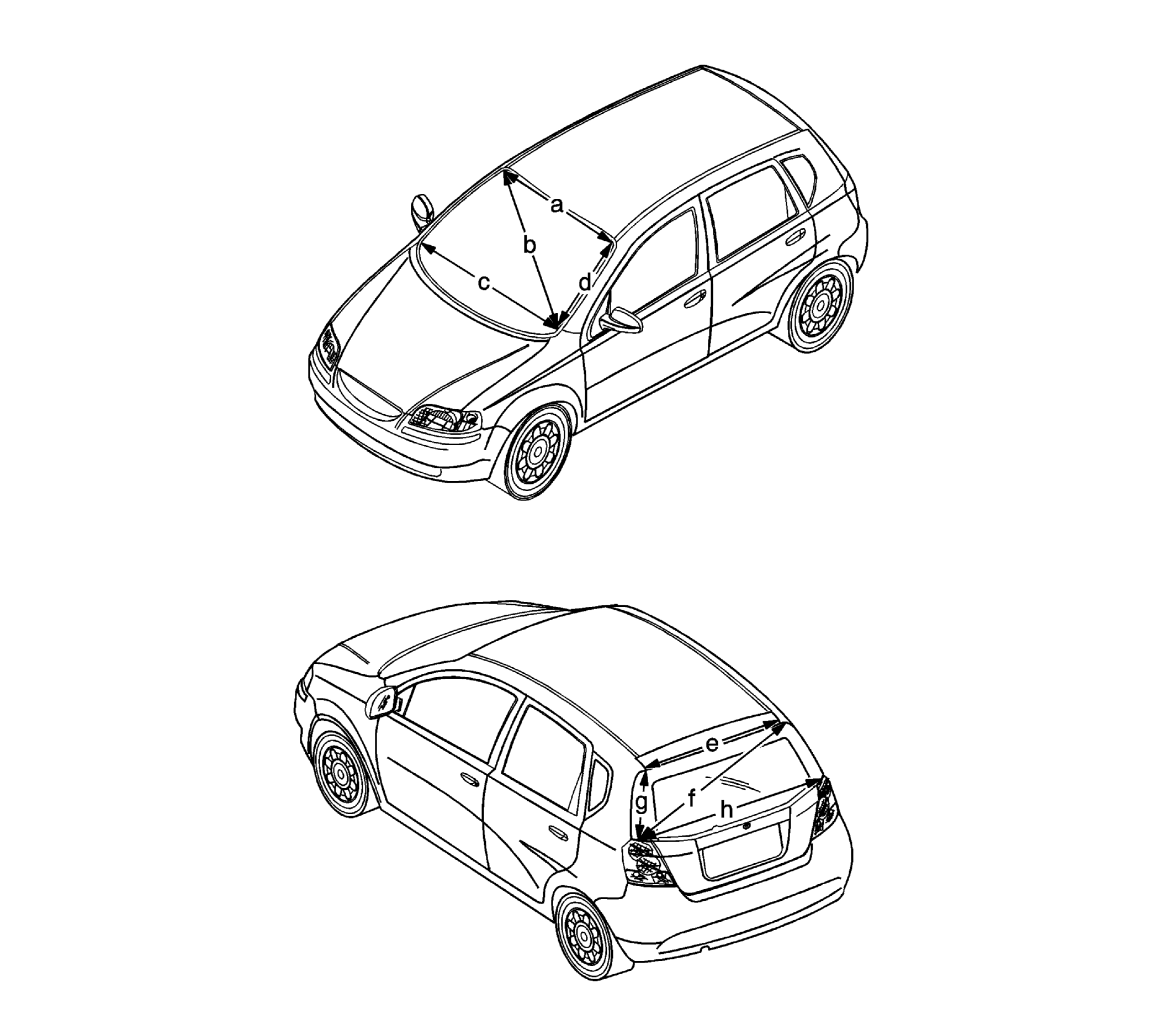

Dimensions of Windshield and Rear Glass (Hatch Back) Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 1,106 | 43.54 |
| B | 1,426 | 56.14 |
| C | 1,398 | 54.84 |
| D | 703 | 27.68 |
| E | 1,021 | 40.20 |
| F | 1,226 | 48.27 |
| G | 348 | 15.12 |
| H | 1,328 | 52.28 |
