Side Outer (Hatch Back)

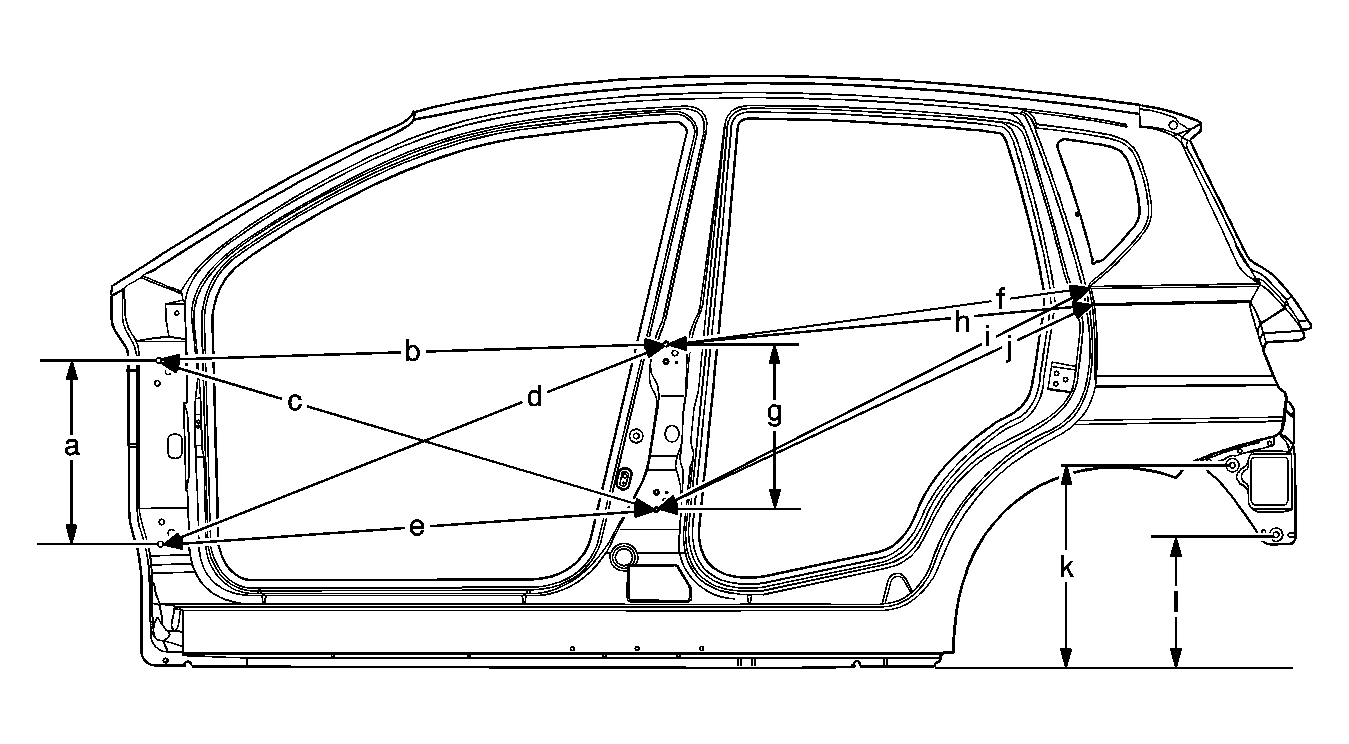

Dimensions of Side Outer (Hatch Back) Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 399.0 | 15.70 |
| B | 1,100.4 | 43.31 |
| C | 1,127.3 | 44.37 |
| D | 1,174.6 | 46.22 |
| E | 1,079.1 | 42.48 |
| F | 930.1 | 36.61 |
| G | 345.4 | 13.58 |
| H | 932.6 | 36.69 |
| I | 1,055.9 | 41.54 |
| J | 1,043.3 | 41.06 |
| K | 423.4 | 16.65 |
| L | 272.7 | 10.71 |
