Notch Back

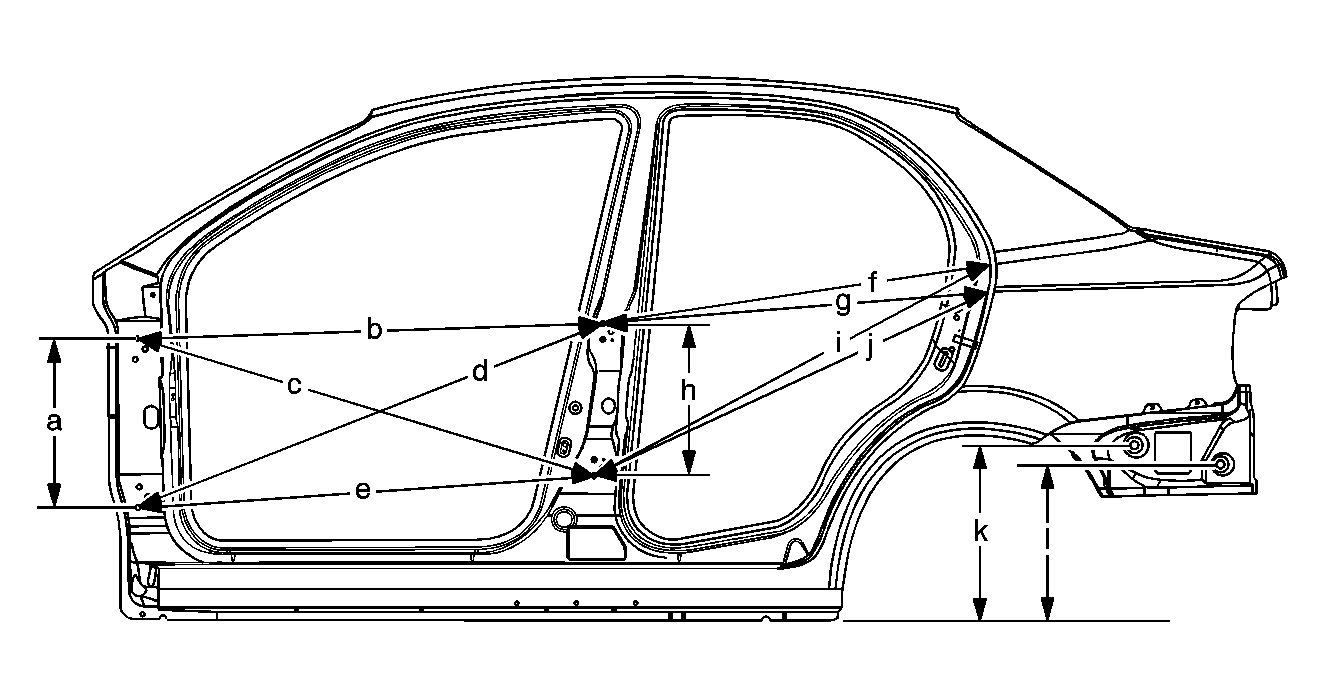

Dimensions of Notch Back Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the designated position and opposite position shown in illustrations, outside-to-outside.
|
||
| A | 399.0 | 15.70 |
| B | 1100.4 | 43.31 |
| C | 1127.3 | 44.37 |
| D | 1174.6 | 46.22 |
| E | 1079.1 | 42.48 |
| F | 1036.7 | 40.79 |
| G | 1025.1 | 40.35 |
| H | 345.4 | 13.58 |
| I | 1160.6 | 45.67 |
| J | 1131.5 | 44.53 |
| K | 395.3 | 15.55 |
| L | 345.8 | 13.58 |

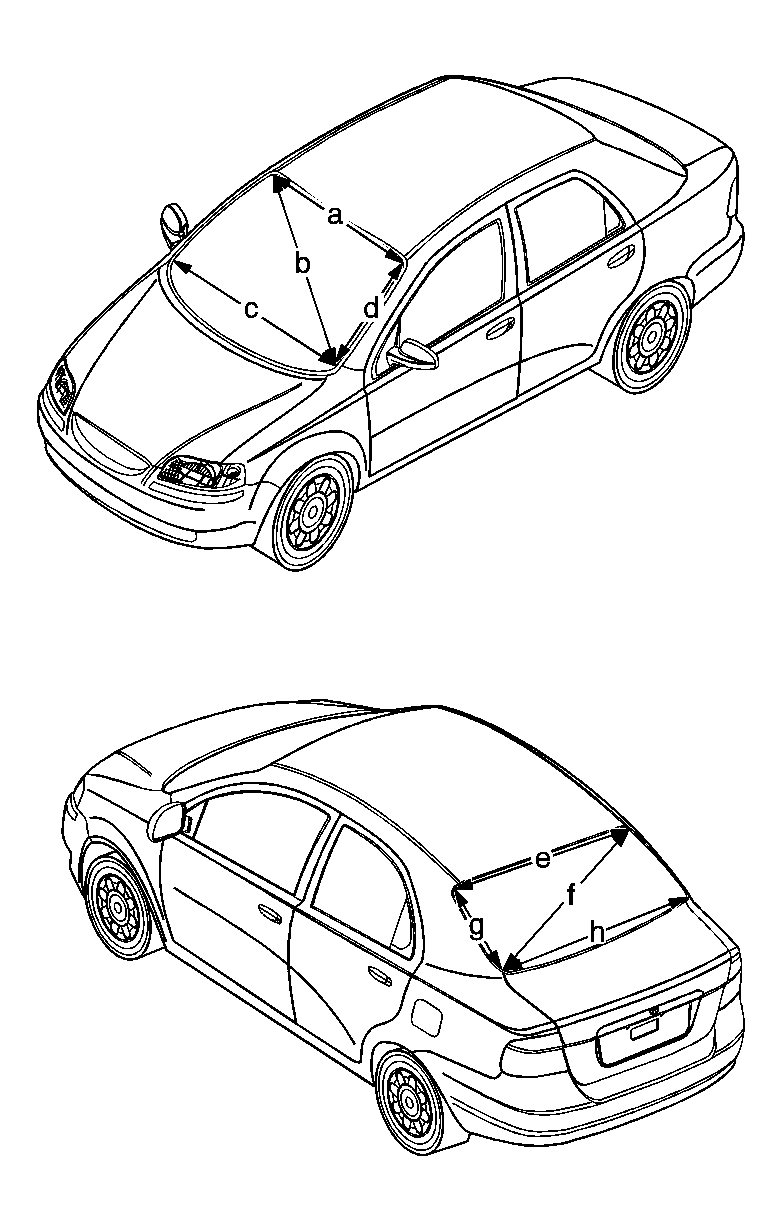

Dimensions of Notch Back Body Front & Rear Window Openings
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 1,106 | 43.54 |
| B | 1,426 | 56.14 |
| C | 1,398 | 54.84 |
| D | 703 | 27.68 |
| E | 959.2 | 37.76 |
| F | 1,155 | 45.47 |
| G | 504.7 | 19.84 |
| H | 1,125.3 | 44.29 |
