Gap Chart - Hatch Back
IMPORTANT:
Inspect for the following Items:
- Proper installation.
- Clearance and level differences of main body, exterior panels, lamps and bumper.
- Waterleaks in passenger and luggage compartment.

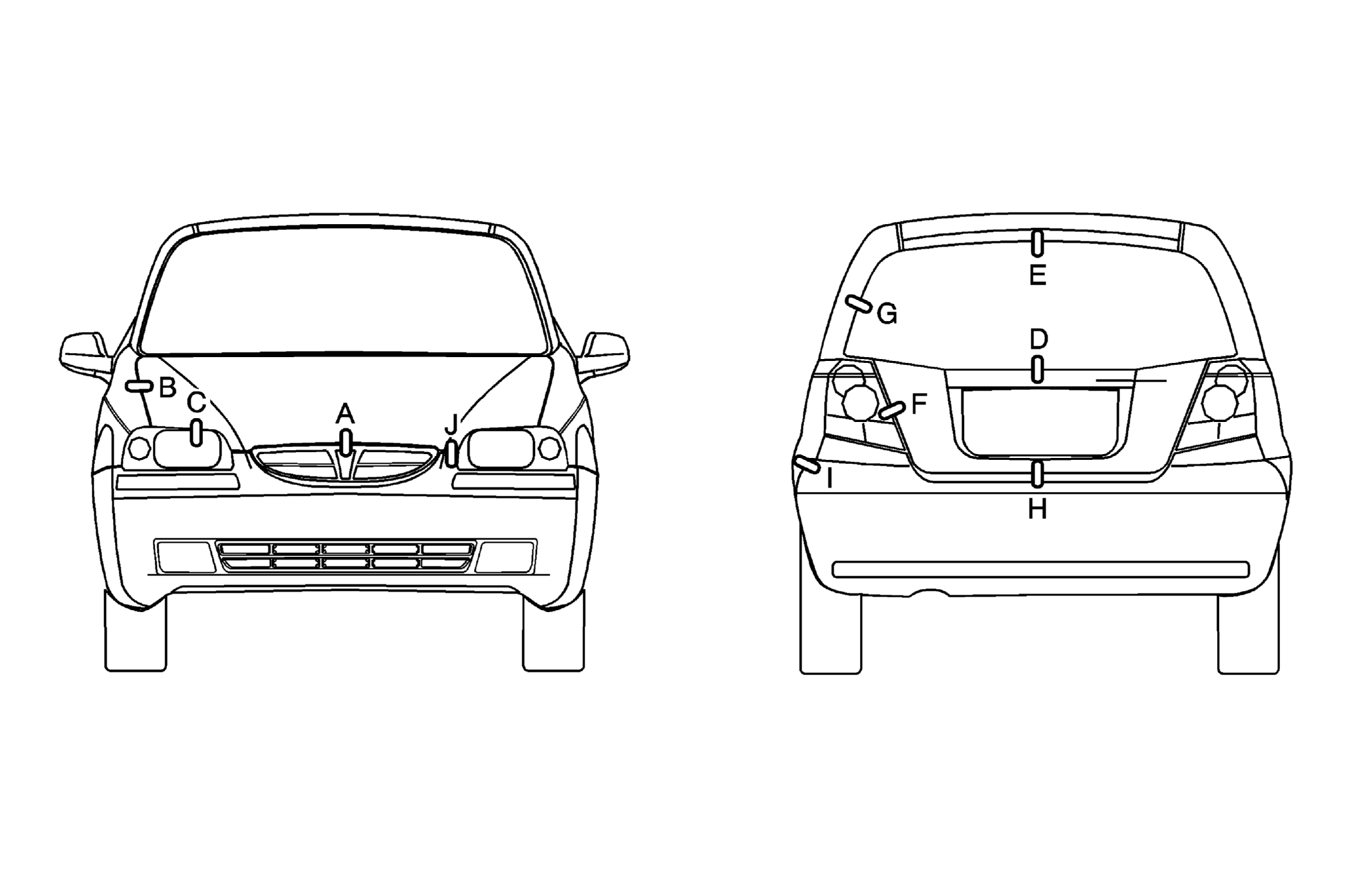

Dimensions of Gap Chart - Hatch Back Body
| Description | Location | Gap | Description | Location | Gap |
|---|---|---|---|---|---|
| Hood - Radiator Grille | A | 4.7 + 0.5 mm (0.185 + 0.020 in) | Tailgate - Tail Lamp | F | 3.4 +/- 1 mm (0.134 +/- 0.039 in) |
| Hood - Fender | B | 2.4 +/- 0.5 mm (0.094 +/- 0.020 in) | Side Outer - Tailgate | G | 4.0 +/- 1 mm (0.157 +/- 0.039 in) |
| Hood - Headlamp | C | 4.8 +/- 0.5 mm (0.189 +/- 0.020 in) | Hood - Front Bumper | H | 5.0 +/- 1 mm (0.200 +/- 0.039 in) |
| Tailgate - Tailgate Glass | D | 4.0 +/- 1 mm (0.157 +/- 0.039 in) | Side Outer - Rear Bumper | I | 2.0 +/- 0.5 mm (0.078 +/- 0.020 in) |
| Tailgate - Roof | E | 5.09 +/- 1 mm (0.232 +/- 0.039 in) | Tailgate - Rear Bumper | J | 5.0 +/- 1 mm (0.200 +/- 0.039 in) |
