Front Panel

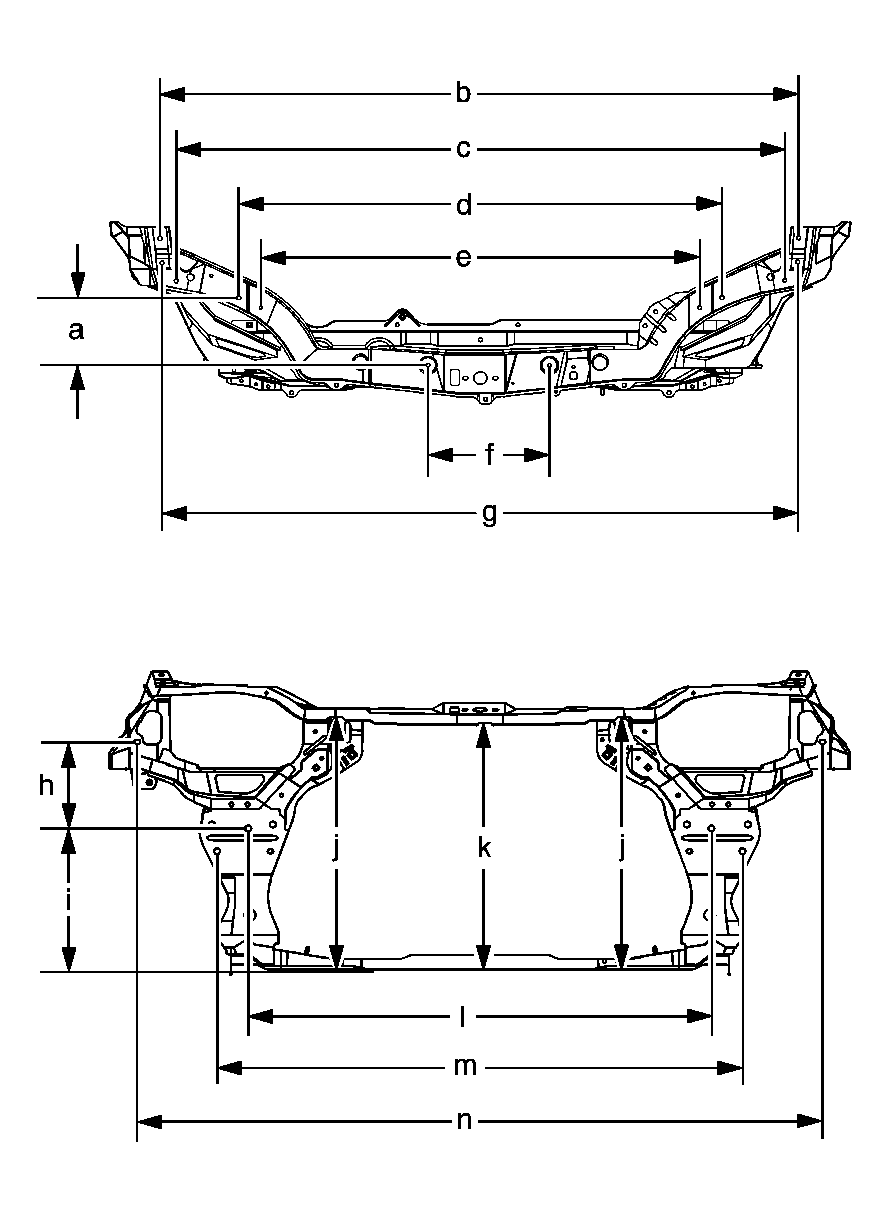

Dimensions of Front Panel Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 118.3 | 4.65 |
| B | 1,264.4 | 49.76 |
| C | 1,210.0 | 47.63 |
| D | 960.0 | 37.80 |
| E | 872.0 | 34.33 |
| F | 241.5 | 9.45 |
| G | 1,261.0 | 49.65 |
| H | 220.3 | 8.66 |
| I | 279.4 | 10.98 |
| J | 493.7 | 19.41 |
| K | 487.6 | 19.17 |
| L | 920.0 | 36.22 |
| M | 1,043.0 | 41.02 |
| N | 1,360.0 | 53.54 |
