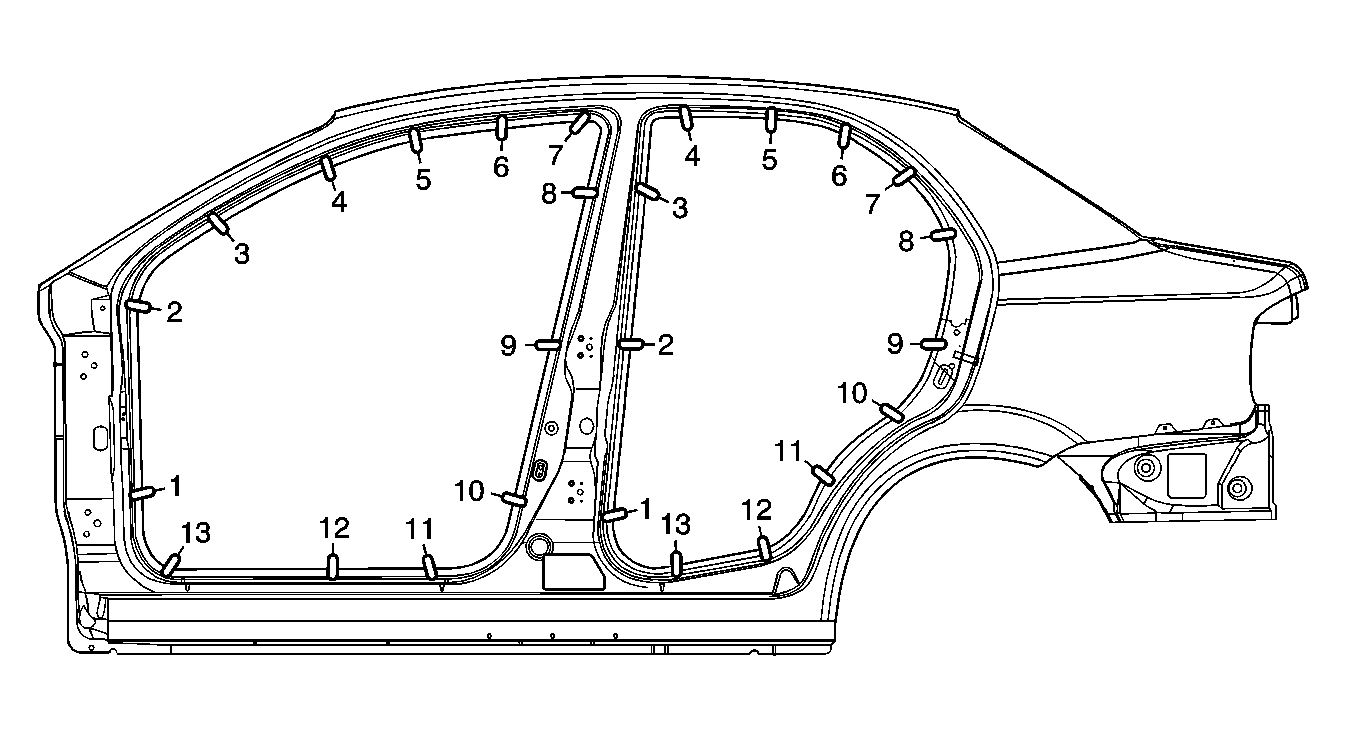

Frame Door Opening - Front (Notch Back)
Dimensions of Frame Door Opening (Notch Back) Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| 1 | 1,385.6 | 54.53 |
| 2 | 1,356.4 | 53.39 |
| 3 | 1,292.21 | 50.87 |
| 4 | 1,211.4 | 47.68 |
| 5 | 1,148 | 45.20 |
| 6 | 1,144.4 | 45.04 |
| 7 | 1,098.4 | 43.23 |
| 8 | 1,226.8 | 48.27 |
| 9 | 1,392 | 54.80 |
| 10 | 1,403 | 55.24 |
| 11 | 1,405.4 | 55.31 |
| 12 | 1,405.4 | 55.31 |
| 13 | 1,405.4 | 55.31 |
