Floor Pan

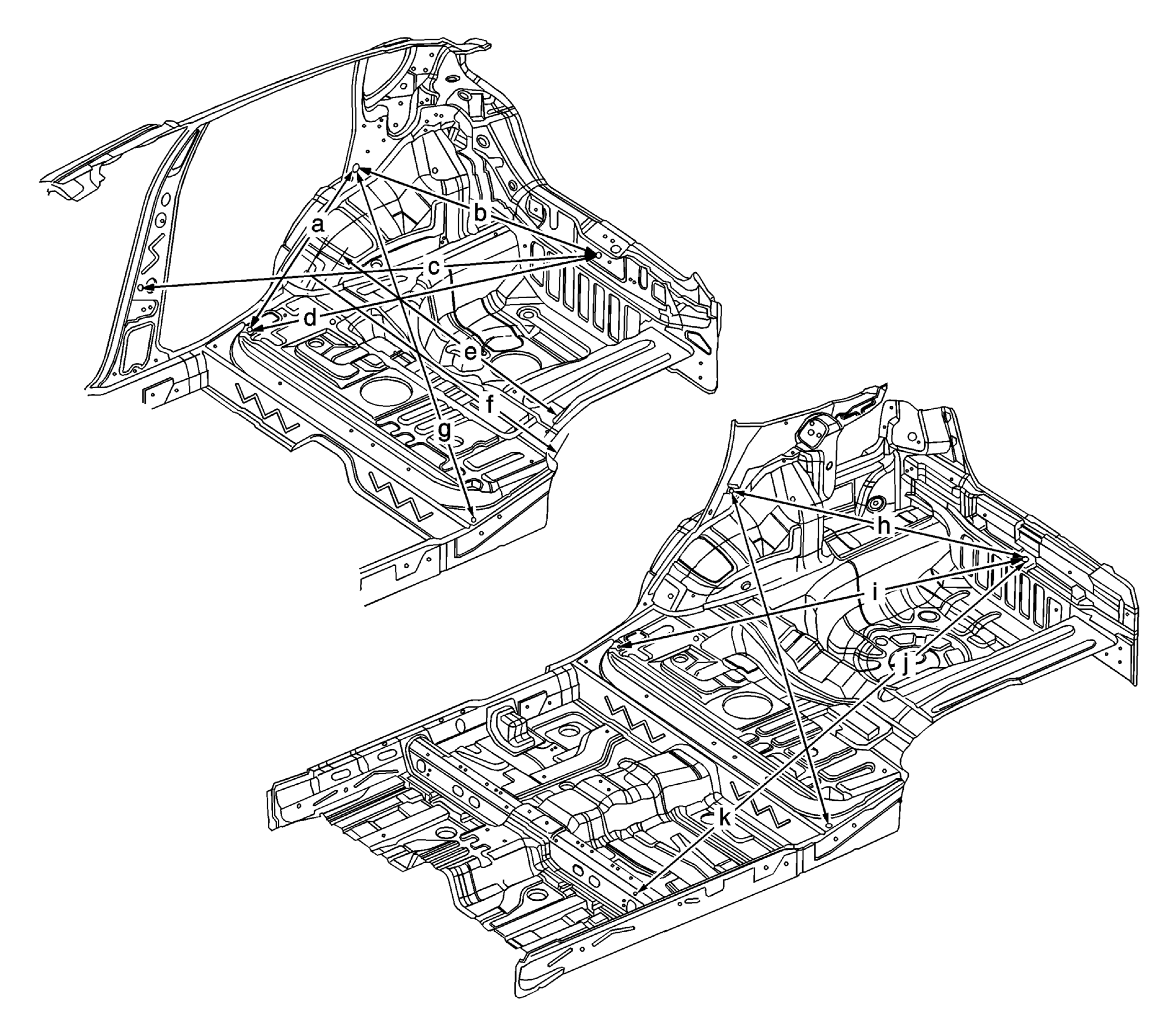

Fig 1: Dimensions of Floor Pan Body

GM1308746

Courtesy of GENERAL MOTORS CORP.

Dimensions of Floor Pan Body

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	654	25.75
B	855.6	33.66
C	1,557.5	61.30
D	1,170	46.06
E	1,086.6	42.76
F	1,282	50.47
G	1,529.4	60.20
H	1,051.7	41.38
I	1,462	57.56
J	1,544	60.79
K	2,295	90.35
