Back Panel Lower (Notch Back)

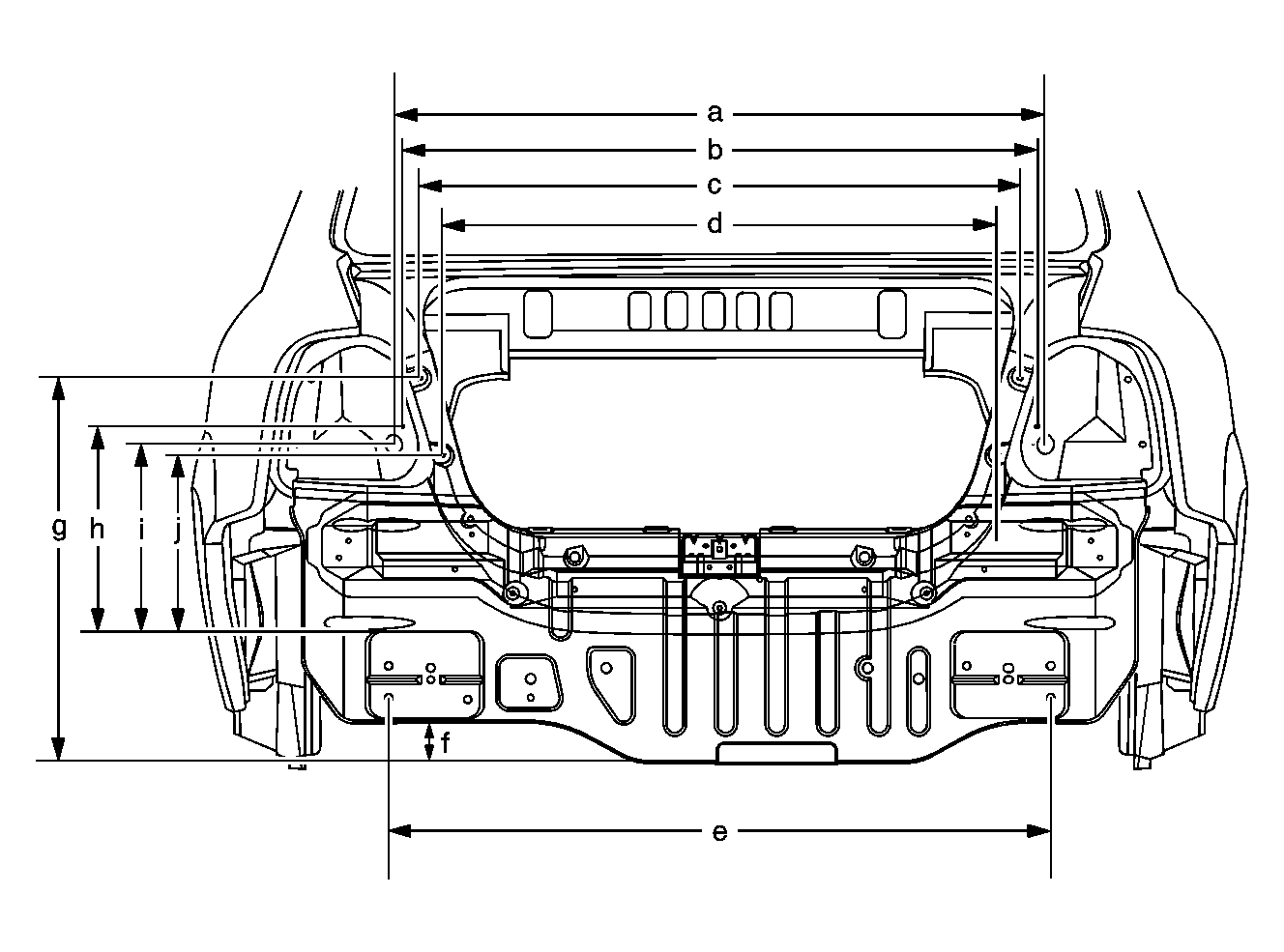

Dimensions of Back Panel Lower (Notch Back) Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 1,034 | 40.71 |
| B | 1,008 | 39.69 |
| C | 953 | 37.52 |
| D | 881 | 34.69 |
| E | 1,050.8 | 41.34 |
| F | 64 | 2.52 |
| G | 612 | 24.09 |
| H | 327 | 12.87 |
| I | 296 | 11.65 |
| J | 281 | 11.06 |
