Keyless Entry Schematics

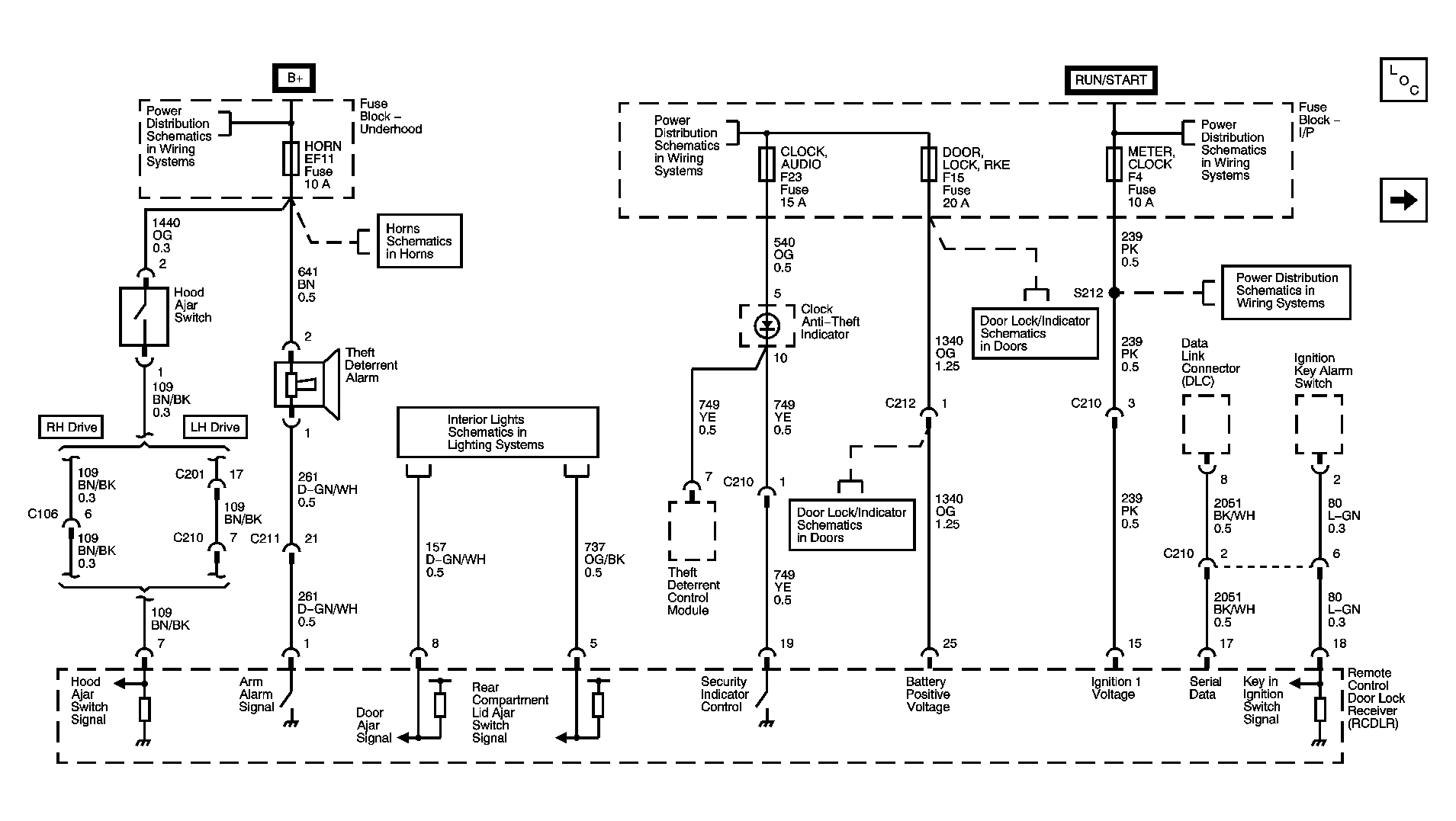

Fig 1: Content Theft Deterrent and Remote Keyless Entry Power and Ground Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

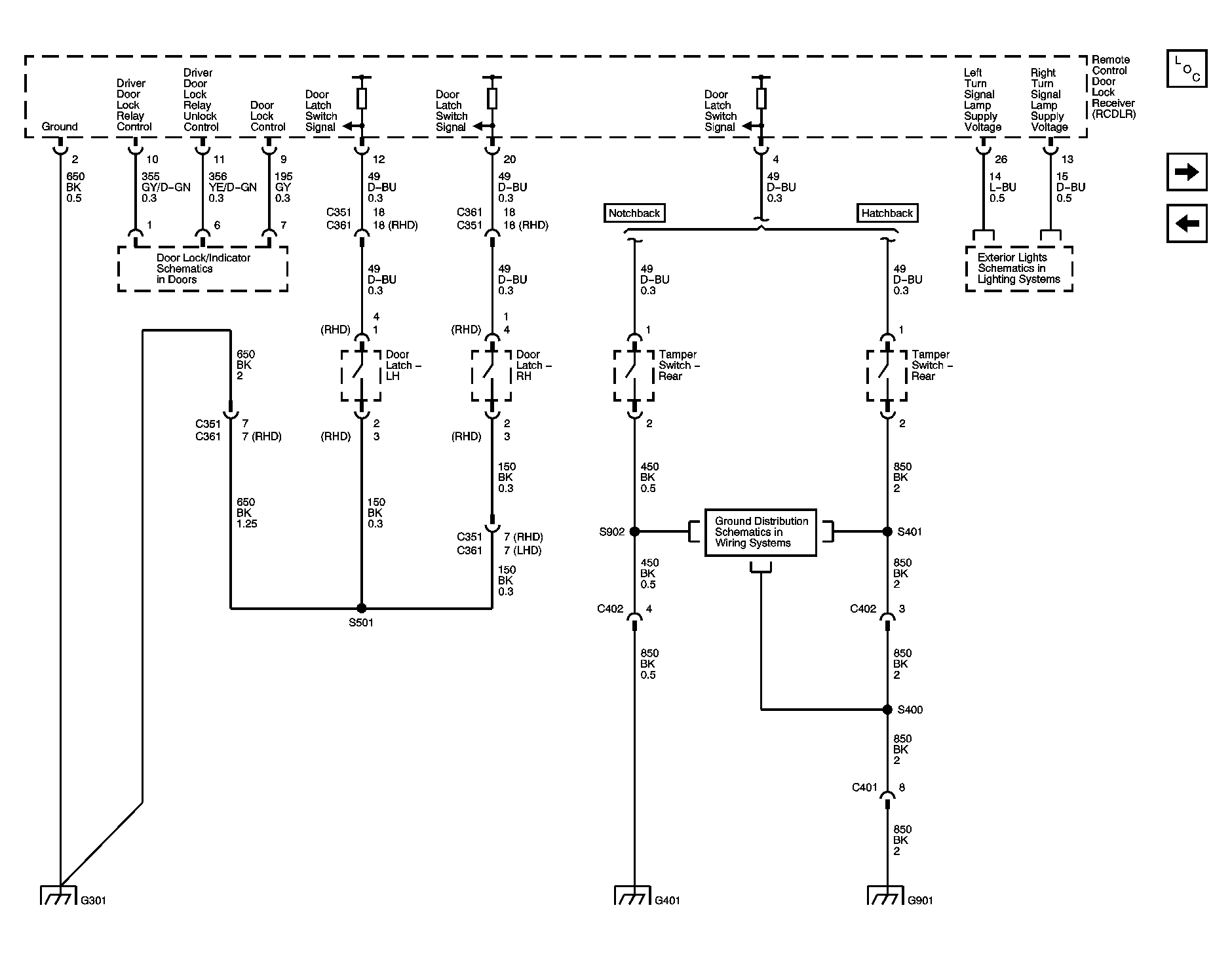

Fig 2: Door Latches and Ajar Switches Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Vehicle Theft Deterrent (Immobilizer) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
