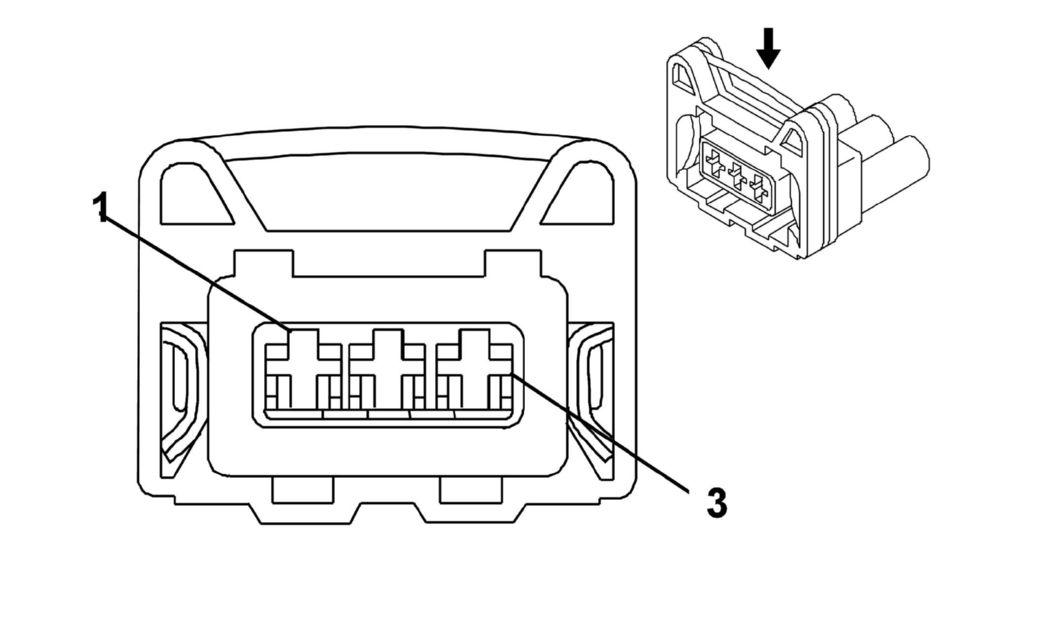

Knock Sensor (KS) Connector End View
Knock Sensor (KS)
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- AMP 368215-1
- 3-Way JPT 3P Assembly for Knock Sensor (GY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
YE/BK |
496 |
Knock Sensor (KS) Signal |
| 2 |
D-BU/WH |
1876 |
Low Reference |
| 3 |
BK |
808 |
Low Reference |
