Power Door Systems Connectors

Door Latch - Driver Front C1

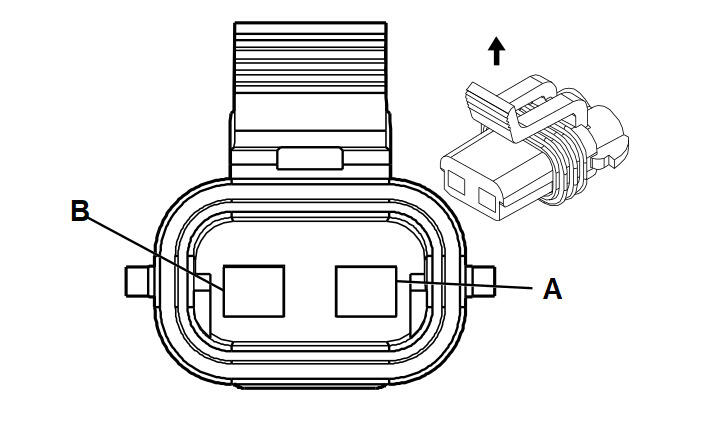

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 294 Door Lock Actuator Unlock Control
B WH 295 Door Lock Actuator Lock Control
Door Latch - Driver Front C2

GM1481291Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32421
  • 4-Way Connector F (GY)
Pin Wire Color Circuit No. Function
A GY 195 Door Lock Control
B BK 150 Ground
C L-GN 194 Door Unlock Control
D D-BU/RD 49 Tamper Switch Signal
Door Latch - Left Rear

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 294 Door Lock Actuator Unlock Control
B WH 295 Door Lock Actuator Lock Control
Door Latch - Passenger Front C1

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 294 Door Lock Actuator Unlock Control
B WH 295 Door Lock Actuator Lock Control
Door Latch - Passenger Front C2 (LHD)

GM1481291Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32421
  • 4-Way Connector F (GY)
Pin Wire Color Circuit No. Function
A D-BU 49 Tamper Switch Signal
B - - Not Used
C BK 150 Ground
D - - Not Used
Door Latch - Passenger Front C2 (RHD)

GM1481291Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32421
  • 4-Way F (GY)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 L-GN 194 Door Unlock Control
3 BK 150 Ground
4 - - Not Used
Door Latch - Right Rear

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 294 Door Lock Actuator Unlock Control
B WH 295 Door Lock Actuator Lock Control
Door Lock Relay

GM1467054Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610896
  • 8-Way F PCB Connector SDL-II PCB Hsg (WH)
Pin Wire Color Circuit No. Function
1 GY 355 Driver Door Lock Relay Lock Control
2 WH 295 Door Lock Actuator Lock Control
3 D-BU 294 Door Lock Actuator Unlock Control
4 L-GN 194 Door Unlock Control
5 OG 1340 Battery Positive Voltage
6 GY 195 Door Lock Control
GY 195 Door Lock Control
7 YE/D-GN 356 Driver Door Lock Relay Unlock Control
8 BK 650 Ground
Outside Rearview Mirror - Driver

GM1467115Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series (WH)
Pin Wire Color Circuit No. Function
1 BK 650 Ground
2 - - Not Used
3 RD/WH 82 Driver Mirror Motor Left Control
4 GY 90 Mirror Motor Left Control
5 PU/WH 88 Driver Mirror Motor Right/Down Control
6 OG 267 Heated Mirror Element Supply Voltage
Outside Rearview Mirror - Passenger

GM1467115Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series (WH)
Pin Wire Color Circuit No. Function
1 BK 650 Ground
2 - - Not Used
3 WH 82 Driver Mirror Motor Left Control
4 GY 90 Mirror Motor Left Control
5 L-GN 89 Driver Mirror Motor Up Control
6 OG 267 Heated Mirror/ Rear Defog Relay Coil Supply Voltage
Outside Rearview Mirror Switch - Driver/Passenger

GM1466974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173850
  • 8-Way M 070 Series Multilock Plug 8P (WH)
Pin Wire Color Circuit No. Function
1 PU/WH 88 Driver Mirror Motor Right/Down Control
2 - - Not Used
3 D-GN 89 Driver Mirror Motor Up Control
4 GY 90 Passenger Mirror Motor Left Control
5 RD/WH 82 Driver Mirror Motor Left Control
6 OG 40 Battery Positive Voltage
7 WH 81 Driver Mirror Motor Right Control
8 BK 450 Ground
Outside Rearview Mirror Switch - Passenger Only

GM1466974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173850
  • 8-Way M 070 Series Multilock Plug 8P (WH)
Pin Wire Color Circuit No. Function
1 L-GN 89 Driver Mirror Motor Up Control
2-3 - - Not Used
4 GY 90 Passenger Mirror Motor Left Control
5 WH 81 Driver Mirror Motor Right Control
6 OG 40 Battery Positive Voltage
7 - - Not Used
8 BK 650 Ground
Window Motor - Driver

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 D-BU 164 Power Window Switch Driver Front Up Signal
2 WH 165 Power Window Switch Driver Front Down Signal
Window Motor - Passenger

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 D-GN/WH 666 Power Window Motor Passenger Front Up Control
2 BN/BK 667 Power Window Switch Passenger Down Signal
Window Motor - Left Rear

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 GY/D-GN 669 Power Window Motor Left Rear Down Control
2 L-GN/RD 668 Power Window Motor Left Rear Up Control
Window Motor - Right Rear

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 GY/D-GN 669 Power Window Motor Left Rear Down Control
2 L-GN/RD 668 Power Window Motor Left Rear Up Control
Window Switch - Driver LHD

GM1479836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610798
  • 14-Way F Device Power Window S/W Hsg (WH)
Pin Wire Color Circuit No. Function
1 PU 171 Power Window Master Switch Right Rear Down Signal
2 - - Not Used
3 L-BU 170 Power Window Master Switch Right Rear Up Signal
4 GY/D-GN 169 Power Window Master Switch Left Rear Down Signal
5 - - Not Used
6 L-GN/RD 168 Power Window Master Switch Left Rear Up Signal
7 BN 167 Power Window Master Switch Passenger Front Down Signal
8 BK 650 Ground
9 D-GN 166 Power Window Master Switch Passenger Front Up Signal
10 BN/OG 1307 Power Window Master Switch Lockout Control
11 - - Not Used
12 WH 165 Power Window Switch Driver Down Signal
13 RD/WH 440 Battery Positive Voltage
14 D-BU 164 Power Window Switch Driver Up Control
Window Switch - Driver RHD

GM1479836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610798
  • 14-Way F Device Power Window S/W Hsg
Pin Wire Color Circuit No. Function
1 PU 171 Power Window Master Switch Right Rear Down Signal
2 - - Not Used
3 L-BU 170 Power Window Master Switch Right Rear Up Signal
4 GY/D-GN 169 Power Window Master Switch Left Rear Down Signal
5 - - Not Used
6 D-GN/RD 168 Power Window Master Switch Left Rear Up Signal
7 WH 165 Power Window Switch Driver Down Signal
8 BK 650 Ground
9 D-BU 164 Power Window Switch Driver Up Signal
10 BN/OG 1307 Power Window Master Switch Lockout Control
11 - - Not Used
12 BN 167 Power Window Master Switch Passenger Front Down Signal
13 RD/WH 41 Ignition 3 Voltage
14 D-GN 164 Power Window Master Switch Passenger Front Up Control
Window Switch - Passenger

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 BN 167 Power Window Master Switch Passenger Front Down Signal
2 D-GN 166 Power Window Master Switch Passenger Front Up Signal
3 BN/BK 170 Power Window Master Switch Right Rear Up Signal
4 BN/OG 1307 Power Window Master Switch Lockout Control
5 - - Not Used
6 D-GN/WH 168 Power Window Master Switch Left Rear Up Signal
Window Switch - Left Rear

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 GY/RD 169 Power Window Master Switch Left Rear Down Signal
2 L-GN/BK 168 Power Window Master Switch Left Rear Up Signal
3 GY/D-GN 669 Power Window Motor Left Rear Down Control
4 BN/OG 1307 Power Window Master Switch Lockout Control
5 - - Not Used
6 L-GN/RD 668 Power Window Motor Left Rear Up Control
Window Switch - Right Rear

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 GY/OG 169 Power Window Master Switch Left Rear Down Signal
2 L-GN/BK 168 Power Window Master Switch Left Rear Up Signal
3 GY/D-GN 669 Power Window Motor Left Rear Down Control
4 BN/OG 1307 Power Window Master Switch Lockout Control
5 - - Not Used
6 L-GN/RD 668 Power Window Motor Left Rear Up Control
