Valve Body Assembly Components: Disassembly

Remove detent spring (2), plate (1) and manual valve (3).

Fig 1: Removing Detent Spring
Courtesy of SUZUKI OF AMERICA CORP.

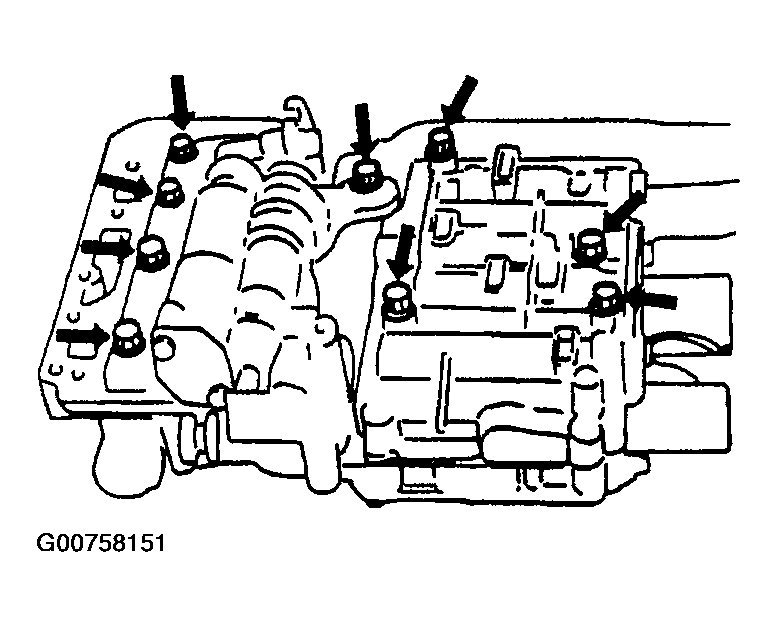

Remove bolts from upper valve body side.

Fig 2: Removing Bolts From Upper Valve Body Side
Courtesy of SUZUKI OF AMERICA CORP.
Remove bolts from lower valve body side.

Fig 3: Removing Bolts From Lower Valve Body Side
Courtesy of SUZUKI OF AMERICA CORP.
Separate upper valve body (2) and lower valve body (1) while pressing separator plate and valve body gasket against lower body (1) to prevent balls, spring and others from coming out of valve body.

Fig 4: Separating Upper & Lower Valve Body
Courtesy of SUZUKI OF AMERICA CORP.
Confirm that there are valve, balls and plate as shown in the figures.

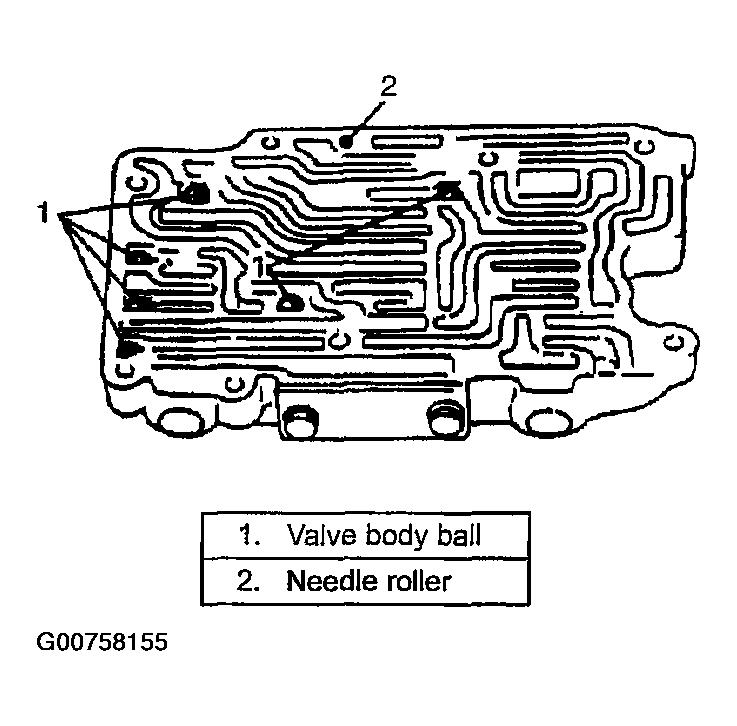

- Front upper valve body assembly.

  Fig 5: Confirming That There Are Valve, Balls & Plate
  Courtesy of SUZUKI OF AMERICA CORP.

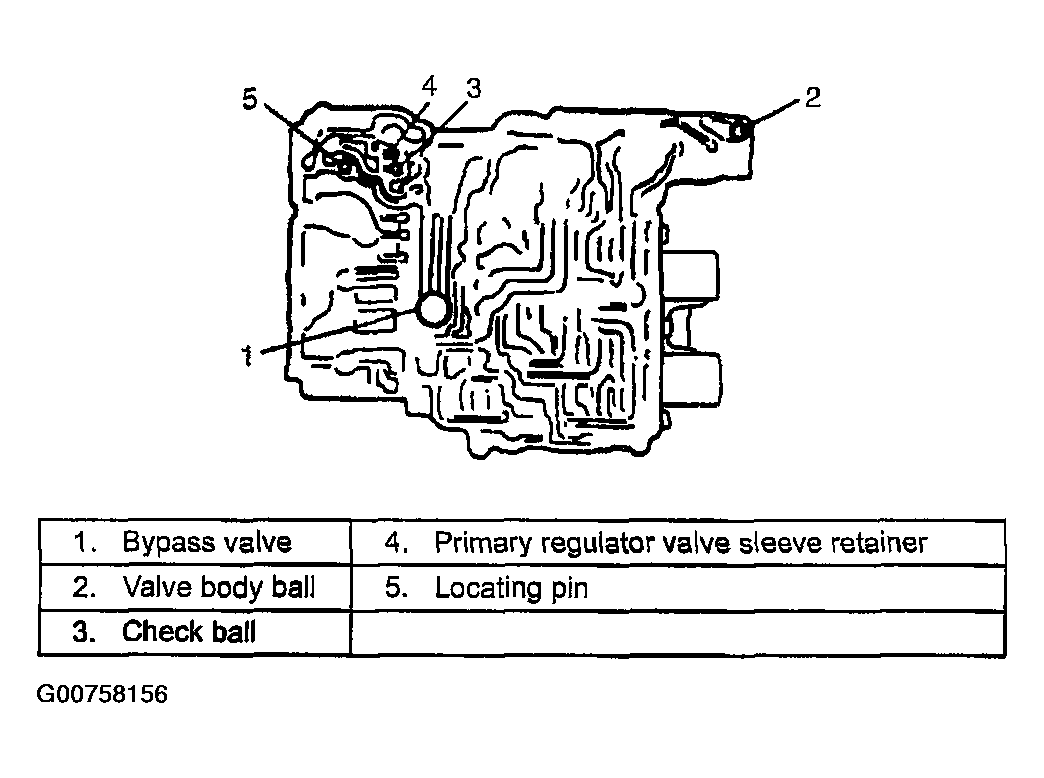

- Rear upper valve body assembly.

  Fig 6: Rear Upper Valve Body Assembly
  Courtesy of SUZUKI OF AMERICA CORP.

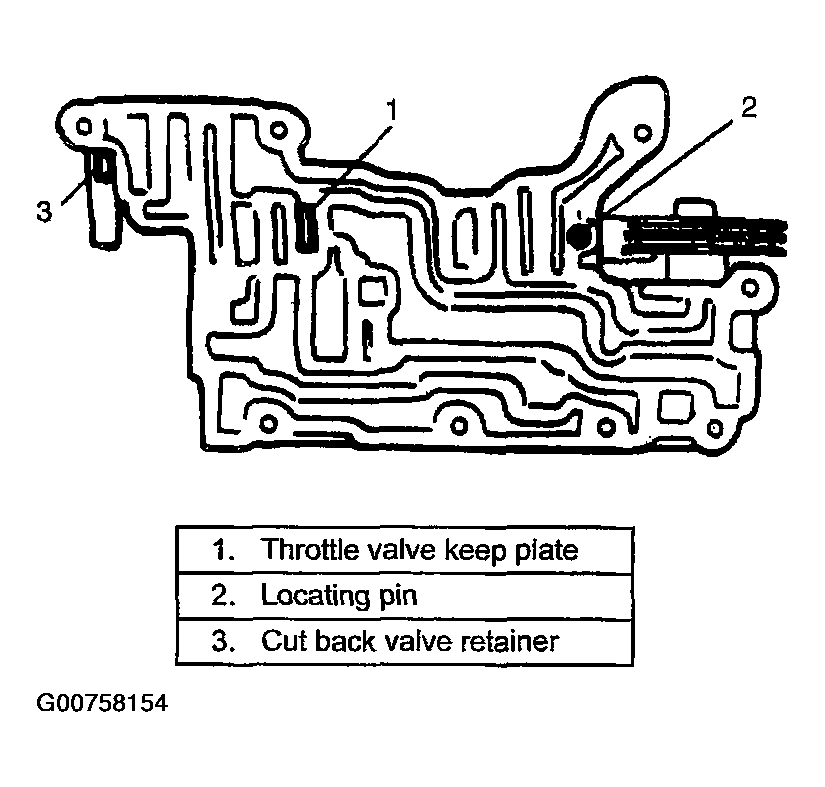

- Lower valve body assembly.

Fig 7: Lower Valve Body Assembly

Courtesy of SUZUKI OF AMERICA CORP.
