Front Upper Valve Body Components: Notes

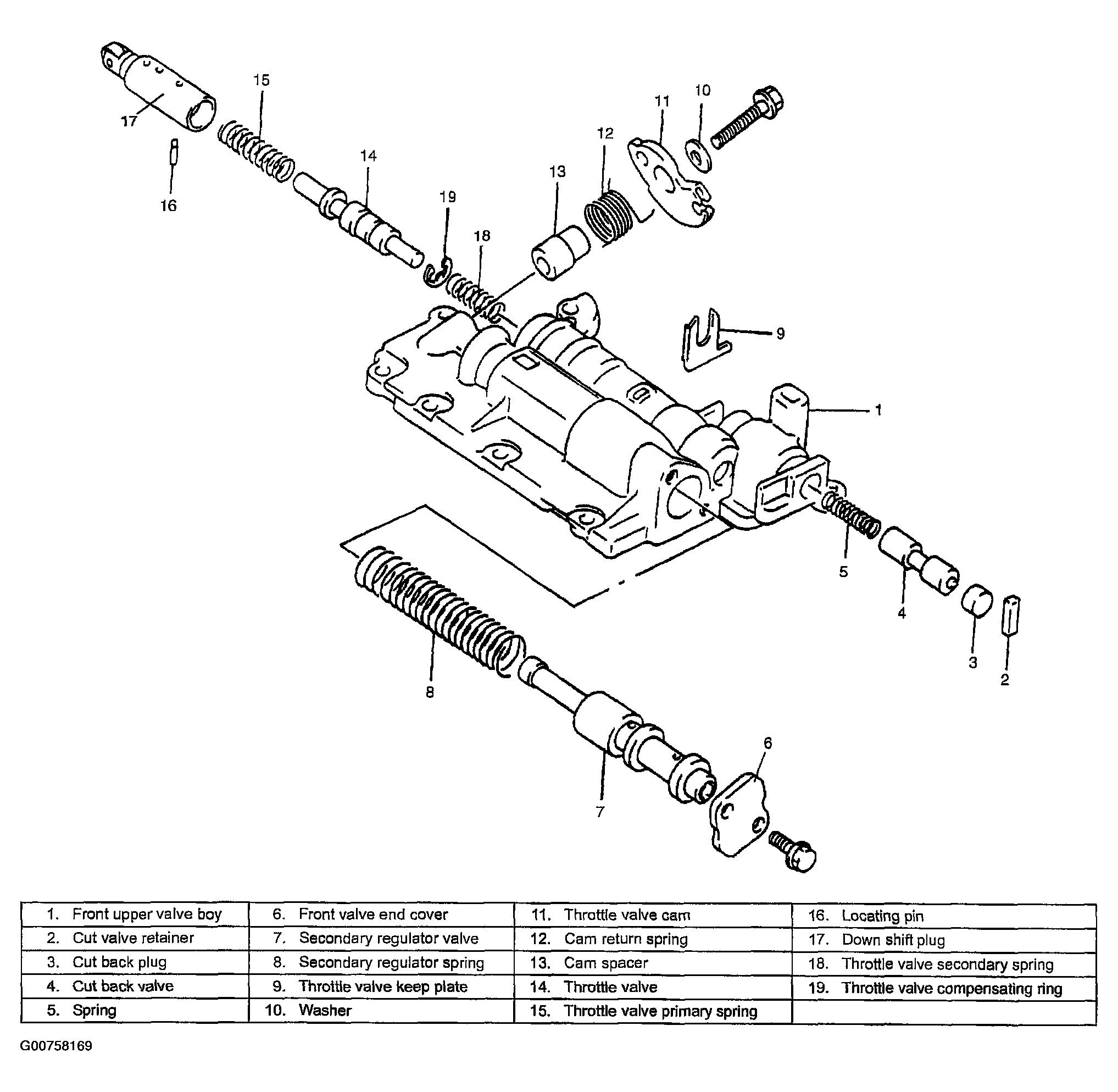

Fig 1: Exploded View Of Upper Valve Body

G00758169

Courtesy of SUZUKI OF AMERICA CORP.
