Direct Clutch Components: Assembly

Assemble each component by reversing disassembly procedure and noting the following points.

• Always use new O-ring and apply A/T fluid before installation.
• Do not align opening in retaining ring (2) with lug of direct clutch piston return spring at retainer.

  Special tool

  1. (A): 09926-98310
  Fig 1: Using New O-Ring & Applying A/T Fluid

  Courtesy of SUZUKI OF AMERICA CORP.
• Use care so that direct clutch piston return spring will not fall or tilt.
  CAUTION: Be careful when applying pressure, for overpressure will cause plate section of piston return spring to deform.
• Do not match opening (1) in retaining back plate ring with cutout (2) in direct clutch cylinder.

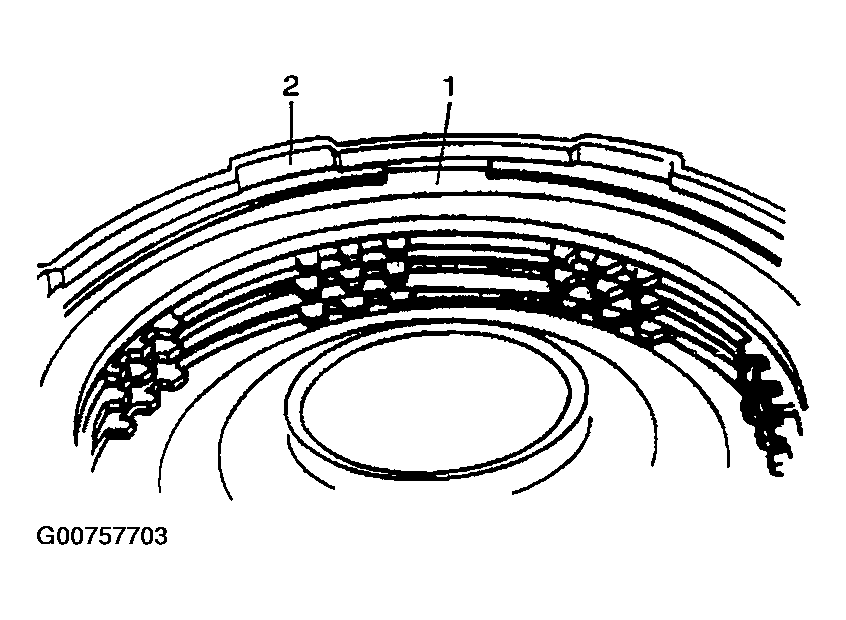

  Fig 2: Identifying Retaining Back Plate Ring With Cutout

  Courtesy of SUZUKI OF AMERICA CORP.
• Install clutch backing plate with its grooved side (1) facing the front.
