Table of A/T System Component Operation

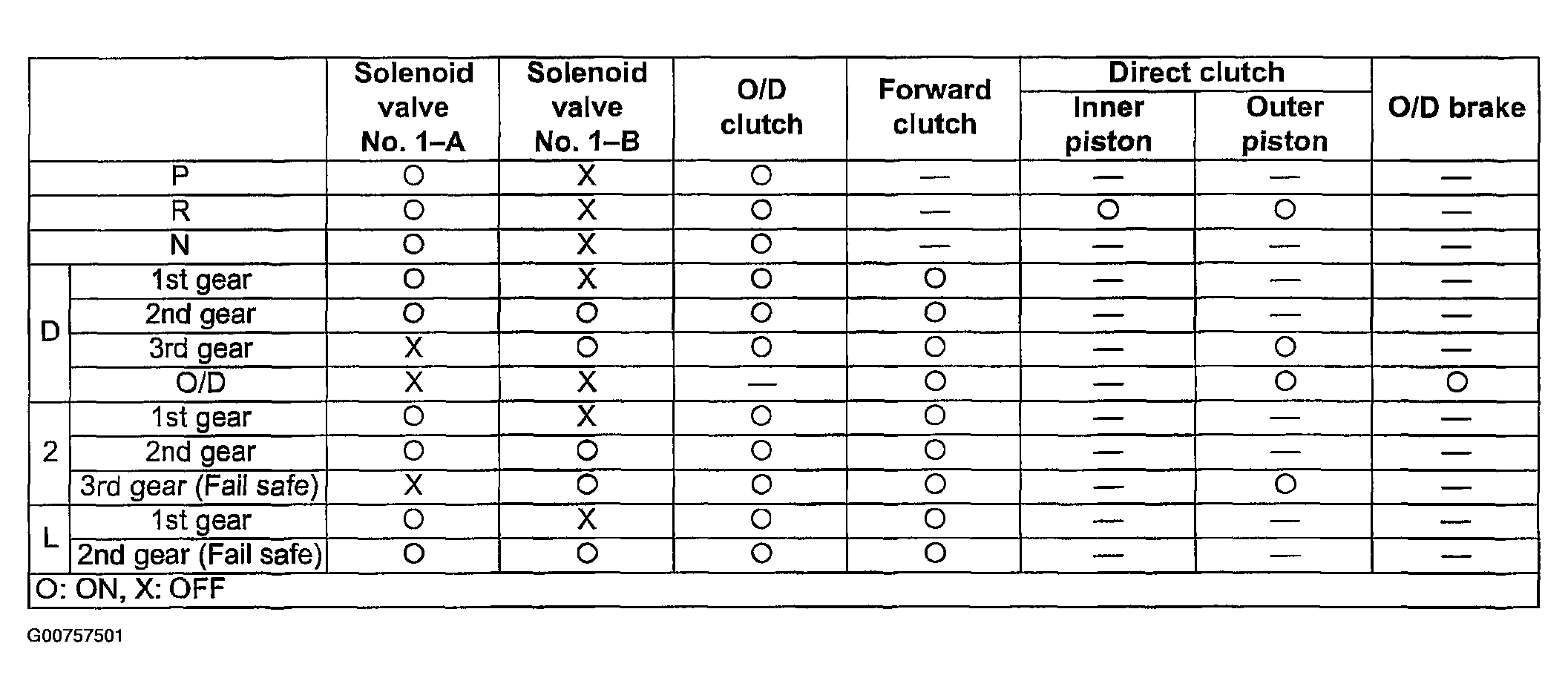

Fig 1: Automatic Transmission System Component Operation Table (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

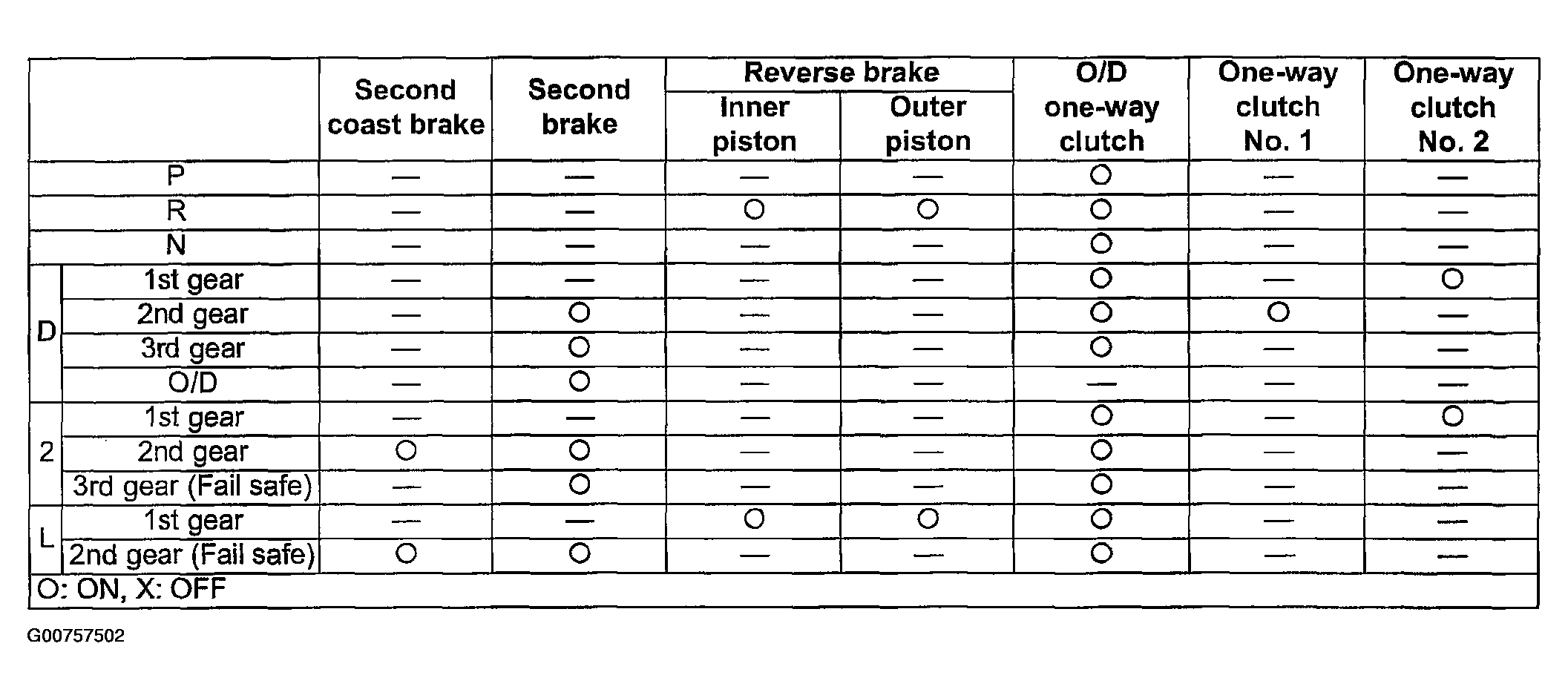

Fig 2: Automatic Transmission System Component Operation Table (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
