A/C Signal Circuit Check: Troubleshooting

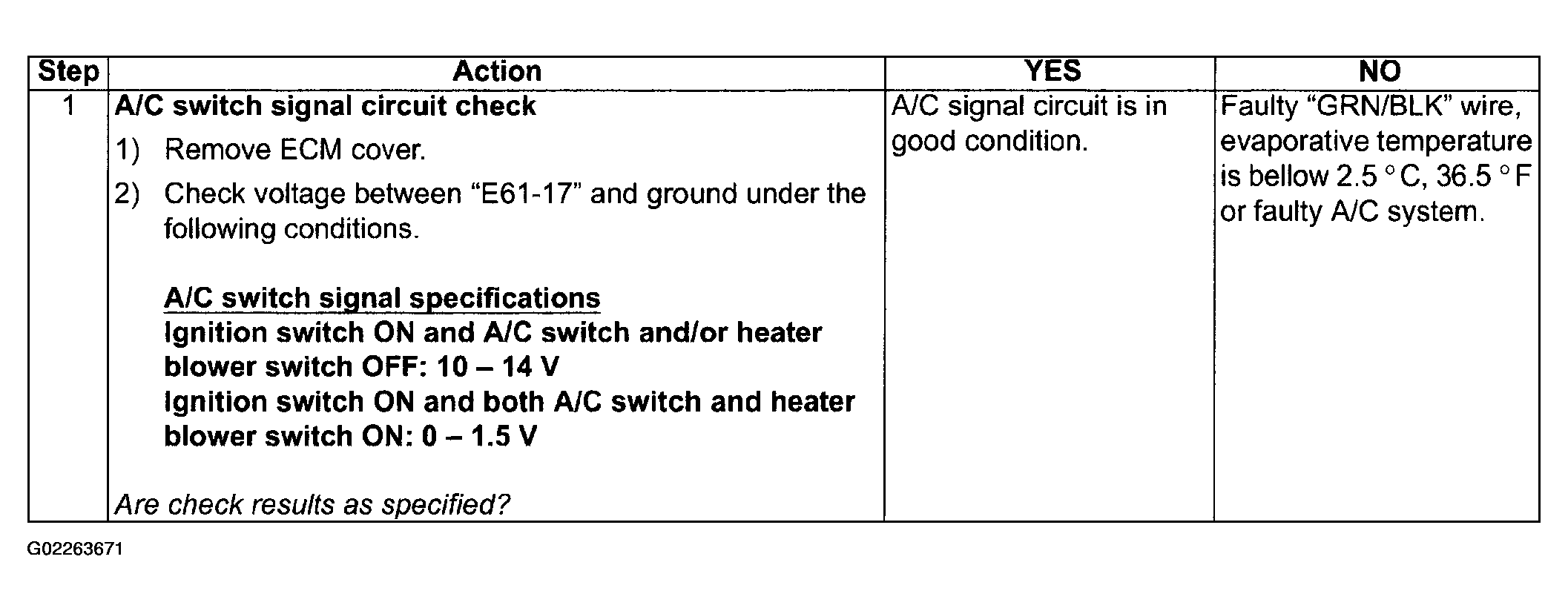

Fig 1: A/C Signal Circuit Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
