Shift Linkage Assembly: Removal

  1. Disconnect the negative battery cable.
  2. Remove the rod clamp. See SHIFT LINKAGE ADJUSTMENT  under ADJUSTMENTS.
  3. Remove the clip and the bolt from universal joint.
  4. Separate the universal joint from the transaxle.

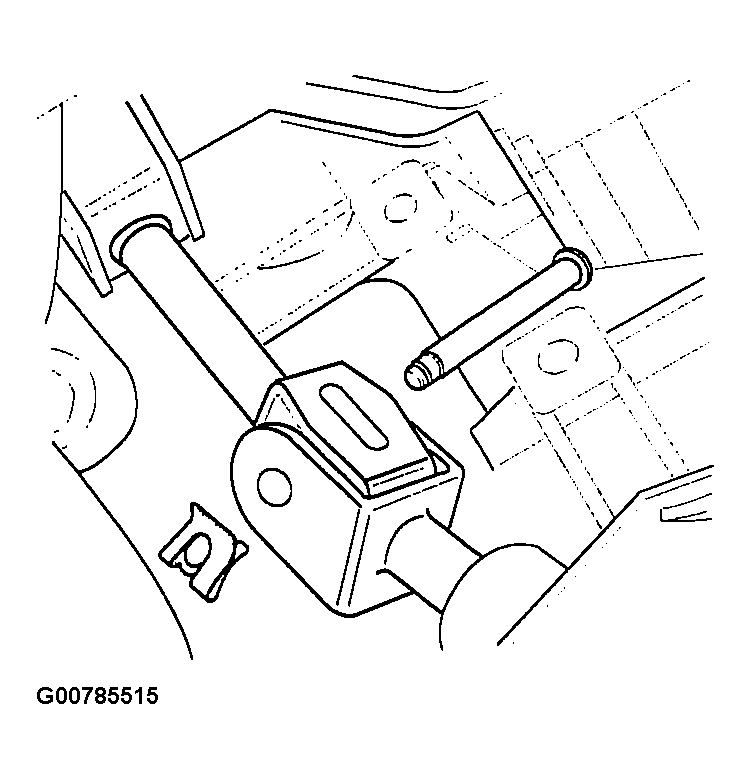

    Fig 1: Separating The Universal Joint
    G00785515Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the fixing shaft pin and separate the linkage connection part from the transaxle rear mounting bracket.
  6. Remove the shift linkage assembly.

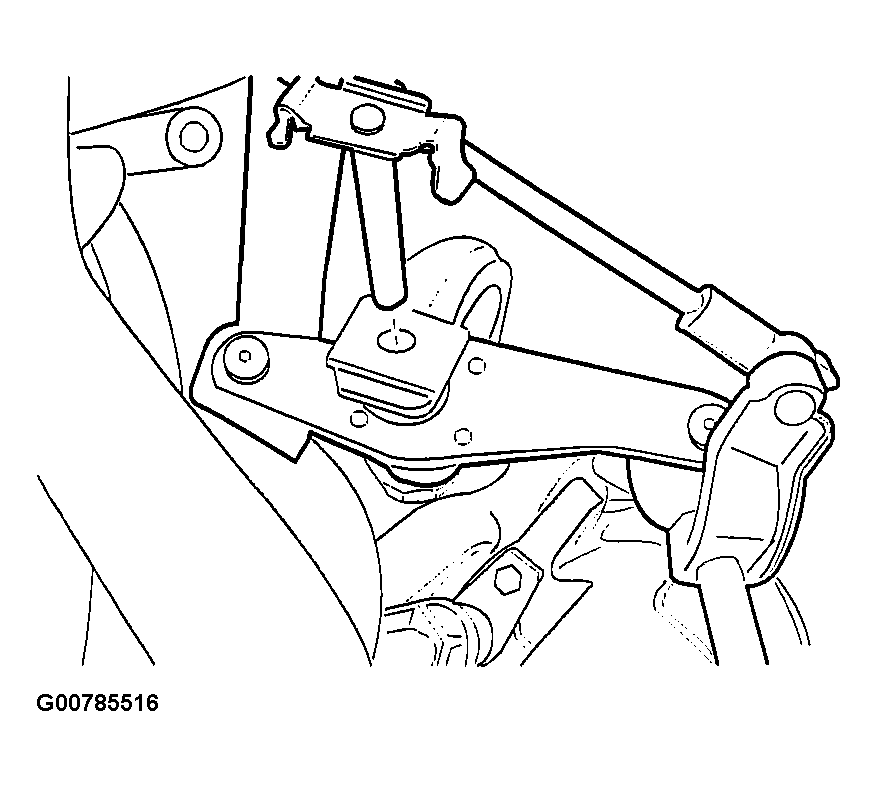

    Fig 2: Removing The Shift Linkage
    G00785516Courtesy of SUZUKI OF AMERICA CORP.
