Shift Linkage Assembly: Installation
- Install the shift linkage assembly.

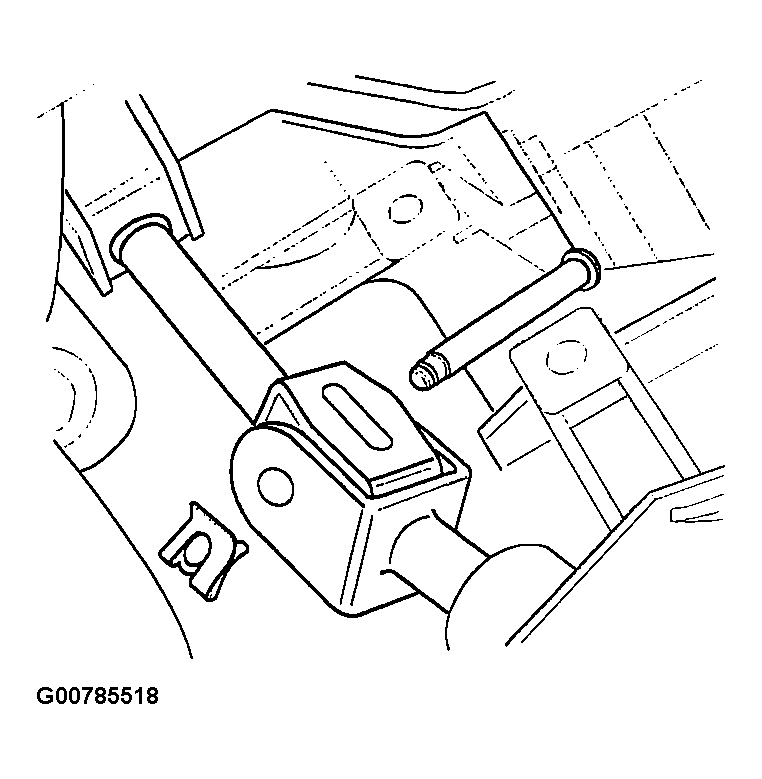

- Install the fixing shaft pin and connect the linkage connection part to the transaxle rear mounting bracket.
Courtesy of SUZUKI OF AMERICA CORP.

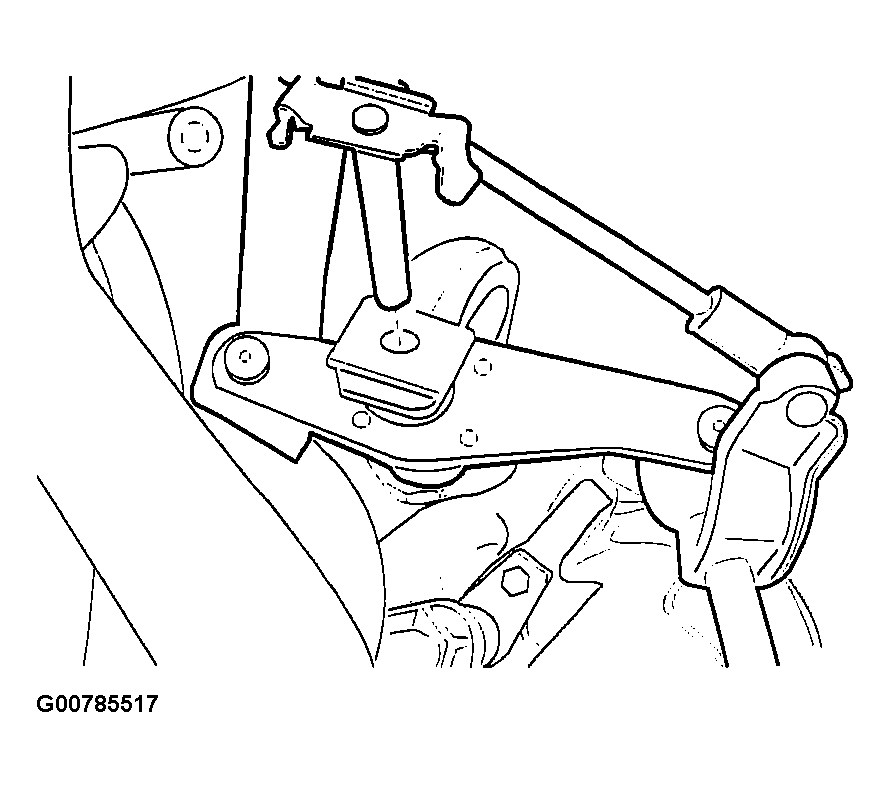

- Install the universal joint to the transaxle.
Courtesy of SUZUKI OF AMERICA CORP.
- Install the clip and the bolt from universal joint.
- Install the rod clamp. See SHIFT LINKAGE ADJUSTMENT
under ADJUSTMENTS.
- Adjust the shift linkage. See SHIFT LINKAGE ADJUSTMENT
under ADJUSTMENTS.
- Connect the negative battery cable.
