Gearshift Lever: Removal

  1. Disconnect the negative battery cable.
  2. Position the gearshift lever into NEUTRAL.
  3. Disconnect the boot from the console cover.
  4. Lift the console cover upward to expose the shift control lever mechanism.

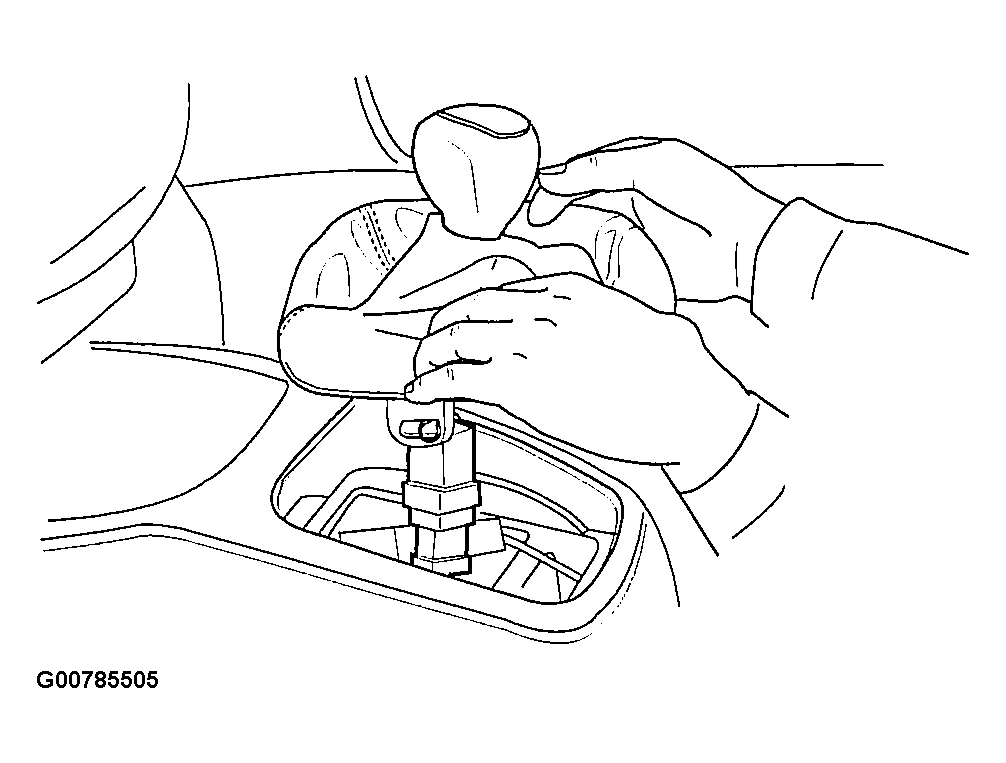

    Fig 1: Lifting The Console Cover
    G00785505Courtesy of SUZUKI OF AMERICA CORP.
  5. Rotate the gearshift lever stop clamp and remove it.
  6. Remove the gearshift lever from the gearshift lever shaft.
    Fig 2: Removing The Gearshift Lever
    G00785506Courtesy of SUZUKI OF AMERICA CORP.
