Gearshift Lever: Installation

  1. Install the gearshift lever into the gearshift lever shaft.
  2. Install the gearshift lever stop clamp.
    Fig 1: Installing The Gearshift Lever
    G00785507Courtesy of SUZUKI OF AMERICA CORP.
  3. Rotate the gearshift lever stop clamp to secure it.
  4. Lower the boot and connect it to the console cover.

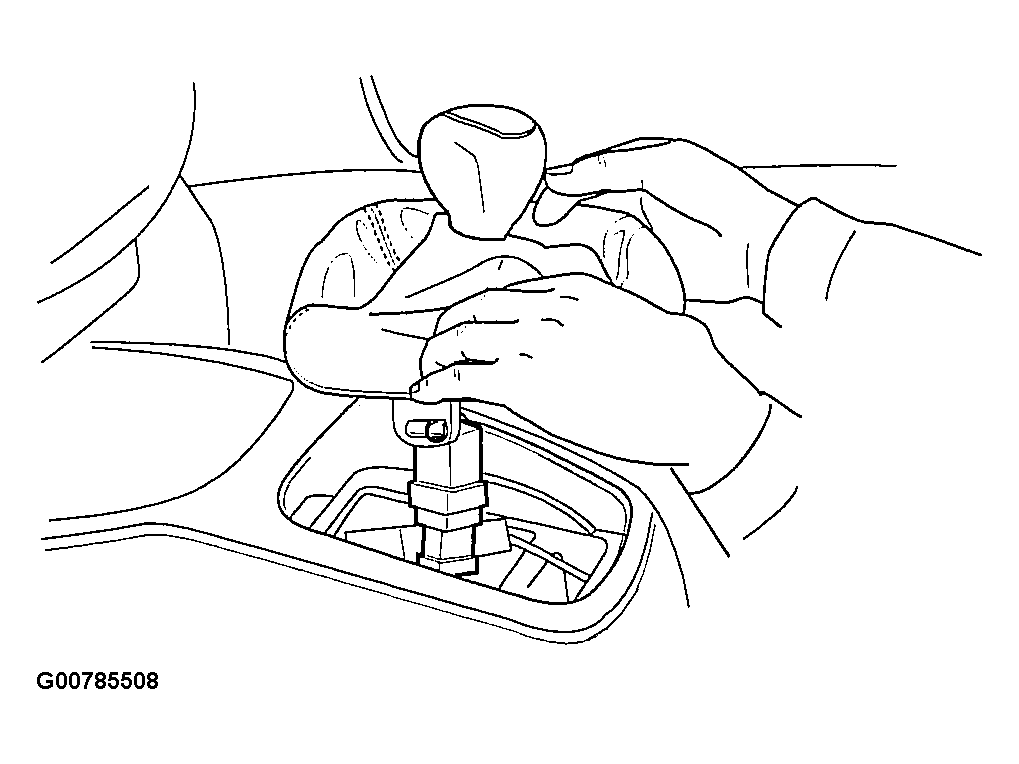

    Fig 2: Connecting The Console Cover
    G00785508Courtesy of SUZUKI OF AMERICA CORP.
  5. Connect the negative battery cable.
