Gearshift Lever Housing: Removal

  1. Disconnect the negative battery cable.
  2. Remove the rod clamp. Refer to "Shift Linkage Adjustment:".
  3. Remove the console.
  4. Remove the gearshift lever housing bolts and the gearshift lever housing.

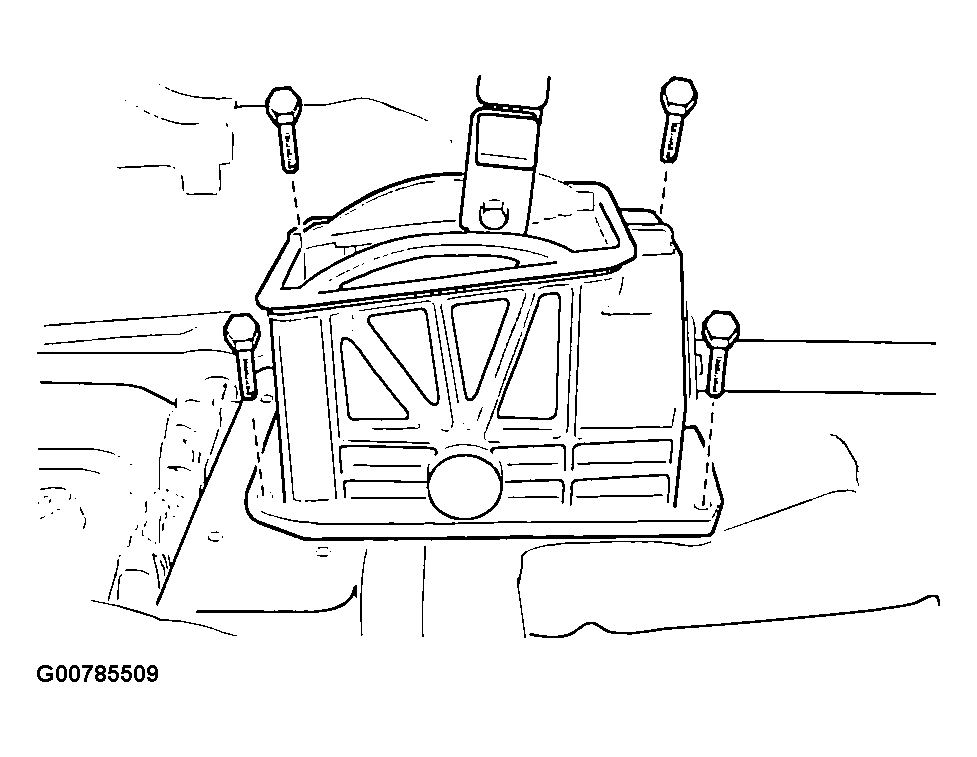

    Fig 1: Removing The Gearshift Lever Housing
    G00785509Courtesy of SUZUKI OF AMERICA CORP.
