Gearshift Lever Housing: Installation

  1. Install the gearshift lever housing and the gearshift lever housing bolts.

    Tighten

    Tighten the gearshift housing bolts to 7 N.m (62 lb-in).

  2. Adjust the shift linkage.
  3. Install the console.

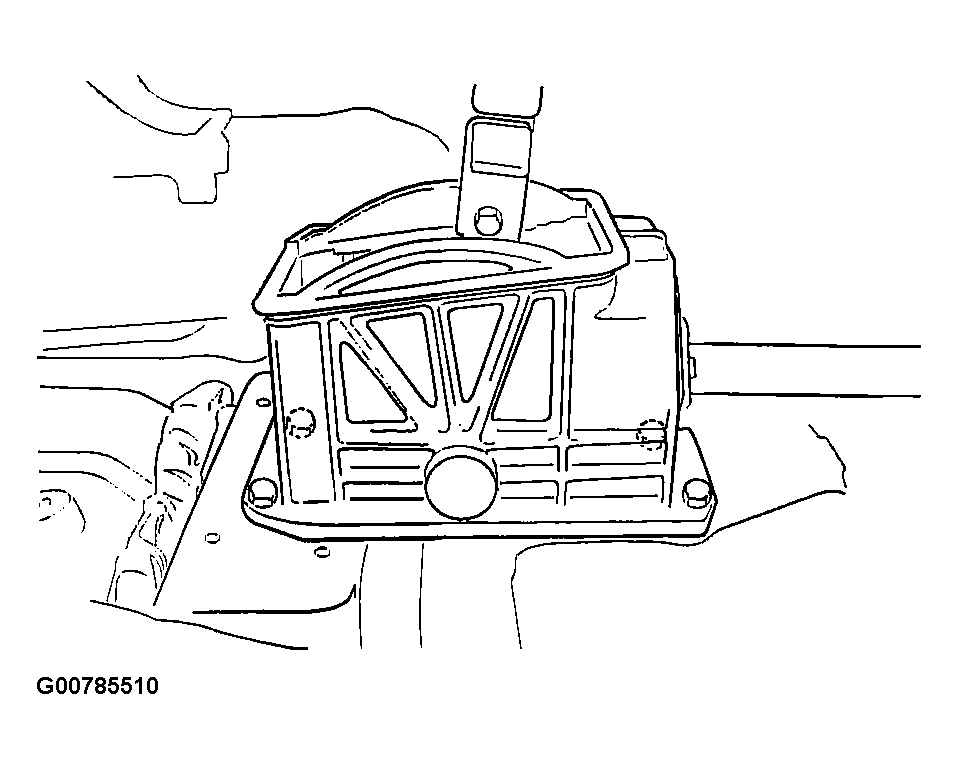

    Fig 1: Installing The Console
    G00785510Courtesy of SUZUKI OF AMERICA CORP.
  4. Connect the negative battery cable.
