Drive Axle Seal: Installation

  1. Install the new drive axle seal using the Ring Installer (KM-519) and a hammer.
  2. Coat the seal lip with the transaxle fluid.
  3. Install the drive axle. Refer to AXLE SHAFTS .

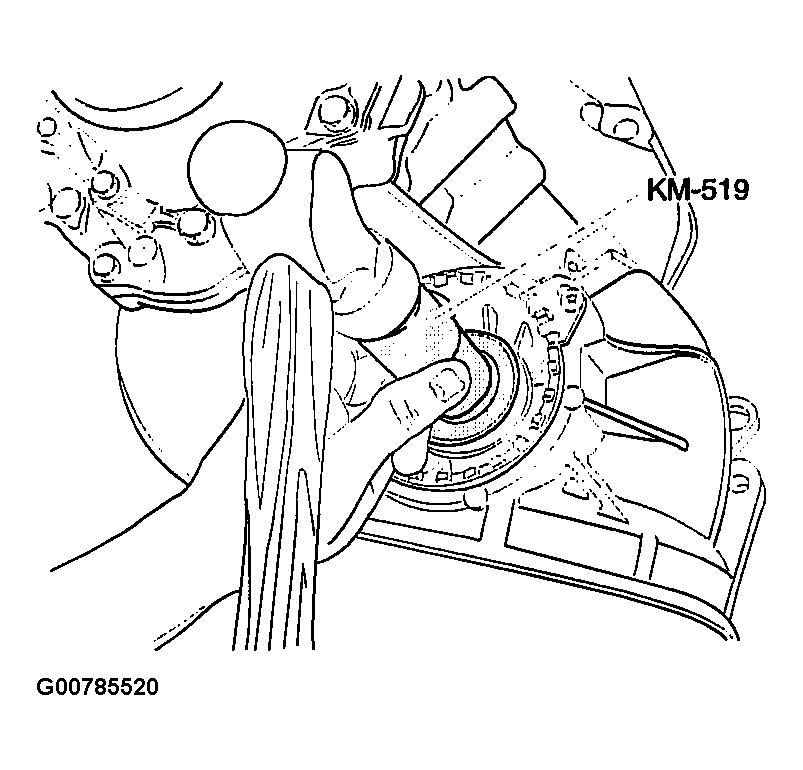

    Fig 1: Installing The Drive Axle
    G00785520Courtesy of SUZUKI OF AMERICA CORP.
