Speedometer Driven Gear Removal and Installation: Removal

  1. Disconnect the speedometer speed sensor electrical connector.

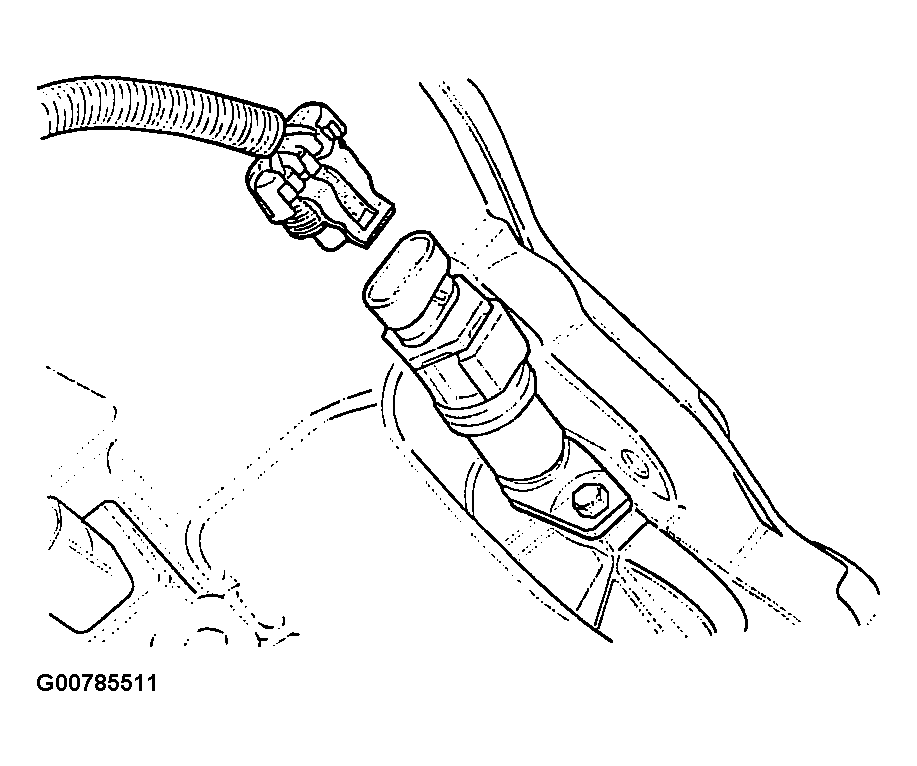

    Fig 1: Disconnecting The Speedometer Speed Sensor
    G00785511Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the speedometer housing retaining bolt.
  3. Remove the speedometer-driven gear and the speedometer housing.

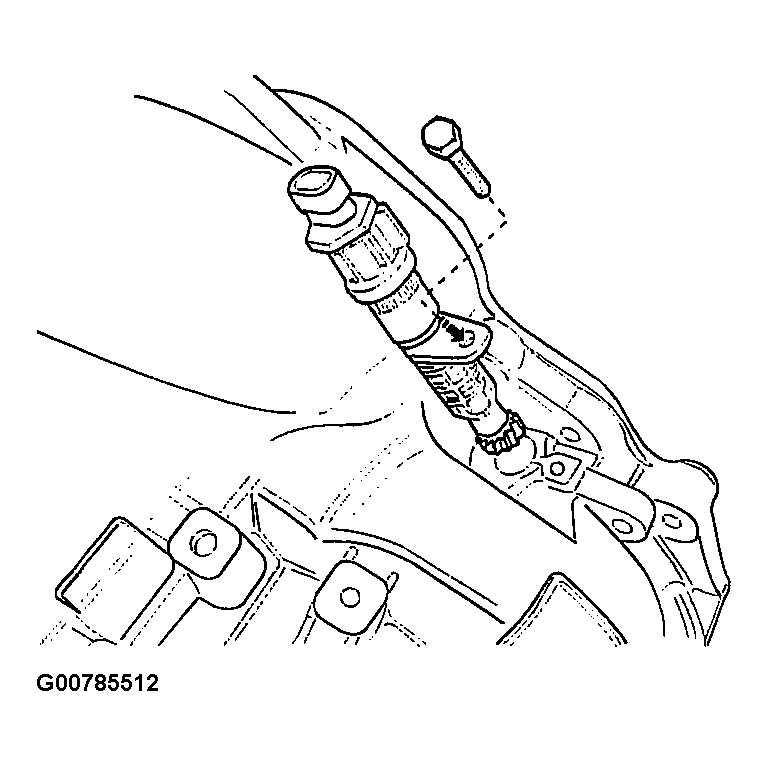

    Fig 2: Removing The Speedometer Gear & Housing
    G00785512Courtesy of SUZUKI OF AMERICA CORP.
