Speedometer Driven Gear Removal and Installation: Installation

Coat the O-ring with petroleum jelly.
Install the speedometer-driven gear and the speedometer housing.

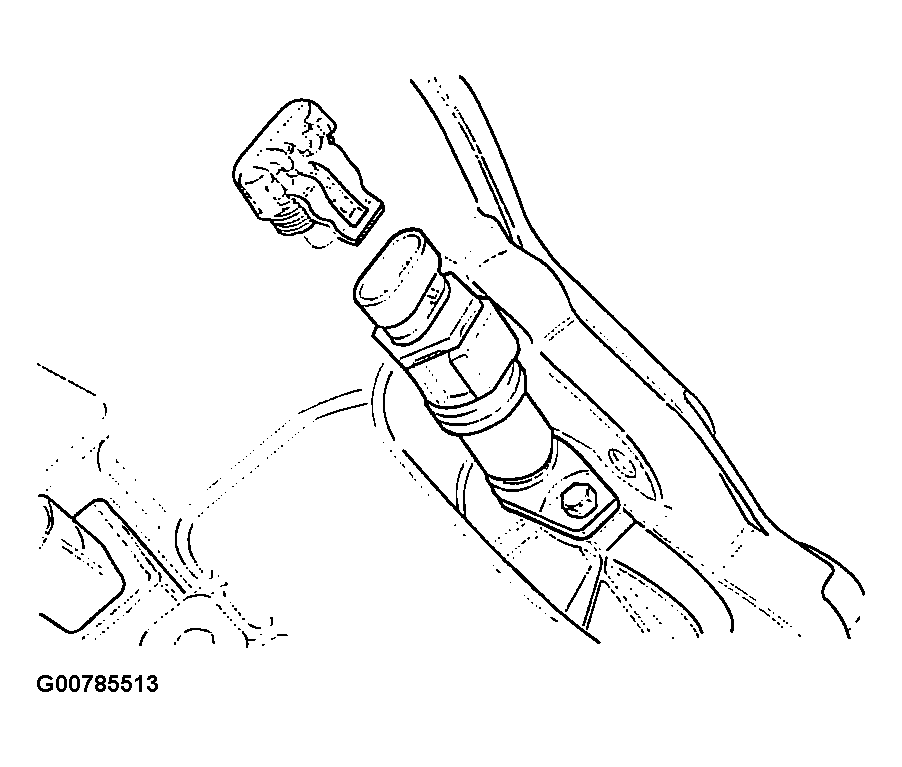

Fig 1: Installing The Speedometer Gear & Housing
Courtesy of SUZUKI OF AMERICA CORP.
Install the speedometer housing retaining bolt.
Tighten

Tighten the speedometer housing retaining bolt to 4 N.m (35 lb-in).
Connect the speedometer speed sensor electrical connector.

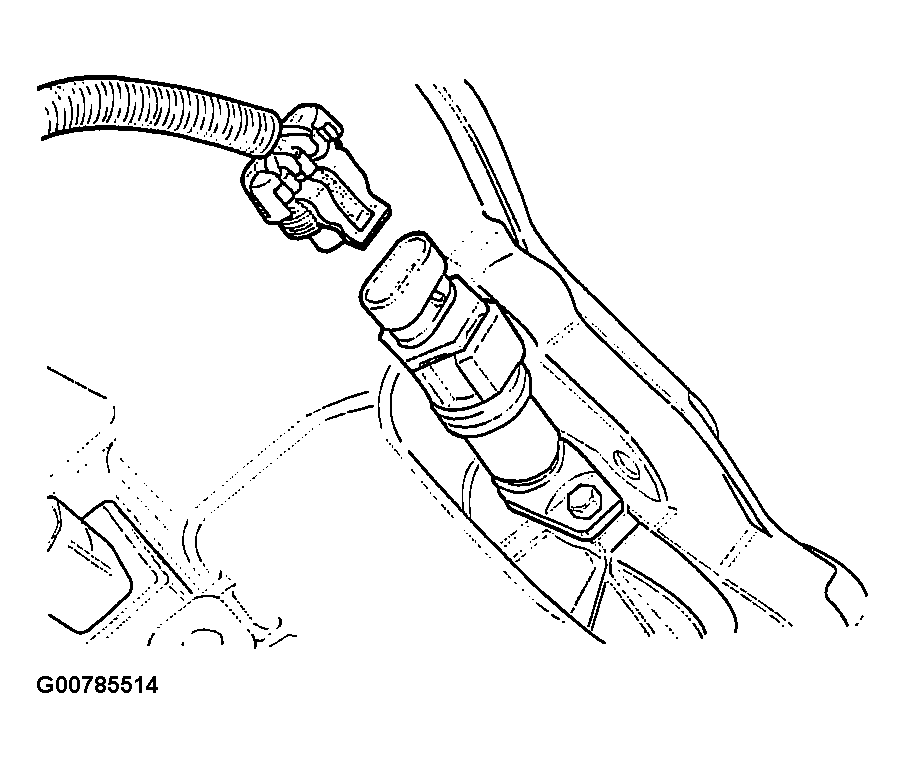

Fig 2: Connecting The Speedometer Speed Sensor
Courtesy of SUZUKI OF AMERICA CORP.
