Input Shaft and Cluster Gear Disassembly and Assembly: Disassembly

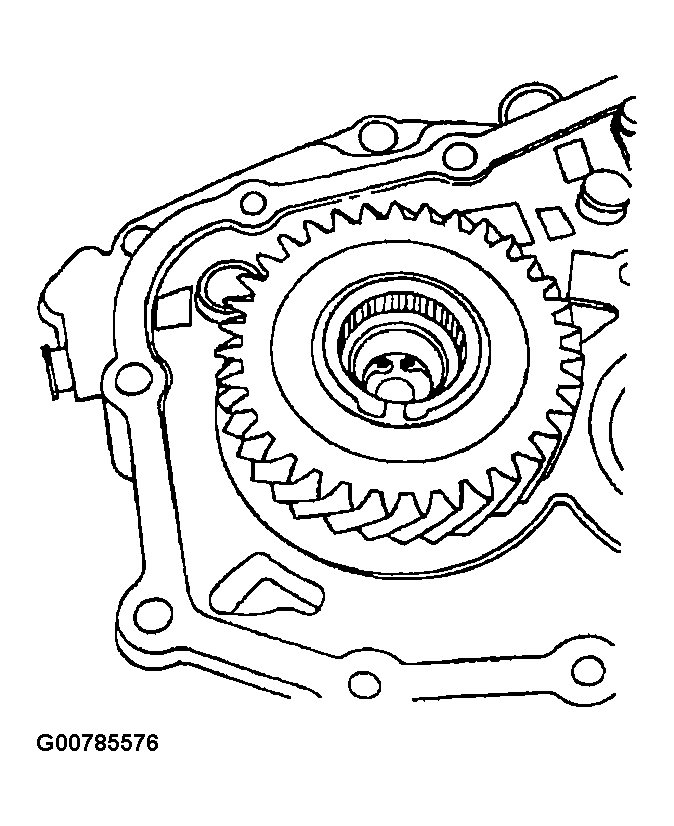

Remove the detent screw at the end of the input driveshaft.

Fig 1: Removing The Detent Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove the snap ring at the base of the gear cluster.

Fig 2: Removing The Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.

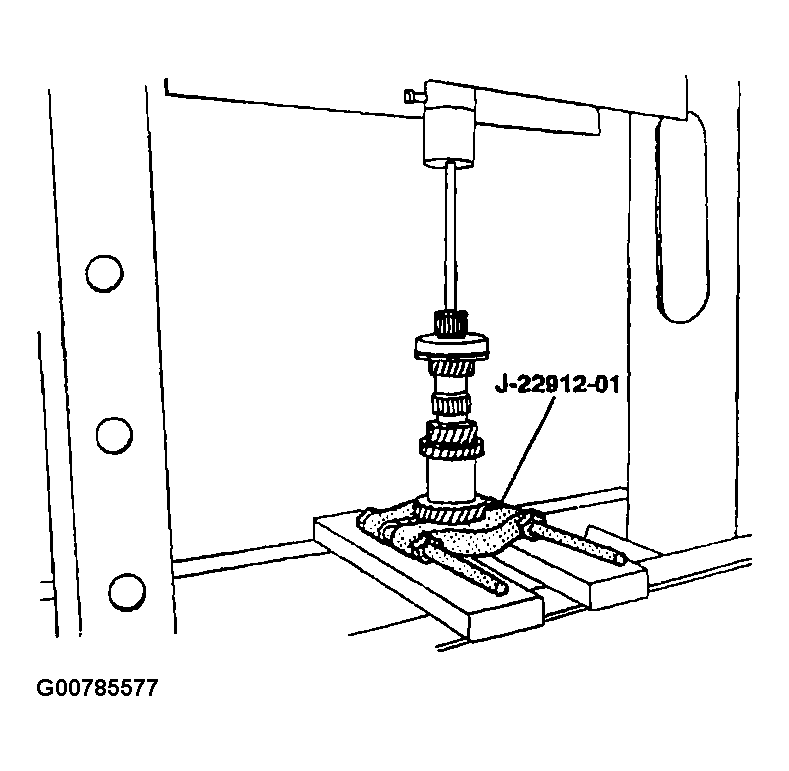

Press the input driveshaft from the input shaft cluster gear using the universal bearing puller J-22912-01.

Fig 3: Pressing The Input Driveshaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove the cluster shaft bearing from the input shaft gear cluster using universal bearing puller J-22912-01.

Fig 4: Removing The Cluster Shaft Bearing
Courtesy of SUZUKI OF AMERICA CORP.
