Input Shaft and Cluster Gear Disassembly and Assembly: Assembly

Press the cluster shaft bearing onto the input shaft gear cluster.

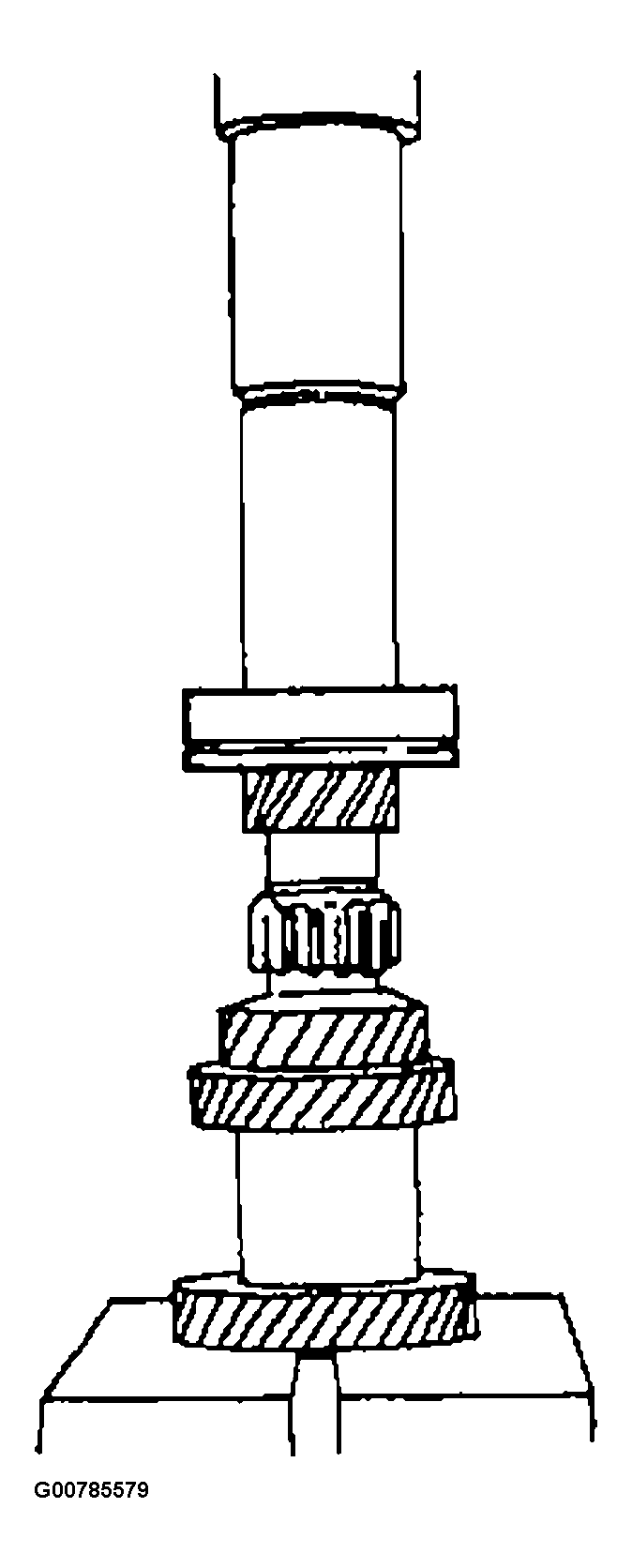

Fig 1: Pressing The Cluster Shaft Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Press the input driveshaft into the input shaft gear cluster assembly.

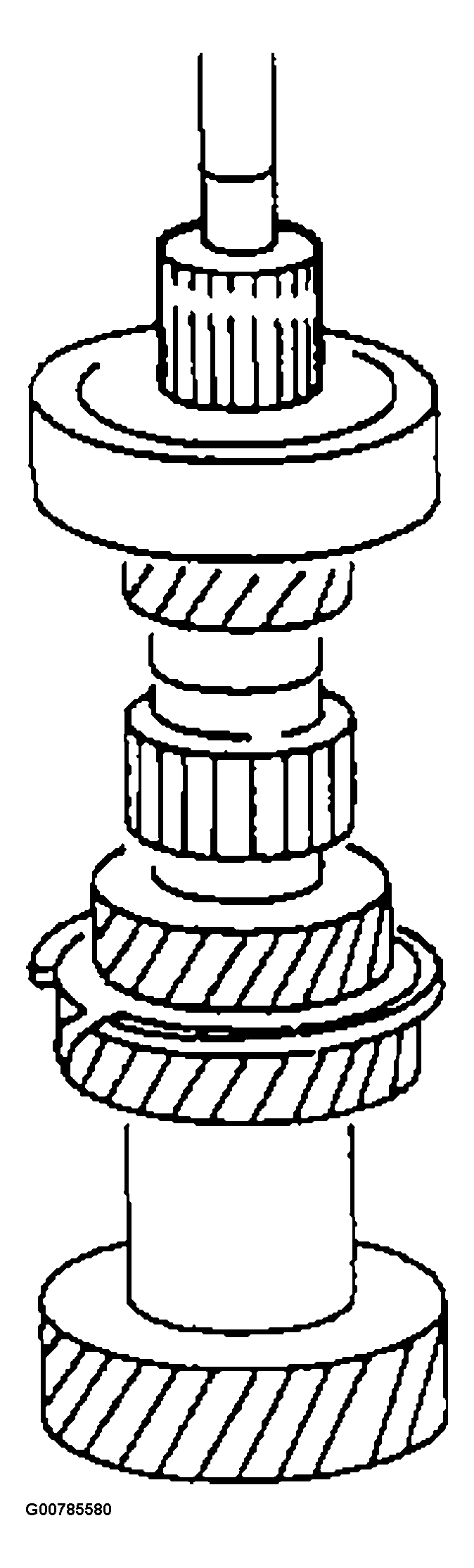

Fig 2: Pressing The Input Driveshaft
Courtesy of SUZUKI OF AMERICA CORP.
Install the snap ring at the base of the gear cluster.

Fig 3: Installing The Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.
Install the detent screw at the end of the input driveshaft.
Tighten

Tighten the input driveshaft detent screw to 15 N.m (11 lb-ft).

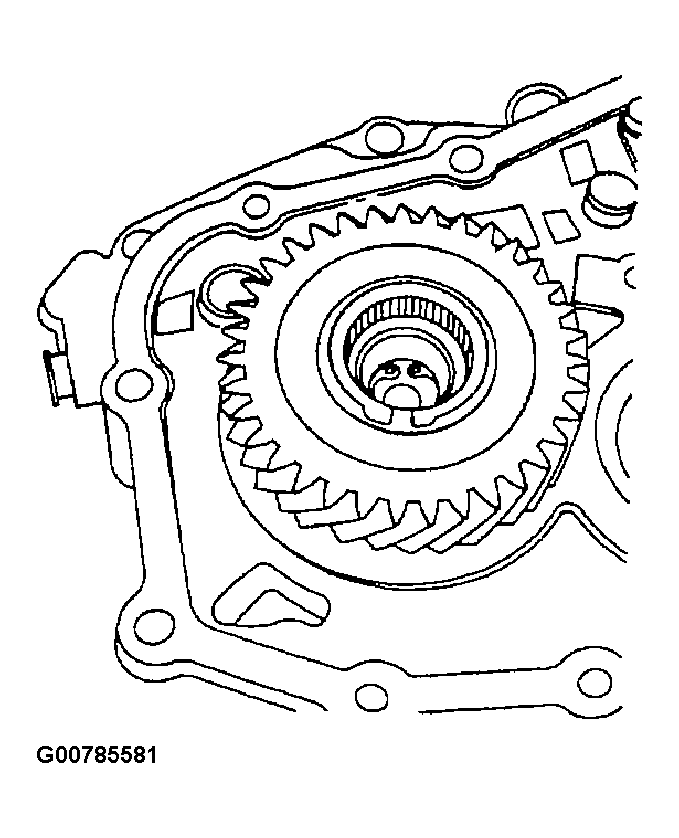

Fig 4: Installing The Detent Screw
Courtesy of SUZUKI OF AMERICA CORP.
