Housing Case Disassembly and Assembly: Disassembly

  1. Remove the transaxle from the vehicle. Refer to TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION .
  2. Remove the shift lever cover bolts and the shift lever cover. Do not disassemble the shift lever cover.

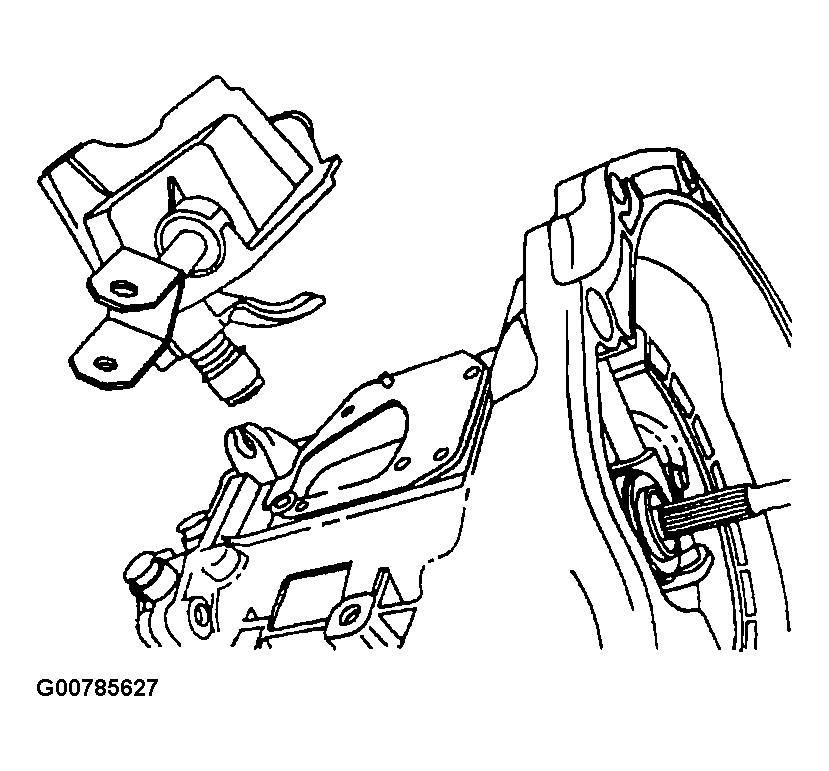

    Fig 1: Removing The Shift Lever Cover
    G00785627Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the transaxle cover bolts and the transaxle cover.

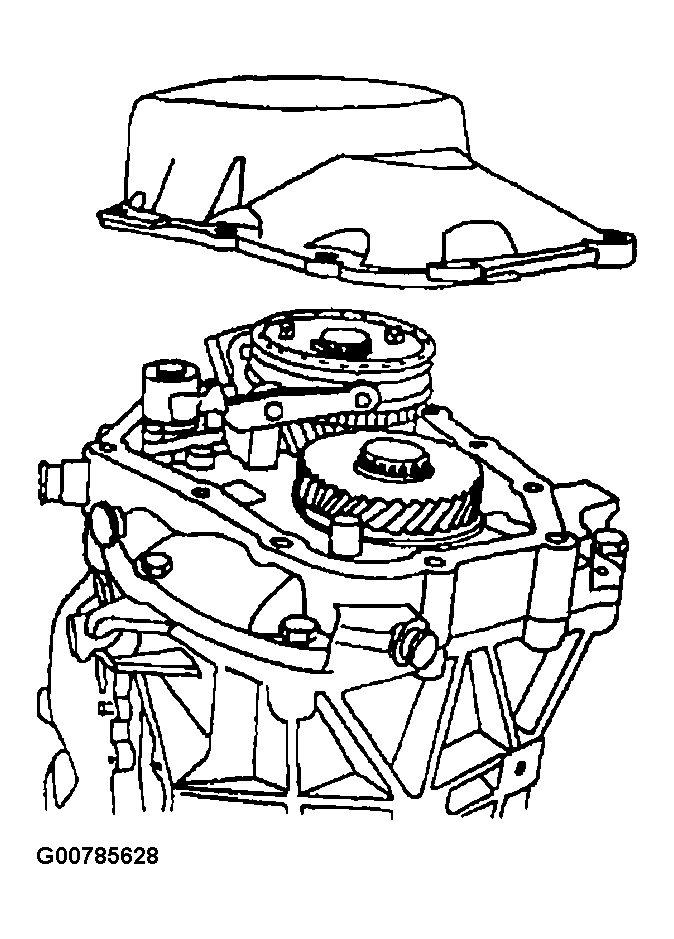

    Fig 2: Removing The Transaxle Cover
    G00785628Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the bearing plate bolts and the bearing plate, with the shafts attached. Do not disassemble the shafts.

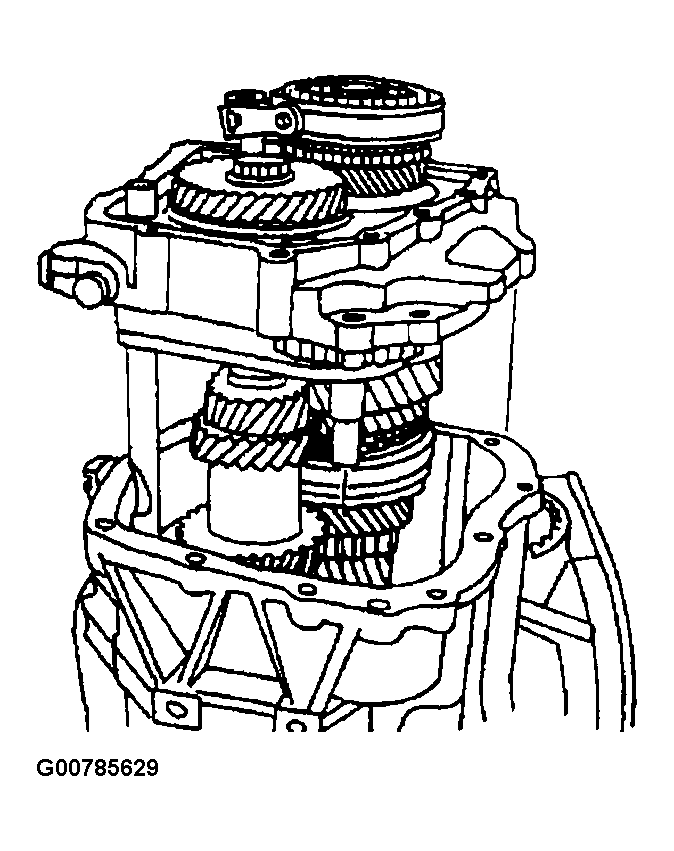

    Fig 3: Removing The Bearing Plate
    G00785629Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the differential from the transaxle housing. Do not disassemble the differential. Refer to Differential Disassembly and Assembly .
  6. Remove the backup lamp switch from the transaxle housing.

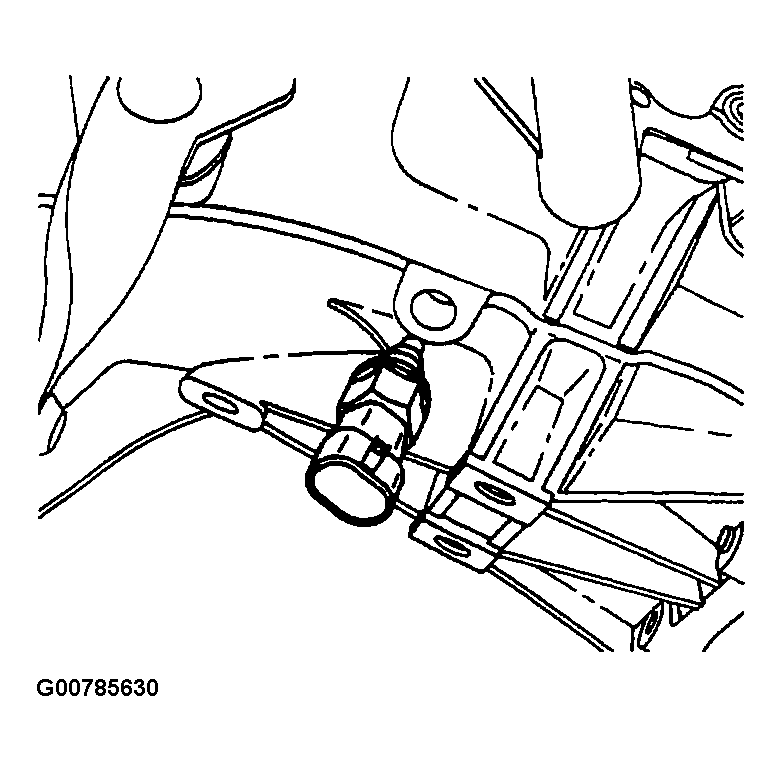

    Fig 4: Removing The Backup Lamp Switch
    G00785630Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the clutch-release bearing and the clutch-release bearing guide. CONCENTRIC SLAVE CYLINDER REMOVAL AND INSTALL .
  8. Remove the speedometer-driven gear bolt and the speedometer-driven gear from the transaxle housing.
    Fig 5: Removing The Speedometer-Driven Gear
    G00785631Courtesy of SUZUKI OF AMERICA CORP.
