Differential Disassembly and Assembly: Disassembly

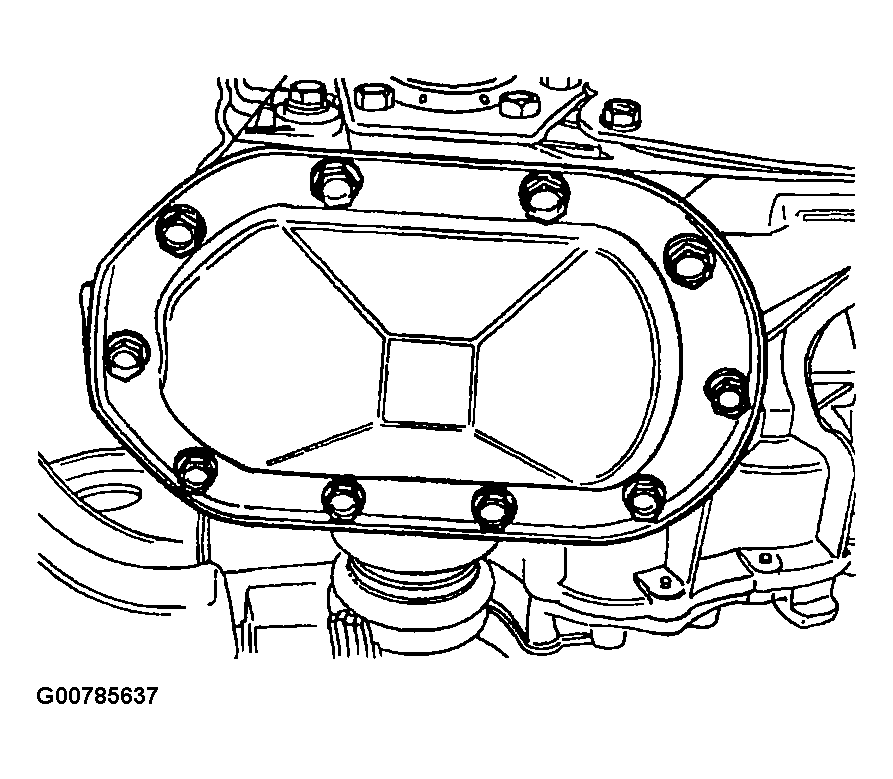

Remove the differential cover bolts, the differential cover, and the differential cover gasket.

Fig 1: Removing The Differential Cover
Courtesy of SUZUKI OF AMERICA CORP.

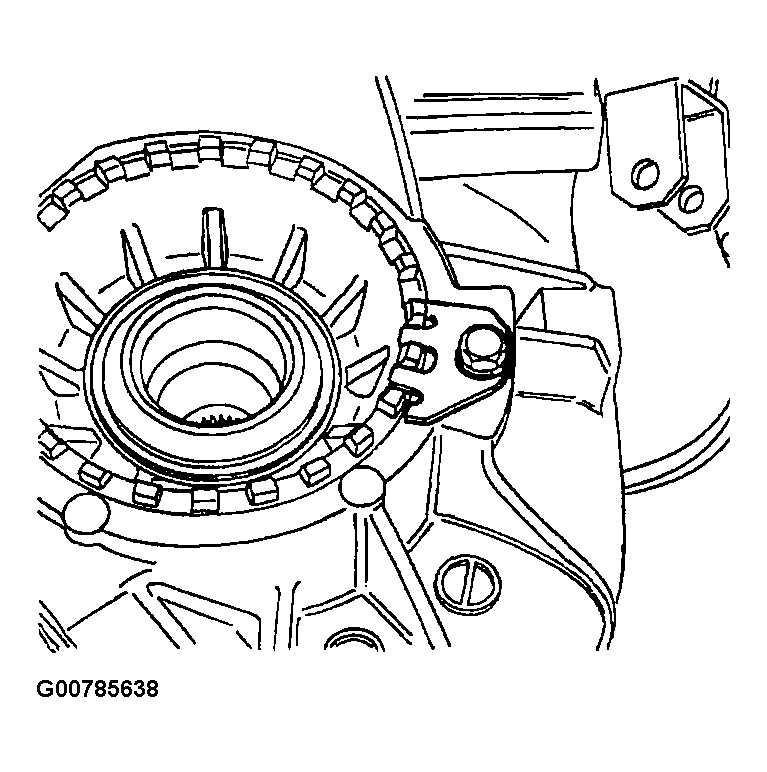

Remove the bearing-adjusting ring retainer plate bolt and the bearing-adjusting ring retainer plate.

Fig 2: Removing The Bearing-Adjusting Ring Retainer Plate
Courtesy of SUZUKI OF AMERICA CORP.

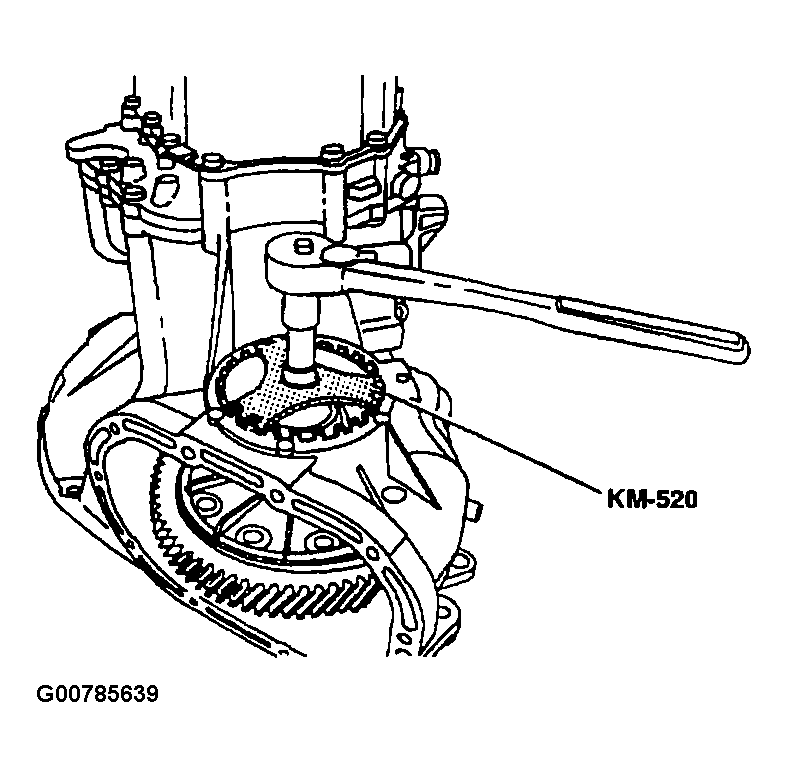

Remove the bearing-adjusting ring using the remover/installer KM-520.

Fig 3: Removing The Bearing-Adjusting Ring
Courtesy of SUZUKI OF AMERICA CORP.

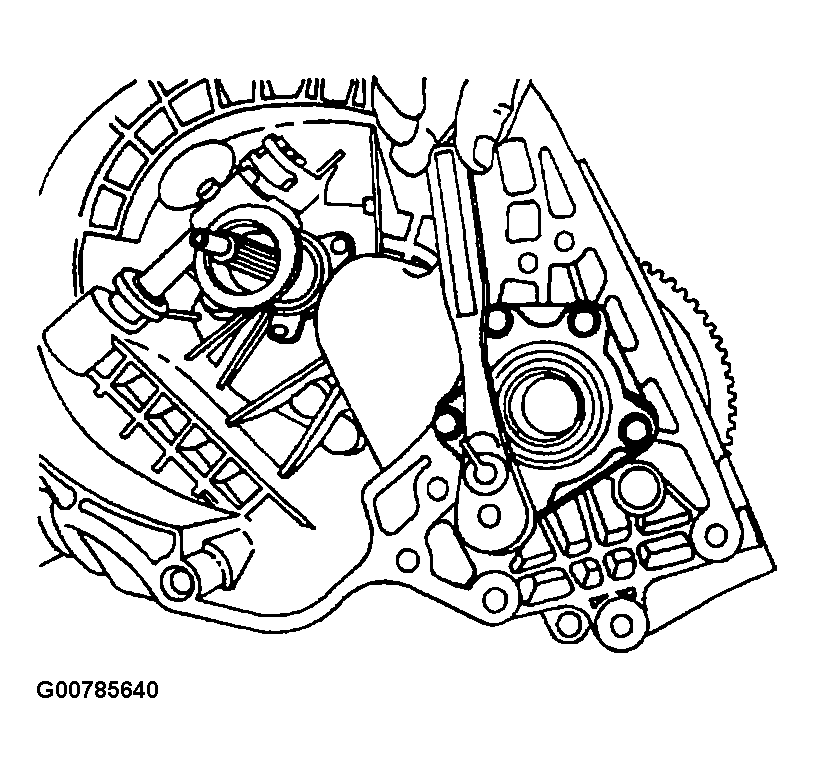

Remove the right-side bearing-retainer bolts and the right-side bearing retainer.

Fig 4: Removing The Right-Side Bearing-Retainer
Courtesy of SUZUKI OF AMERICA CORP.

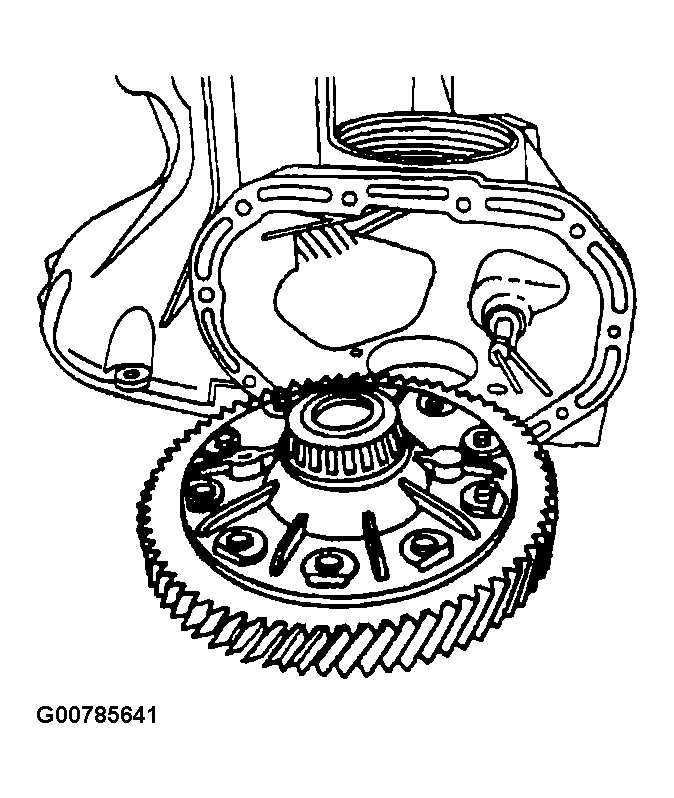

Remove the differential assembly from the transaxle case.

Fig 5: Removing The Differential Assembly
Courtesy of SUZUKI OF AMERICA CORP.

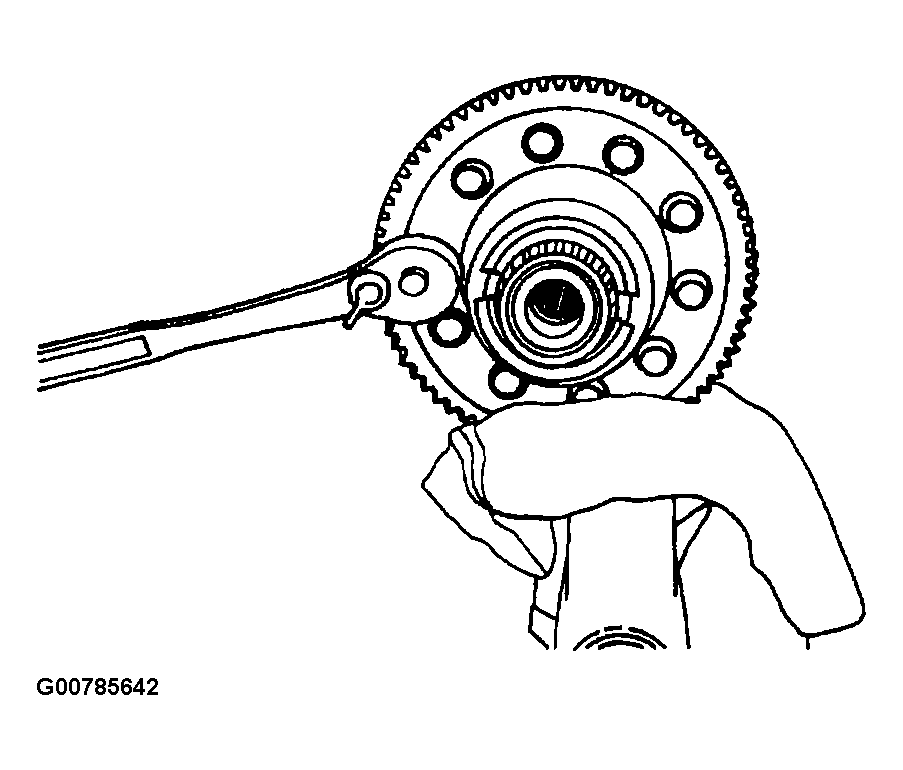

Remove the ring gear bolts.

Fig 6: Removing The Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.

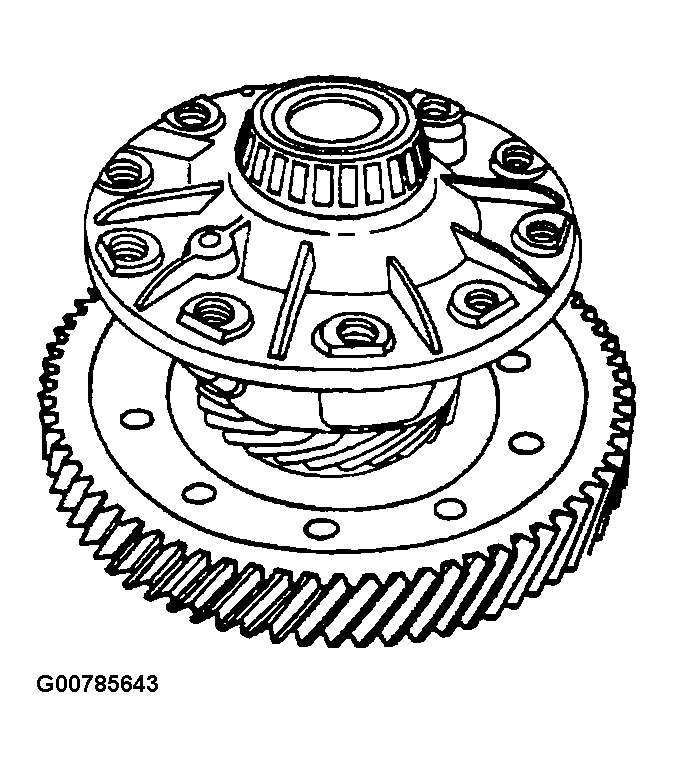

Separate the ring gear from the differential housing.

Fig 7: Separating The Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.

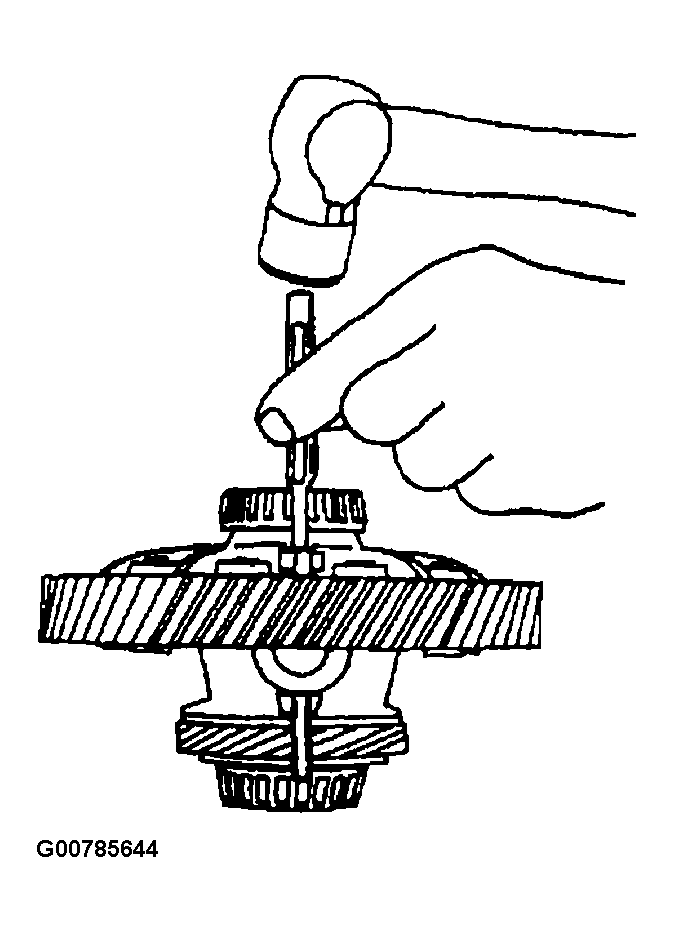

Drive the pinion gear shaft lock pin from the differential housing and the pinion gear shaft.

Fig 8: Driving Out The Pinion Gear Shaft Lock Pin
Courtesy of SUZUKI OF AMERICA CORP.

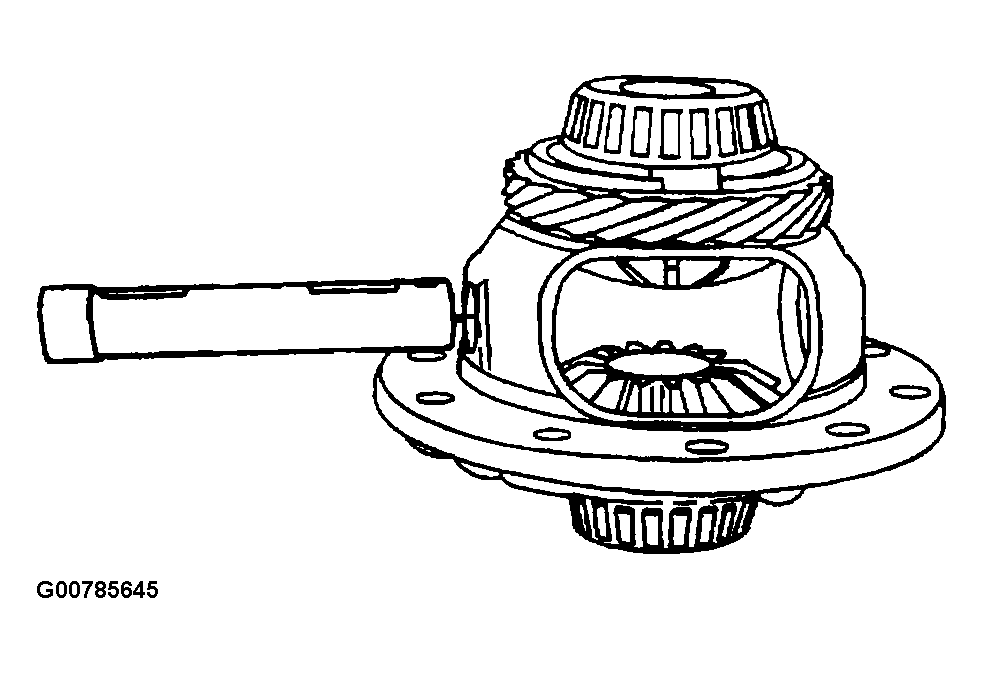

Remove the pinion gear shaft.

Fig 9: Removing The Pinion Gear Shaft
Courtesy of SUZUKI OF AMERICA CORP.

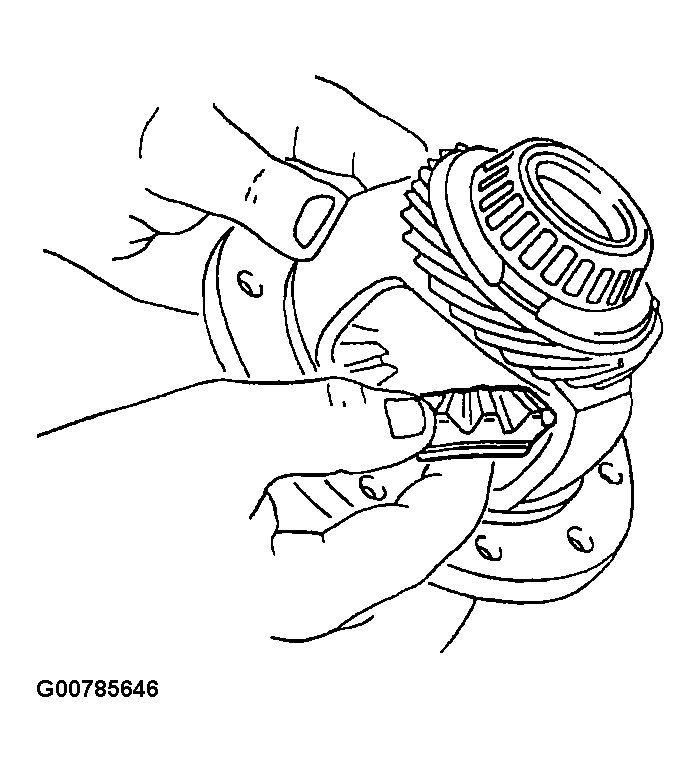

Remove the pinion gears and the washers.
Remove the side gears and the side thrust washers.

Fig 10: Removing The Side Gears & Side Thrust Washers
Courtesy of SUZUKI OF AMERICA CORP.

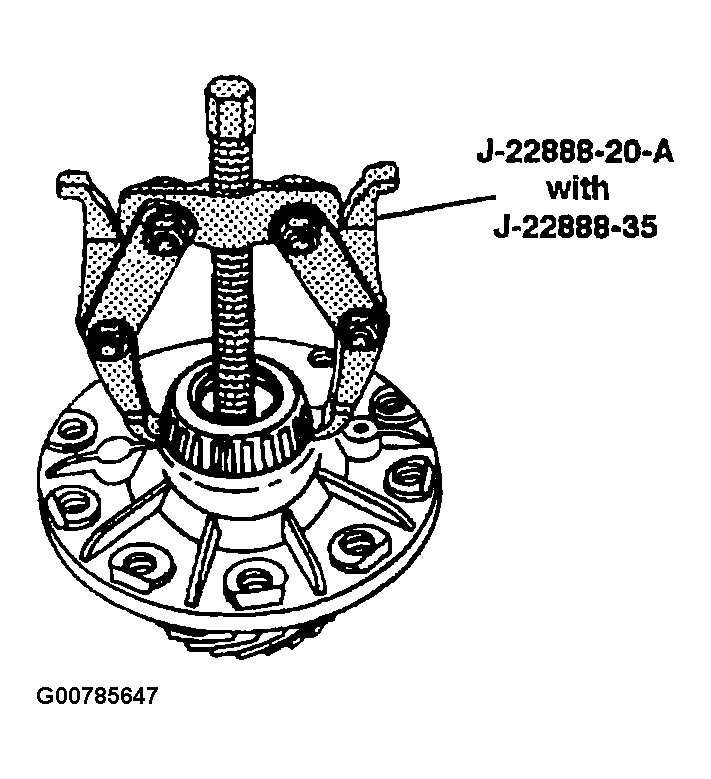

Remove both of the differential bearings using the bearing puller J-22888-20-A with the puller legs J-22888-35.

Fig 11: Removing Both Of The Differential Bearings
Courtesy of SUZUKI OF AMERICA CORP.
Remove the speedometer drive gear from the differential gear housing.

Fig 12: Removing The Speedometer Drive Gear
Courtesy of SUZUKI OF AMERICA CORP.
