Symptom Diagnosis

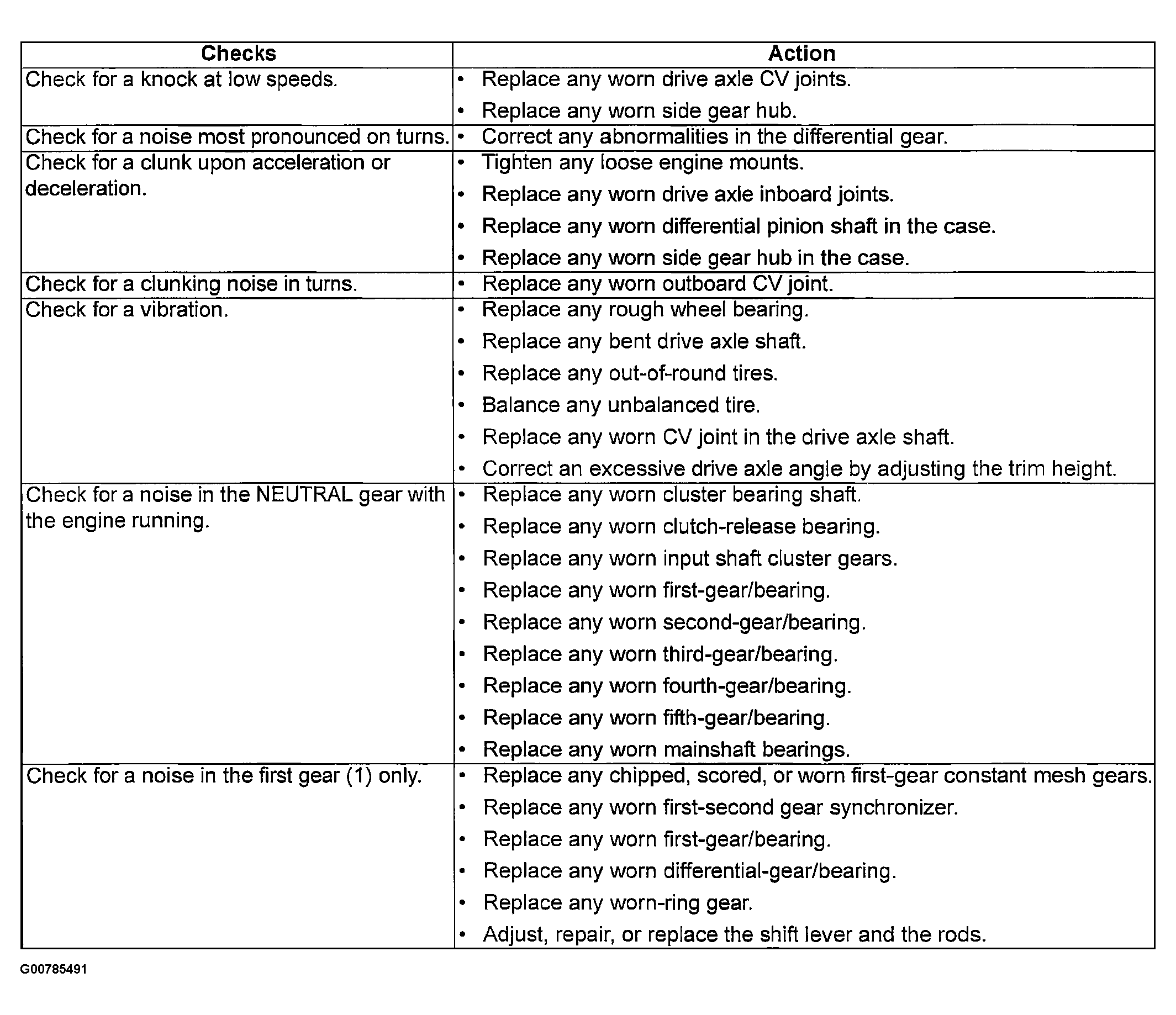

Fig 1: Symptom Diagnosis Chart (1 Of 3)
G00785491Courtesy of SUZUKI OF AMERICA CORP.

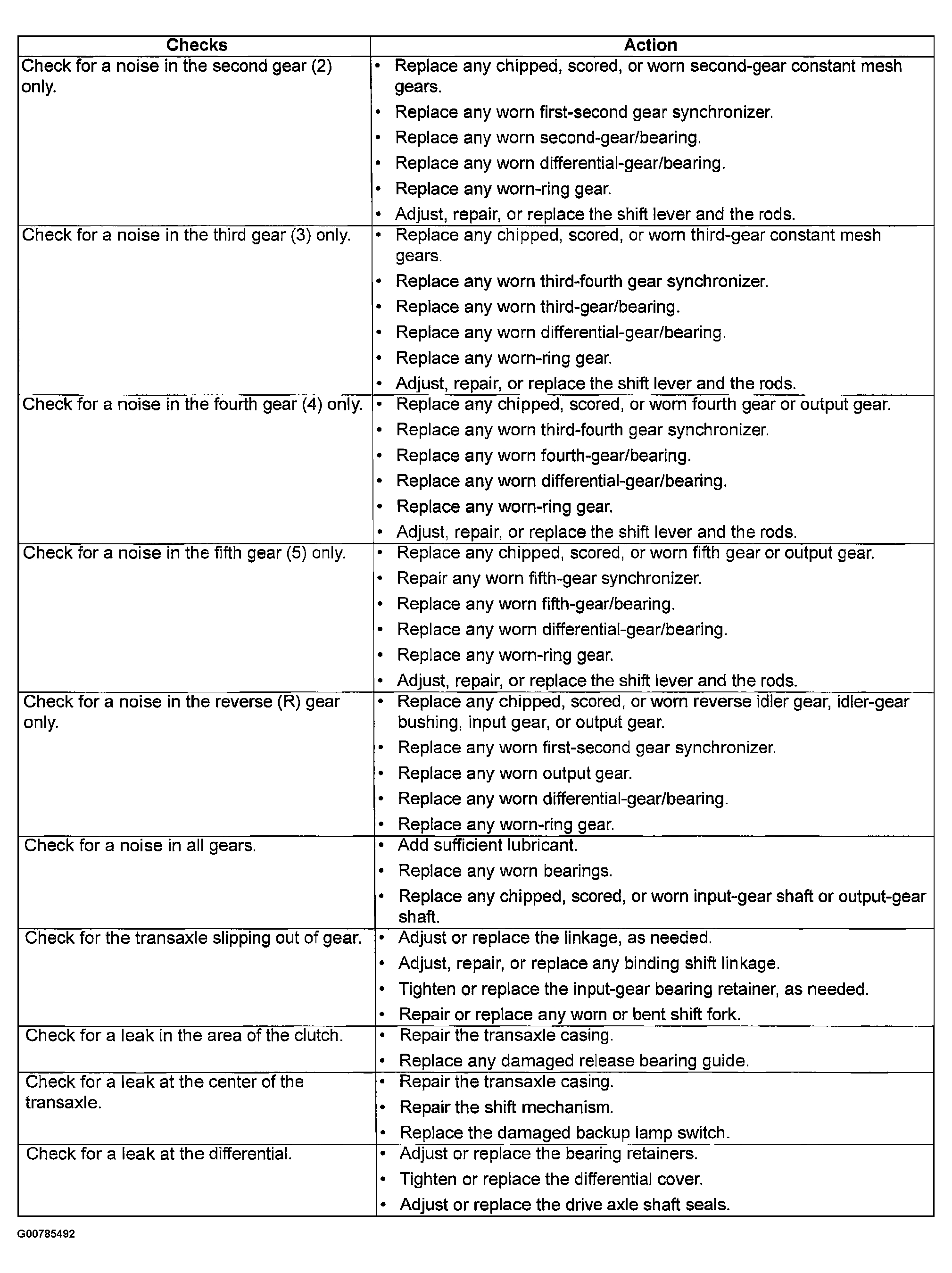

Fig 2: Symptom Diagnosis Chart (2 Of 3)
G00785492Courtesy of SUZUKI OF AMERICA CORP.

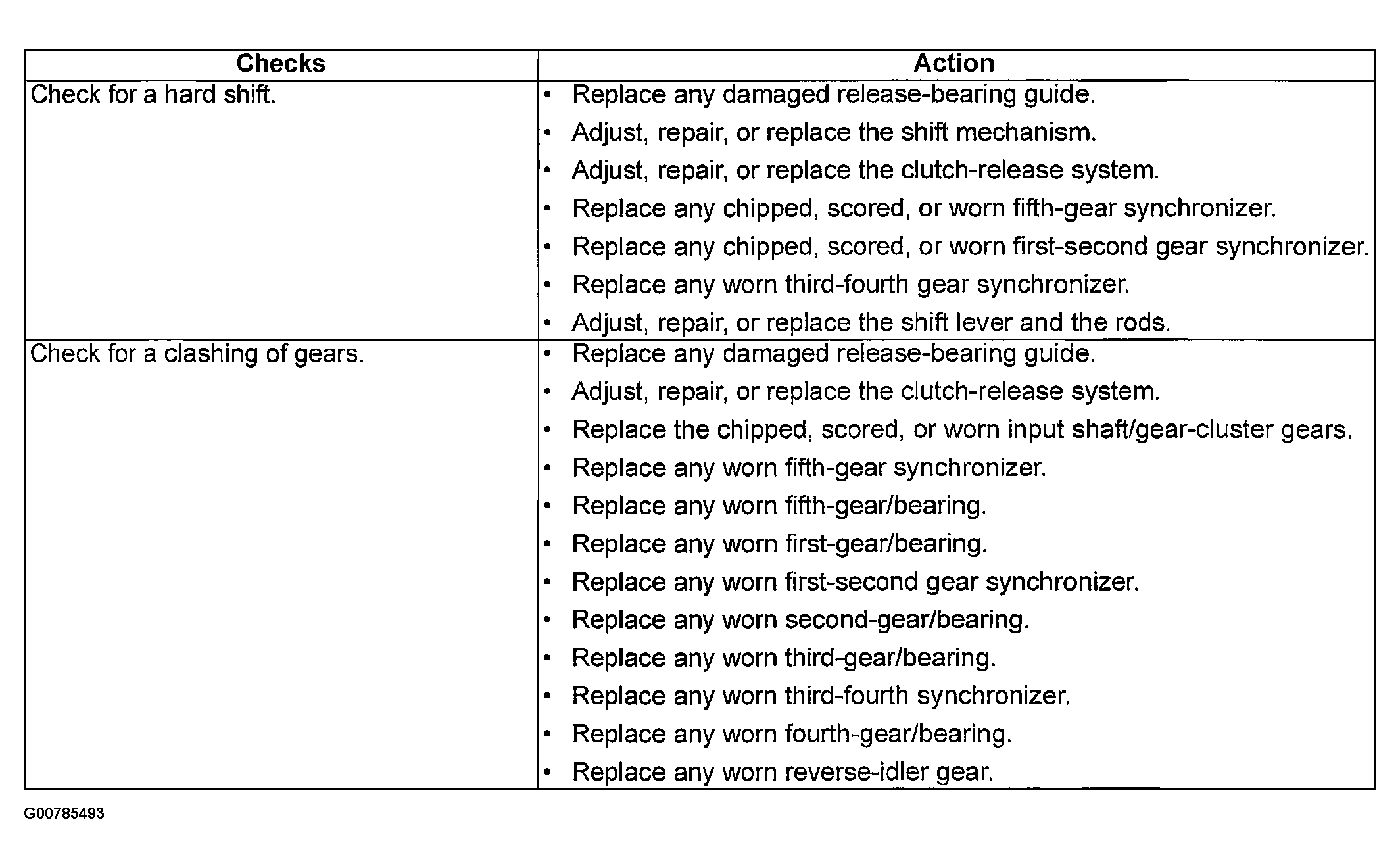

Fig 3: Symptom Diagnosis Chart (3 Of 3)
G00785493Courtesy of SUZUKI OF AMERICA CORP.
