Concentric Slave Cylinder Removal and Installation: Removal

Remove the transaxle from the vehicle. Refer to Transaxle Assembly Removal and Installation .
Remove the concentric slave cylinder retaining bolts.

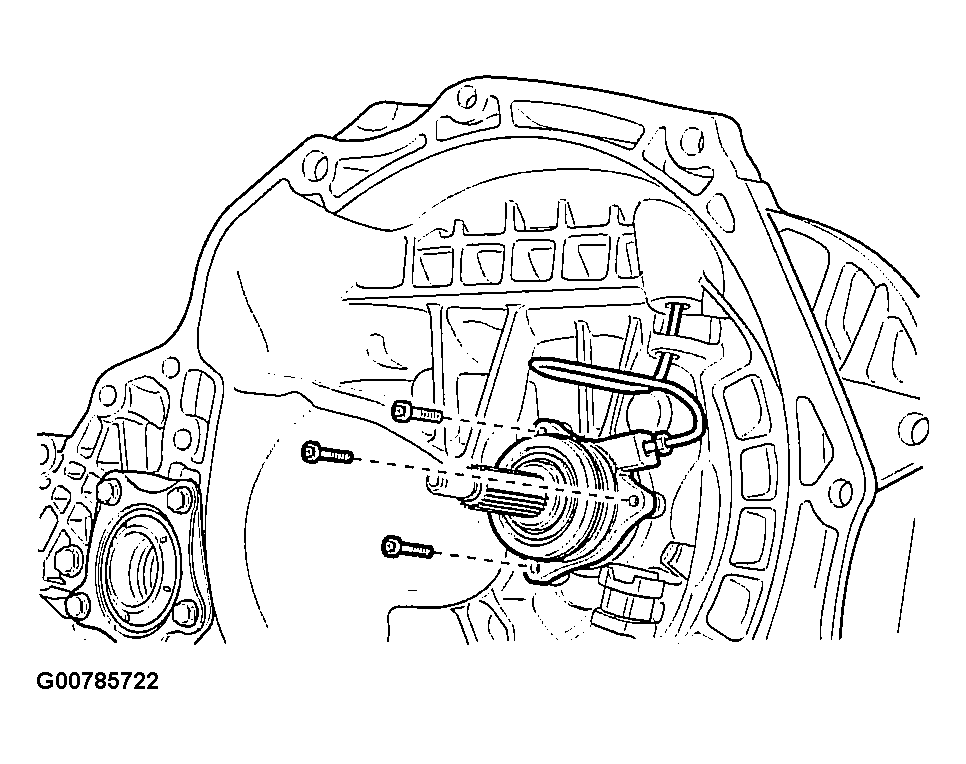

Fig 1: Removing The Concentric Slave Cylinder Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the concentric slave cylinder pipe from the concentric slave cylinder.

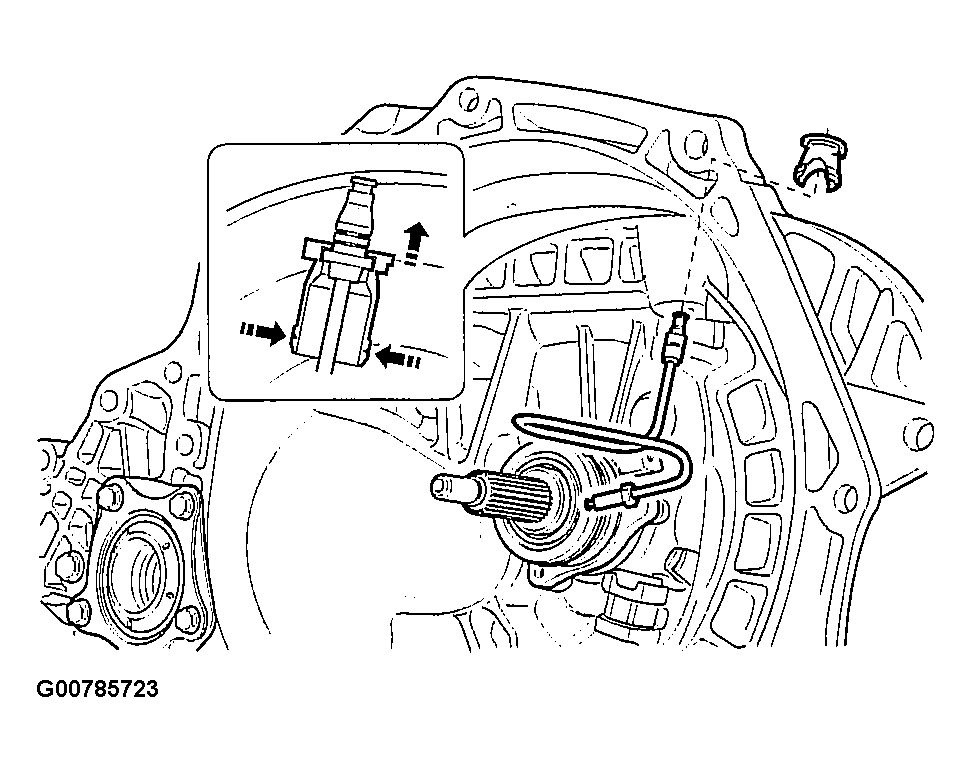

Fig 2: Disconnecting The Concentric Slave Cylinder Pipe
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: When removing the bushing, Make sure not to remove it with excessive force.
Remove the bushing from the concentric slave cylinder pipe in the transaxle housing.
Remove the concentric slave cylinder pipe.
NOTE: For removal or installation, make sure not to separate oil seal fixing spring from the back side of the concentric slave cylinder.
Remove the O-ring and the concentric slave cylinder.

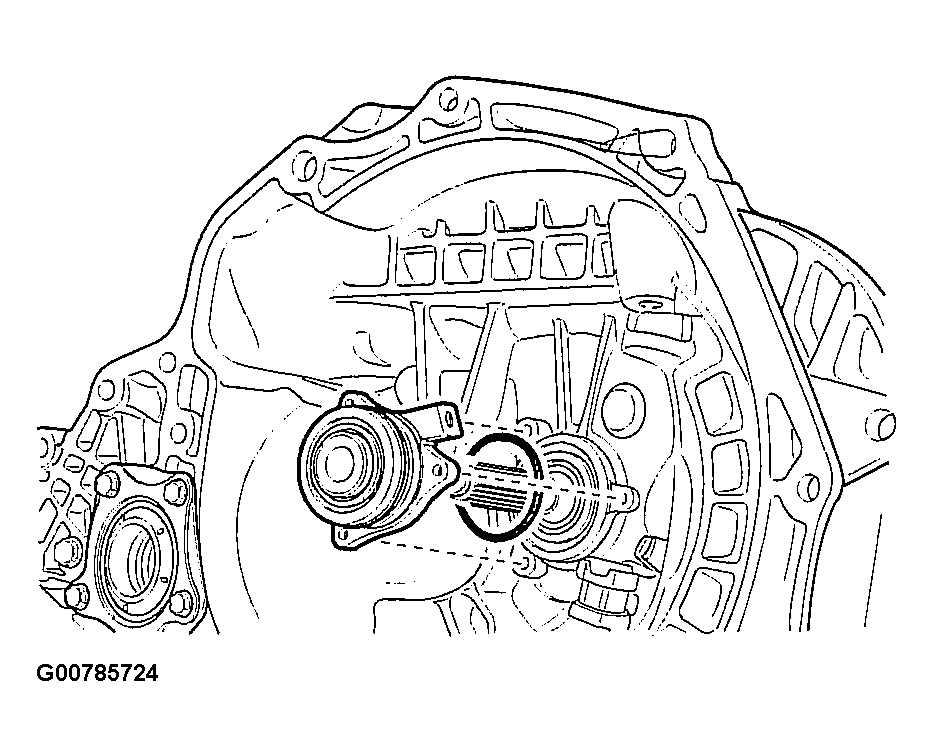

Fig 3: Removing The O-Ring.
Courtesy of SUZUKI OF AMERICA CORP.
