Clutch Master Cylinder Assembly Removal and Installation: Installation

Install the clutch master cylinder and clutch master cylinder nuts.
Tighten

Tighten the clutch master cylinder nuts to 22 N.m (16 lb-ft).

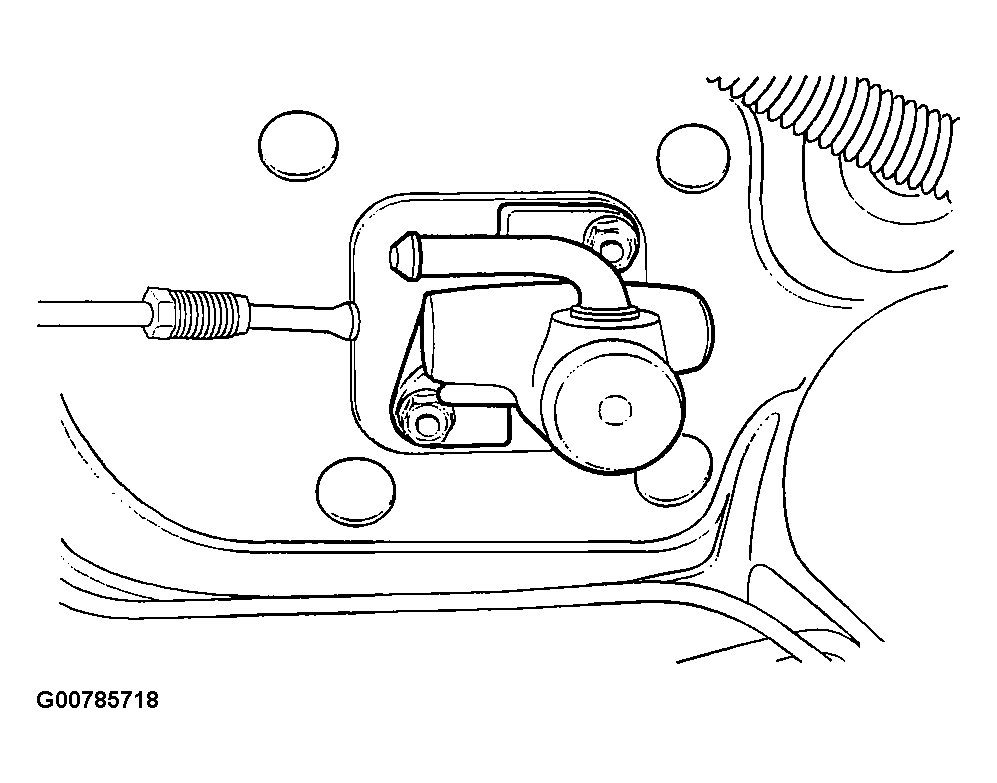

Fig 1: Installing The Clutch Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Install the master cylinder pipe.

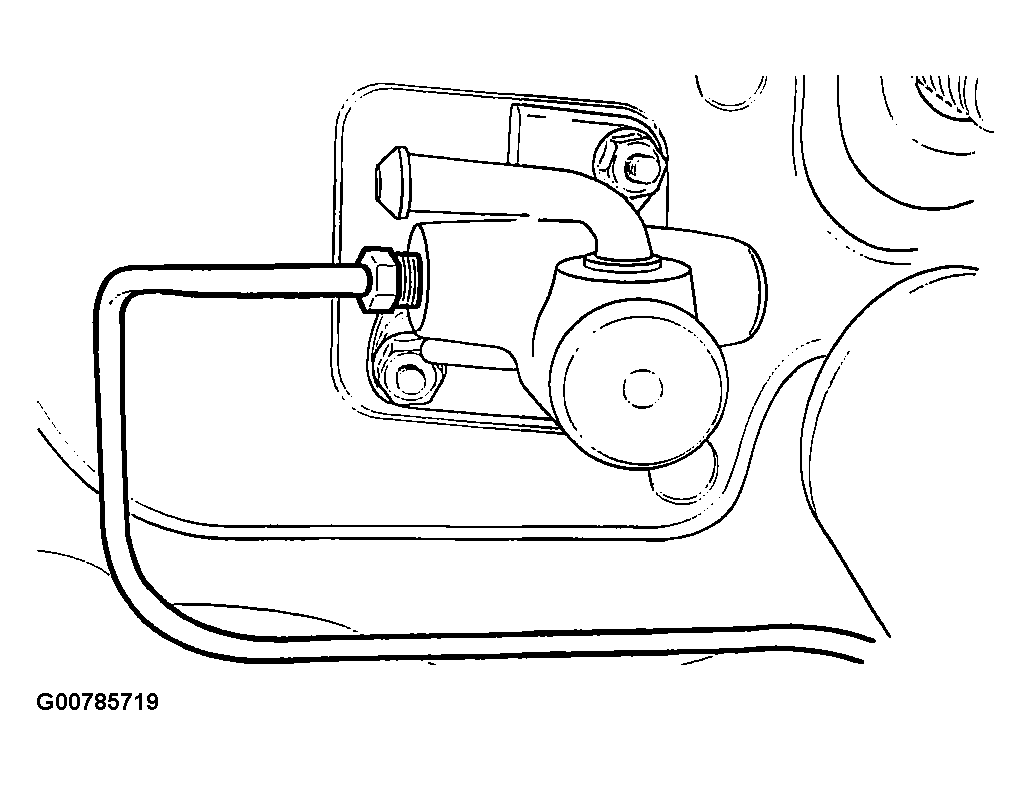

Fig 2: Installing The Master Cylinder Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Connect the master cylinder hose.
Connect the hose clamp on the master cylinder.

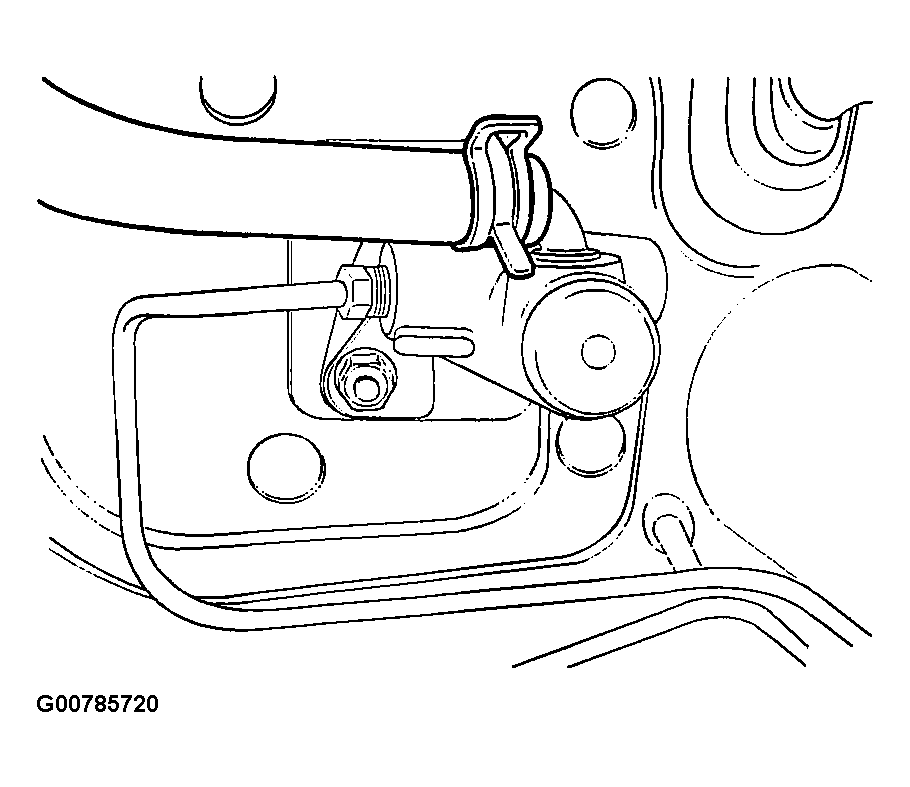

Fig 3: Connecting The Hose Clamp
Courtesy of SUZUKI OF AMERICA CORP.
Install the push rod fixing pin and push rod.
Install the locking clip.

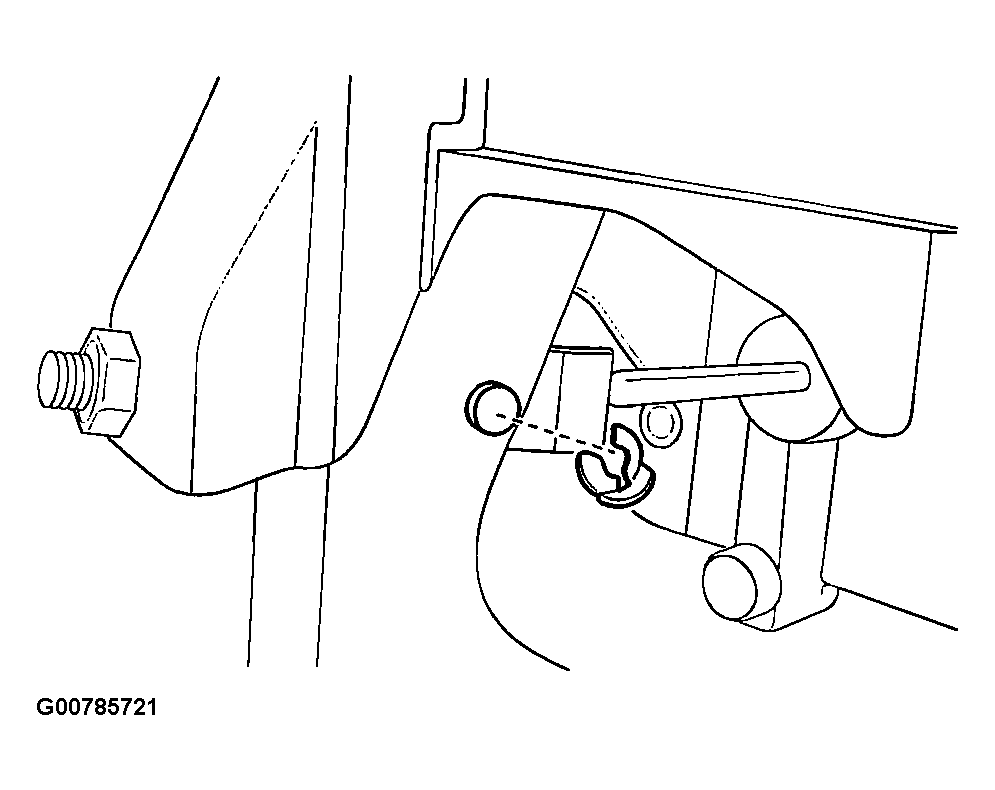

Fig 4: Installing The Locking Clip
Courtesy of SUZUKI OF AMERICA CORP.
Bleed the air. Refer to Air Bleeding .
Adjust the clutch pedal. Refer to Clutch Pedal Adjustment .
Fill the reservoir with clutch/brake fluid up to the proper level.
