Removal & Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disconnect negative battery cable. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove glove box. Disconnect passenger-side air bag module connector. Remove bolts securing passenger-side air bag module to instrument panel. Remove passenger-side air bag module. See Fig 1.
To install, reverse removal procedure. Tighten air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

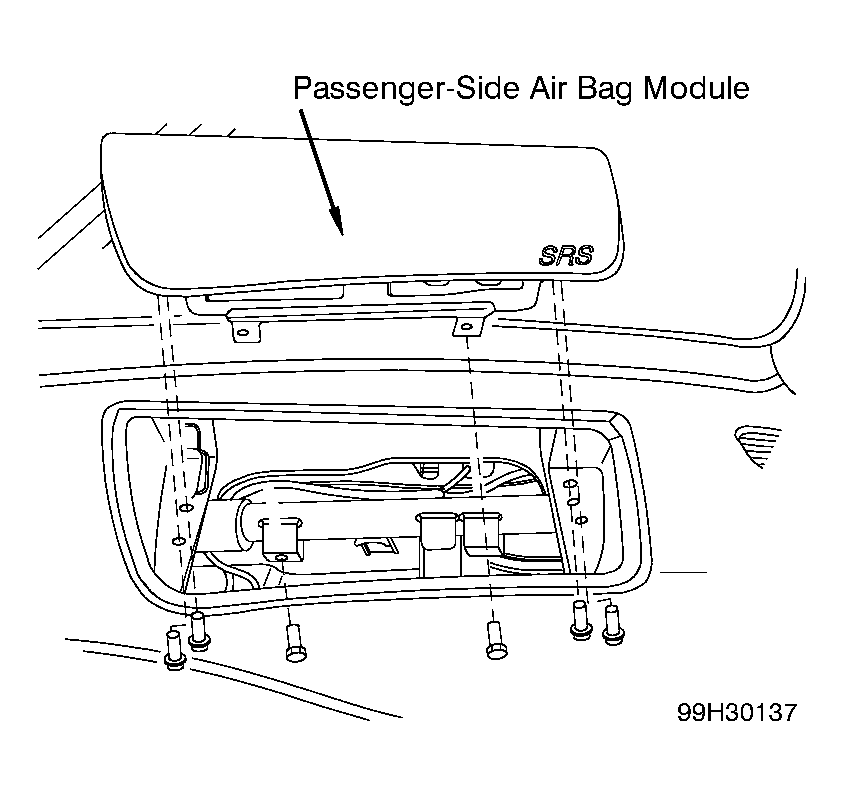

Fig 1: Identifying Passenger-side Air Bag Module

Courtesy of SUZUKI OF AMERICA CORP.
