Coolant Circulation

WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

While the engine is warmed up (thermostat closed), coolant circulates as follows.

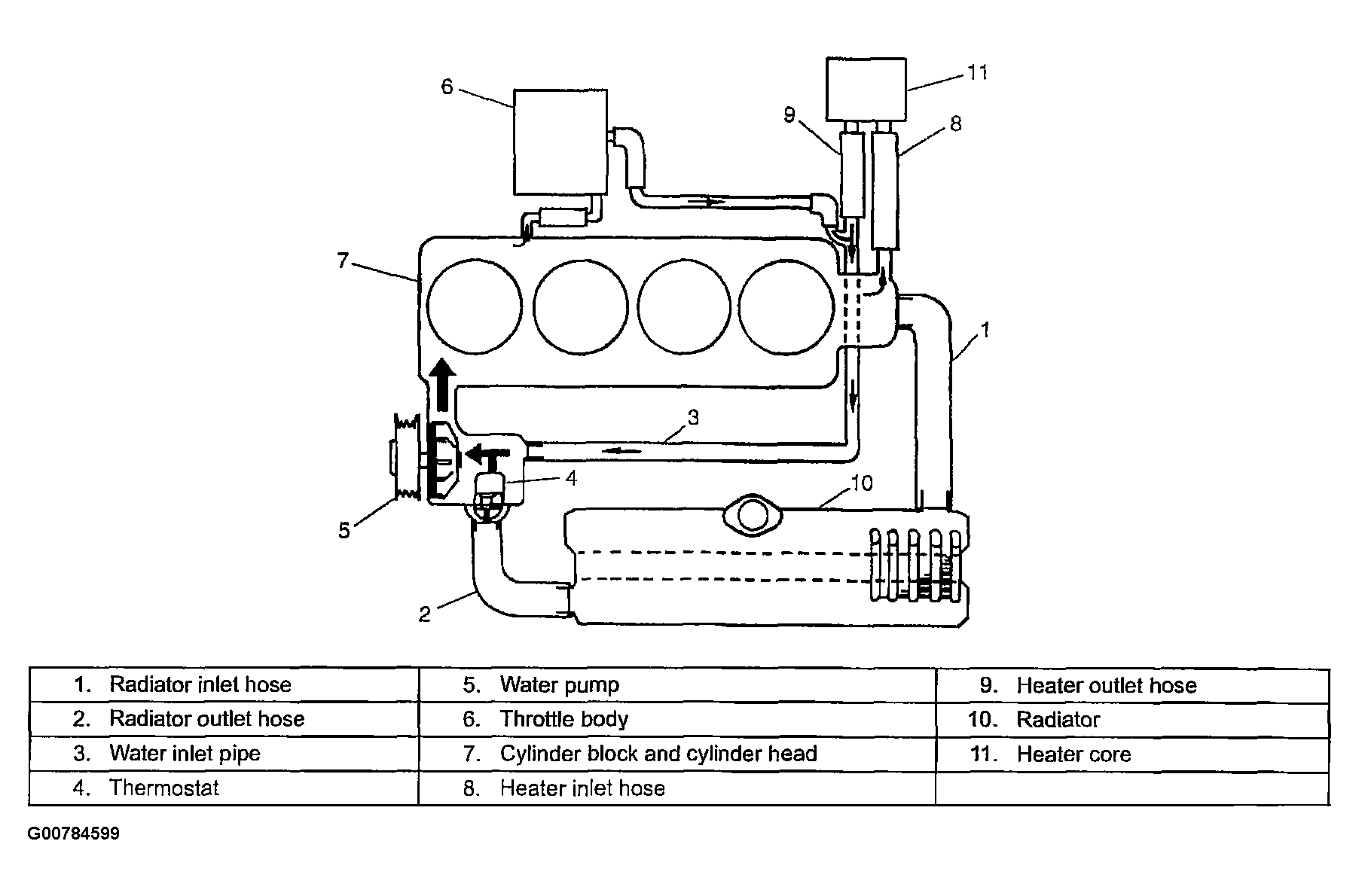

Fig 1: Identifying Coolant Circulation (While engine is warmed up)
Courtesy of SUZUKI OF AMERICA CORP.
When coolant is warmed up to specified temperature and the thermostat opens, coolant passes through the radiator core to be cooled as well as the flow circuit.

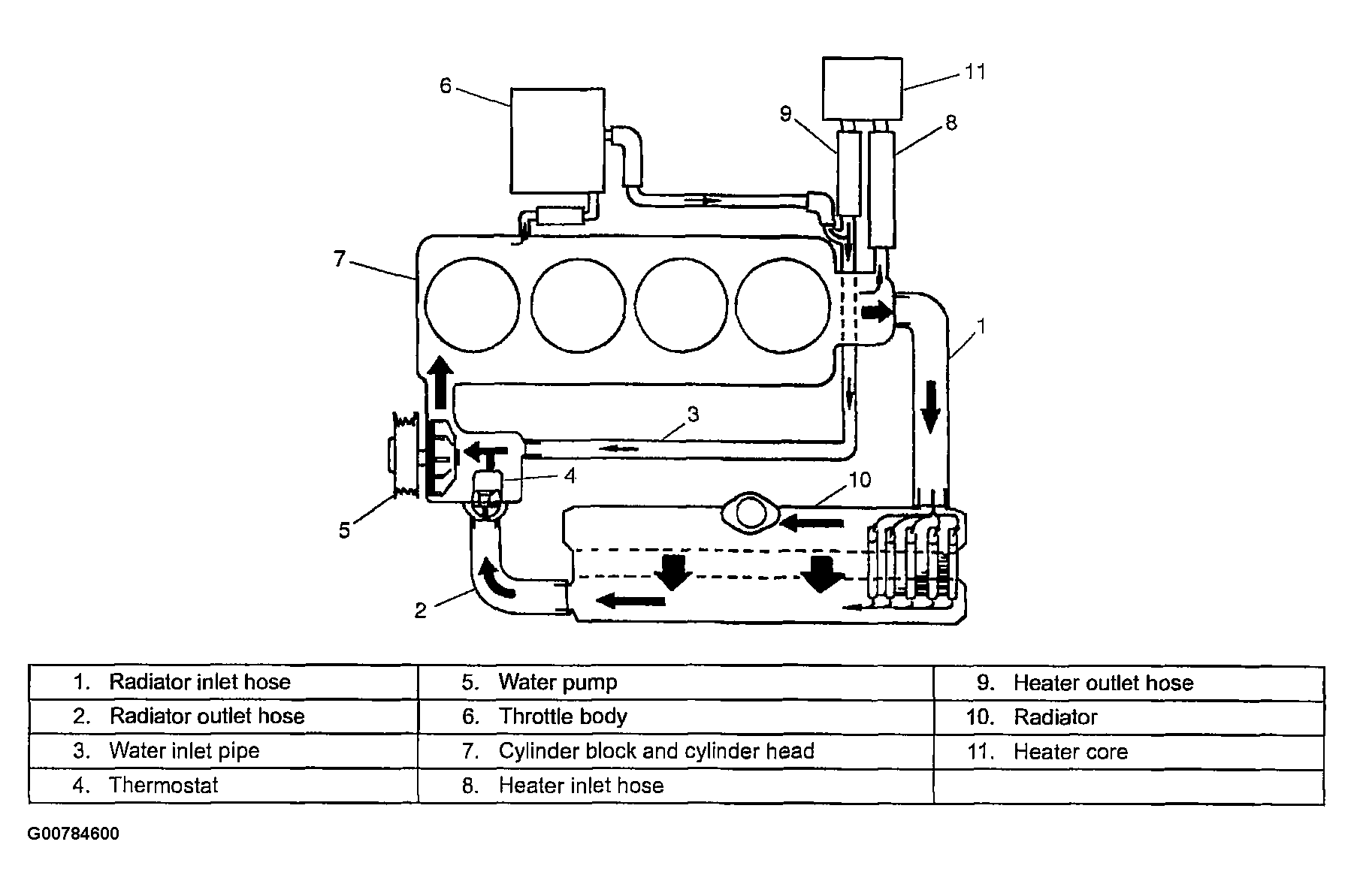

Fig 2: Identifying Coolant Circulation (When coolant is warmed up)
Courtesy of SUZUKI OF AMERICA CORP.
