Radiator Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Drain cooling system by loosening drain plug of radiator.
- Disconnect connector of cooling fan motor.
- Remove condenser cooling fan (if equipped with A/C).

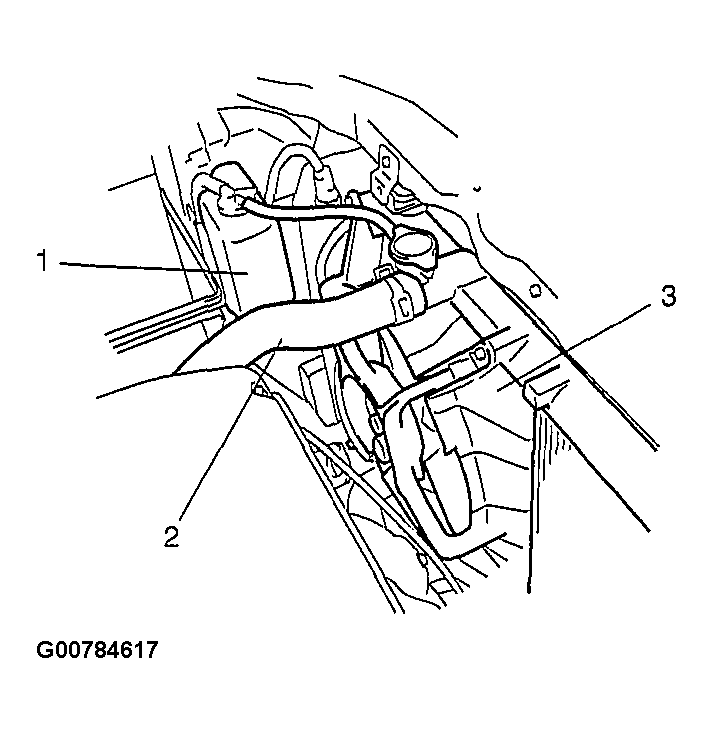

- Remove reservoir (1).
- Disconnect radiator inlet (2) and outlet hoses from radiator.
- Disconnect A/T fluid hoses from radiator, if equipped with A/T vehicle.
- Remove radiator cooling fan assembly (3).
- Remove radiator.
