Fuel Pressure Relief Procedure

Remove the fuel cap.
Remove the fuel pump fuse Ef18 from the engine fuse box.
Start the engine and allow the engine to stall.
Crank the engine for an additional 10 seconds.

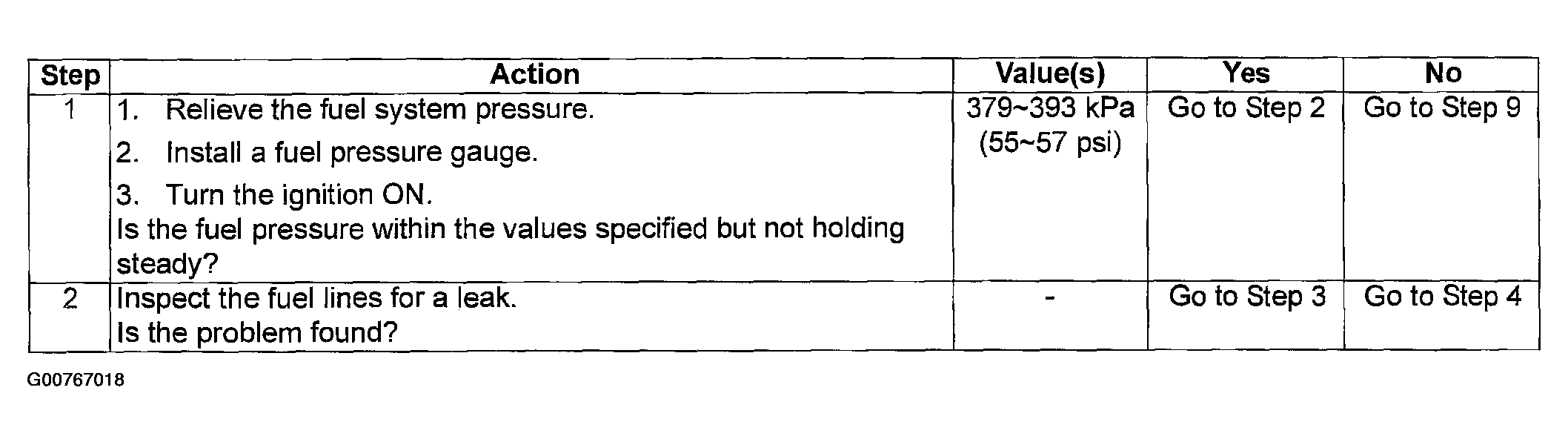

Fig 1: Fuel System Diagnosis Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

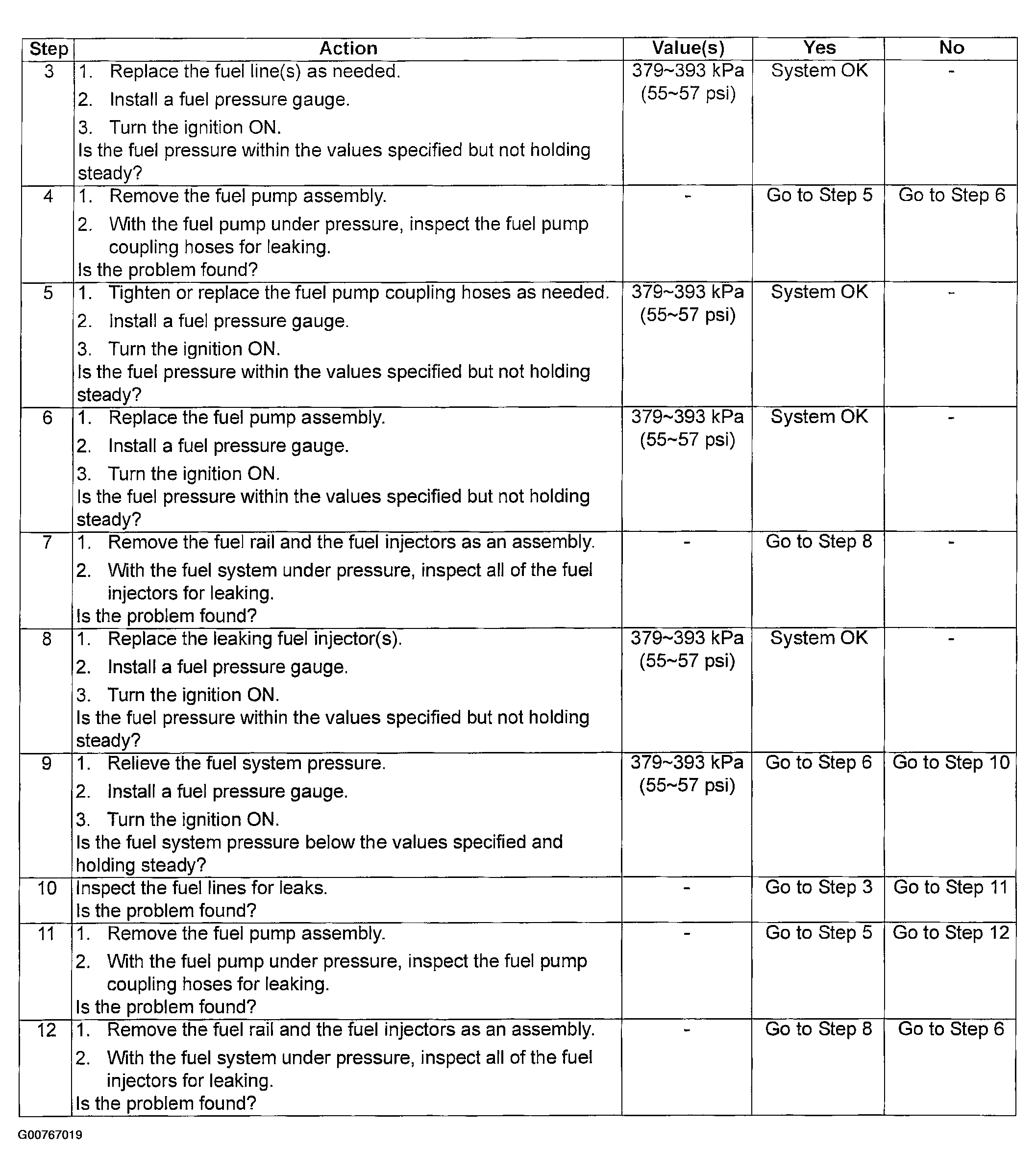

Fig 2: Fuel System Diagnosis Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
