Rear Wheel Speed Sensor Removal and Installation: Removal

1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Disconnect the rear wheel speed sensor electrical connector.

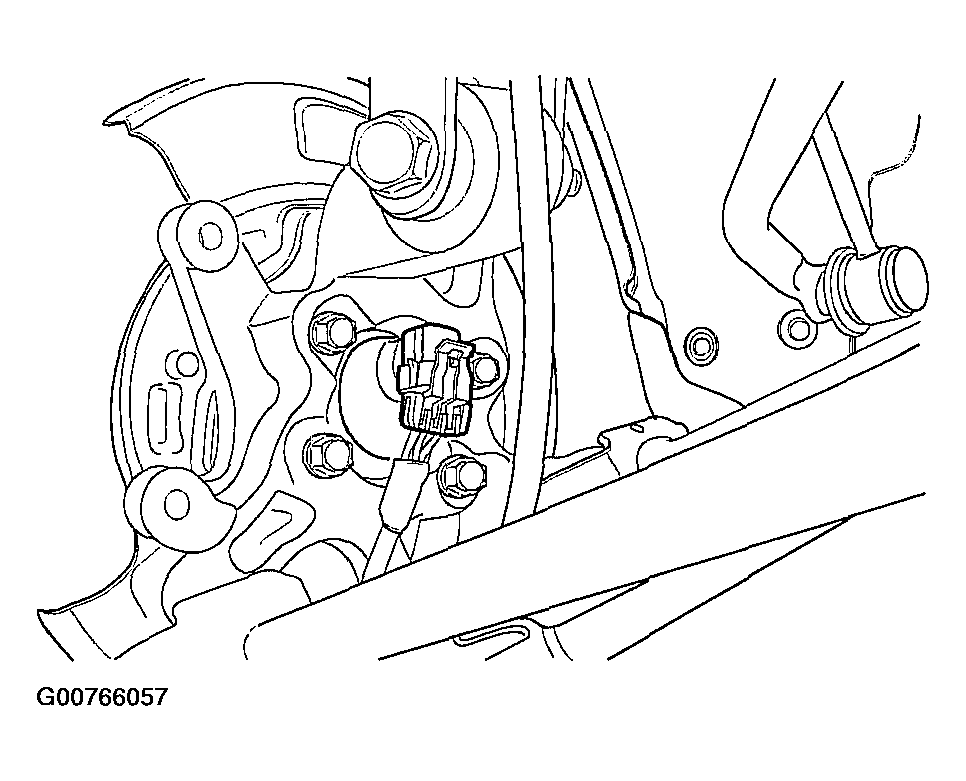

   Fig 1: Disconnecting The Rear Wheel Speed Sensor Electrical Connector

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the rear hub unit from the knuckle assembly, because the wheel speed sensor is not serviceable separately.

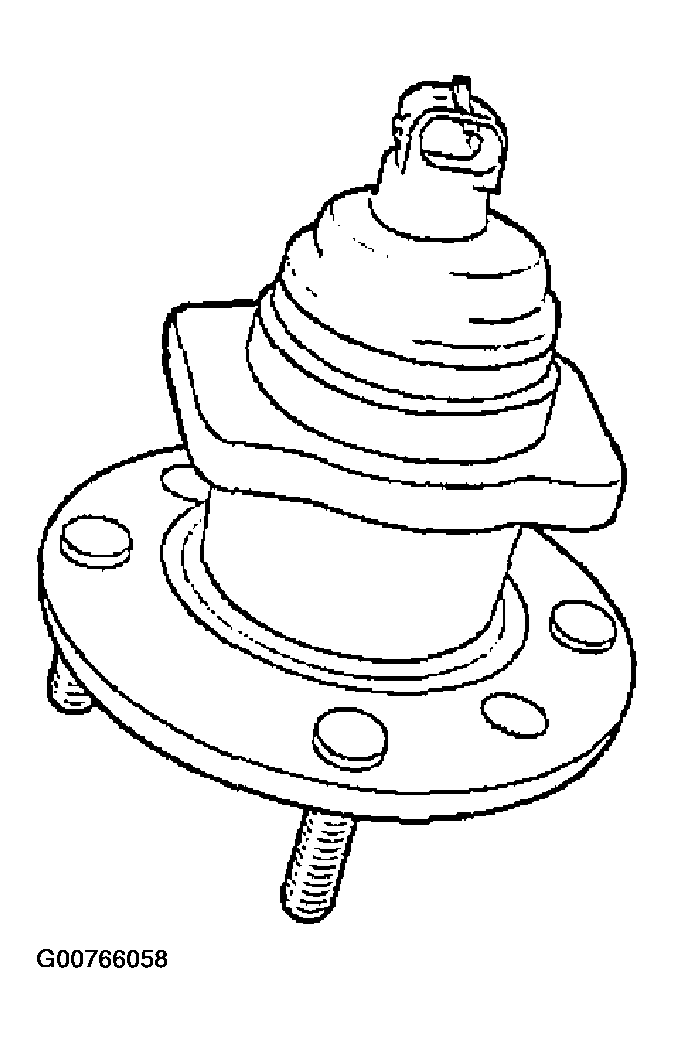

Fig 2: Removing The Rear Hub Unit From The Knuckle Assembly

Courtesy of SUZUKI OF AMERICA CORP.
